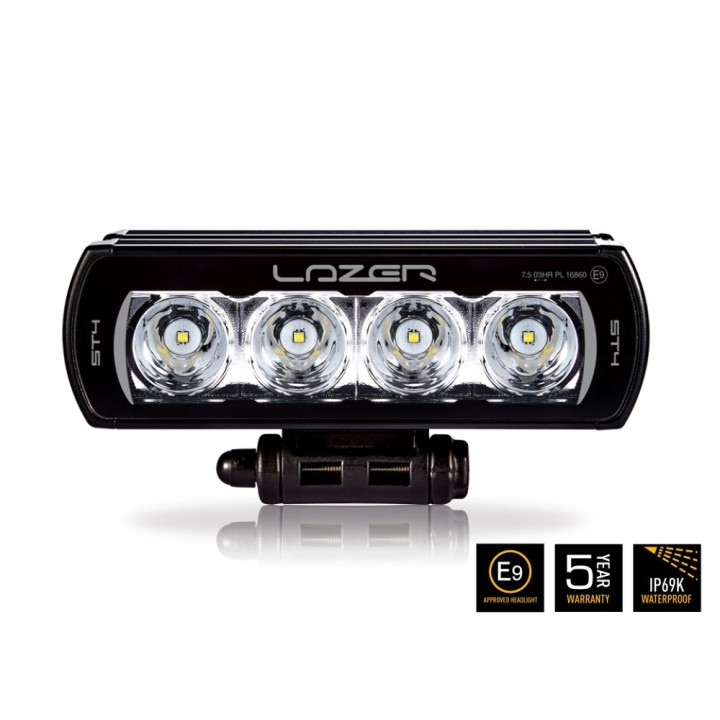

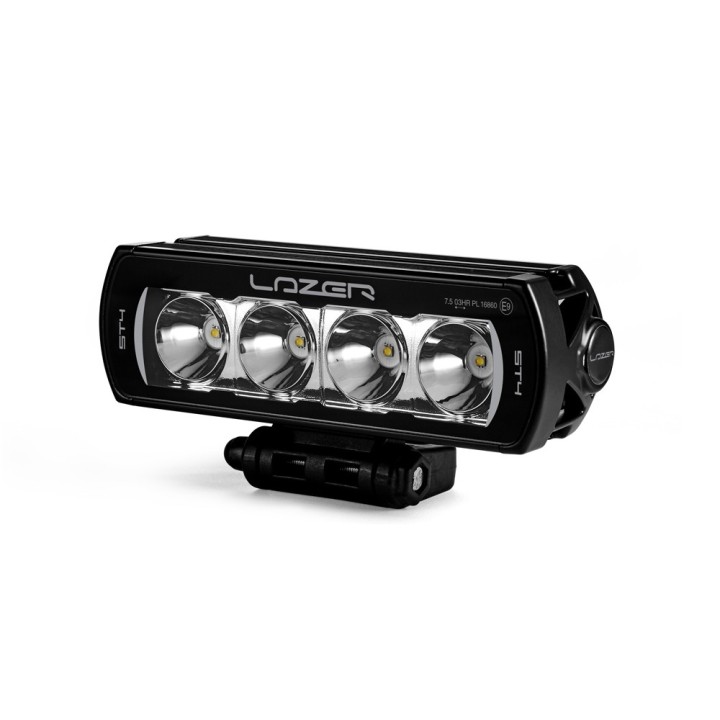

LAZER ST4 Evolution - black

On an unlit road what matters is not the number on the box but how far ahead you can see the edge of the tarmac. This lamp lights it to 555 m on the 0.25 lx line.

The manufacturer quotes 4,136 lm of output, 204mm wide, 0.67 kg. ECE R112 - Ref: 10 approval means the lamp is homologated as a driving light, not restricted to off-road use.

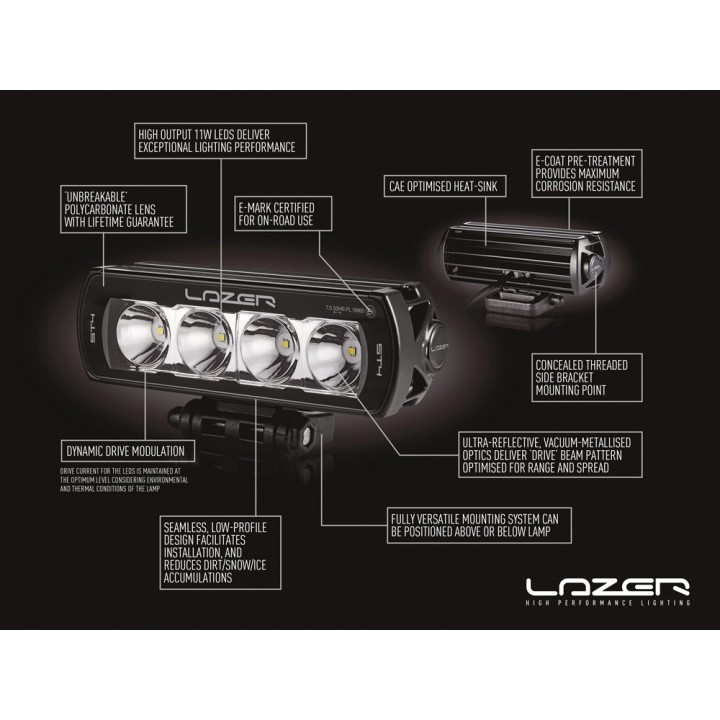

Key features

• High density, premium ‘bin’ 11W LED technology
• 5000 K LED colour temperature and 80CRI maximises sharpness and definition
• Ultra-reflective, vacuum-metallised conical optics deliver excellent spread
• Seamless, low profile design facilitates installation and avoids dirt/ice accumulation.

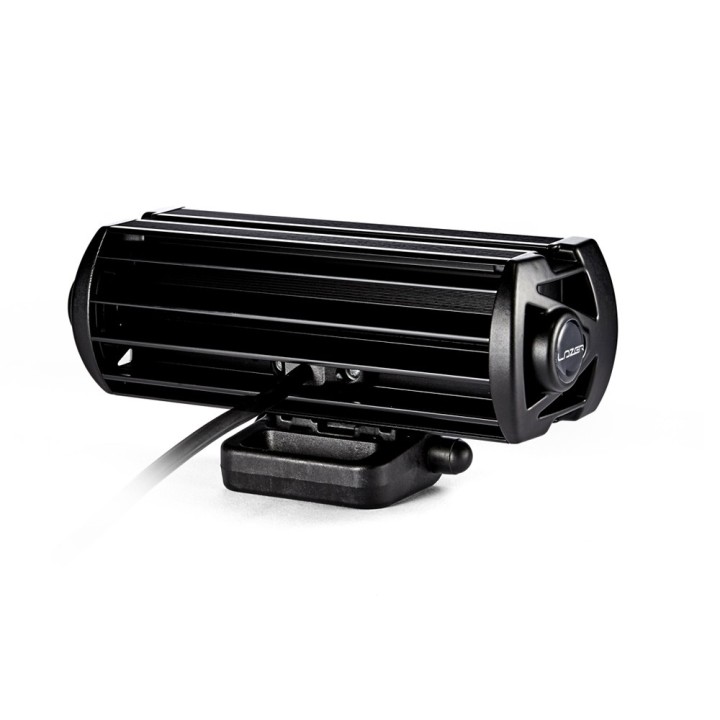

• Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 112 Class B Driving Lights for on-road high beam function
• UNECE approved Reg 10
• IP68 watertight
• 5 year warranty
• Supplied with pre-wired male/female 2-pin superseal connectors
• Designed and manufactured in UK

What is in the box

• x1 ST4 Evolution LED Spotlight
• x1 Centre Mount (1114 K)
• x1 Installation Instructions

Technical data

• Luminous flux: 4,136 lm
• Driver 'FOV' flux: 2,490 lm
• Colour temperature: 5000 K
• Number of LEDs: 4
• Power consumption: 47 W
• Current draw: 3.3 A
• Peak current draw: 5.5 A
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 0.67 kg

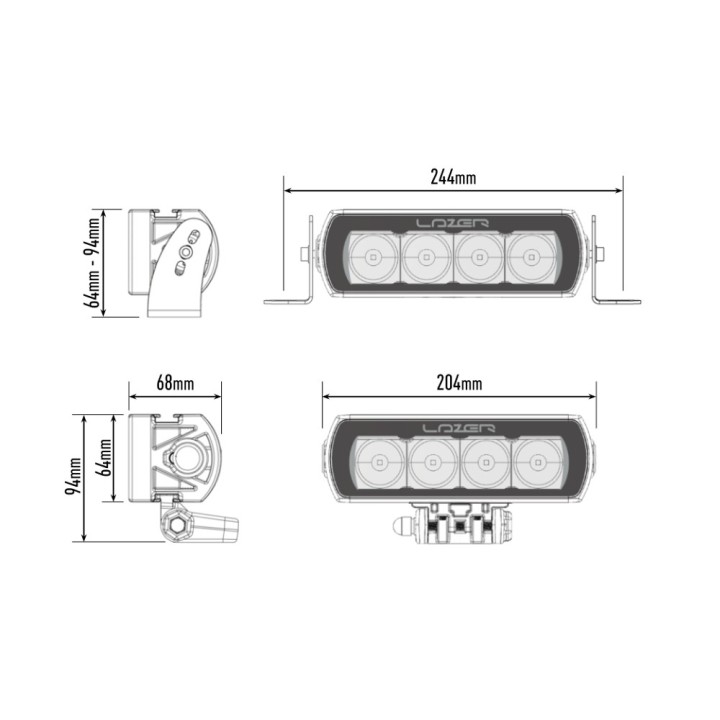

• Width: 204mm
• Depth: 68mm
• Height: 64mm
• Horizontal beam angle: 40°
• Vertical beam angle: 25°
• Connector: 2-Pin Superseal (+25cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R112 - Ref: 10
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2

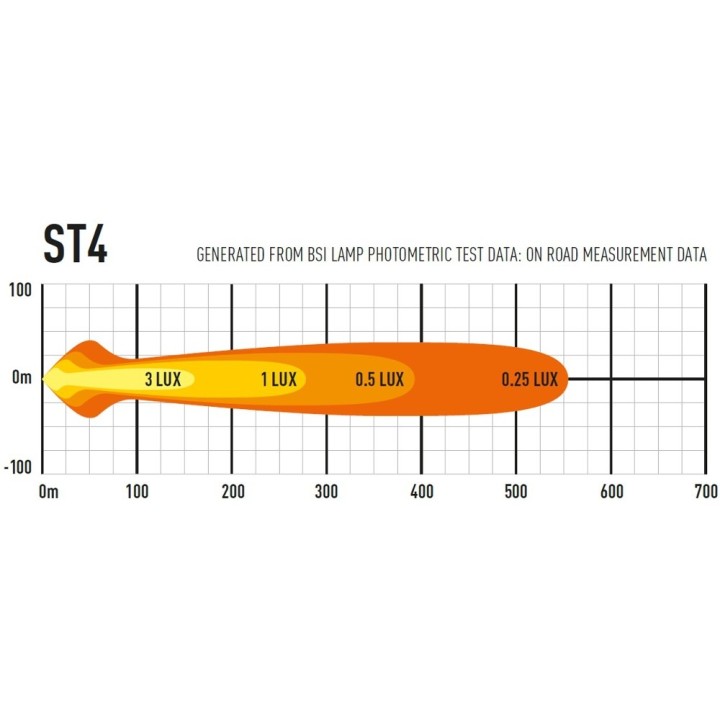

Beam range

Who it is for

A general-purpose bar for bumpers, bull bars and roof rails.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 2-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

ECE R112 - Ref: 10 approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

Why it is worth it

• 4,136 lm of output and 555 m of range on the 0.25 lx line
• ECE R112 - Ref: 10 approval — a legal driving light
• IP68 ingress protection
• LAZER — designed and manufactured in the United Kingdom

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R112 - Ref: 10 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: x1 ST4 Evolution LED Spotlight, x1 Centre Mount (1114K), x1 Installation Instructions.

How far does it throw?

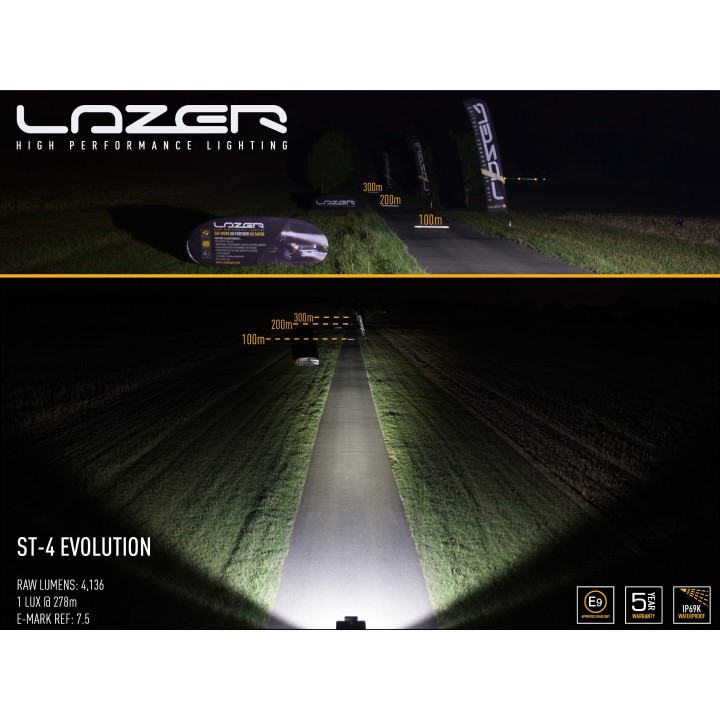

The manufacturer quotes 555 m on the 0.25 lx line, 393 m at 0.5 lx and 278 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 47 W, i.e. 3.3 A at 14.4 V.
