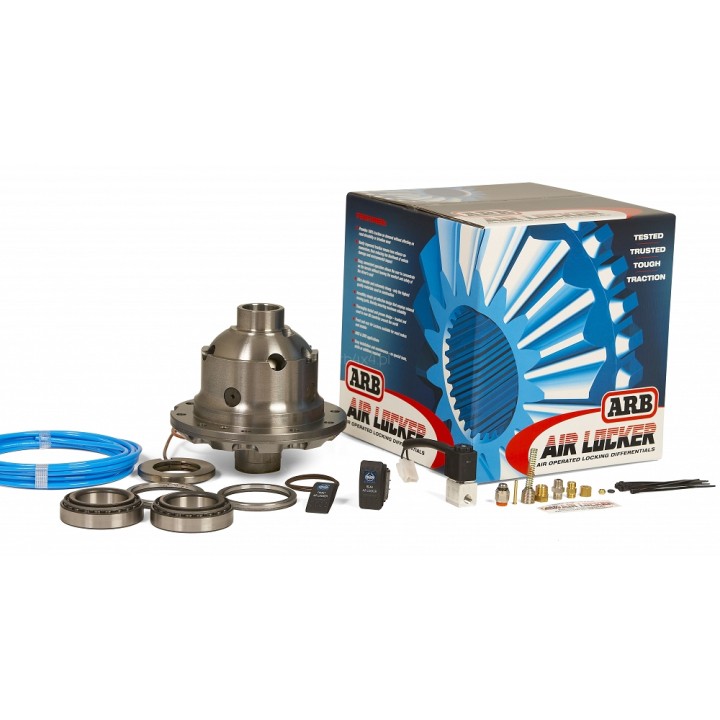

ARB Air Locker RD219 - Ford Ranger / Raptor

The ARB Air Locker RD219 is an air operated locking differential for the T6 Ranger/BT50, FR, 29 SPL axle. An Air Locker is matched to the axle, not to the car model, so axle type, axle shaft spline count decide which model fits. The list below comes straight from the ARB application chart.

Key features

• ARB part number: RD219
• Axle: T6 Ranger/BT50, FR, 29 SPL
• Axle shaft splines: 29
• Ratio range: All

Fitment per the ARB application chart

• Ford F100/150 Pickup, E100/150 Van (2WD), Bronco, Transit Van, 2021 on – front axle (Welded OE Ring Gear)
• Ford Explorer, Ranger (US), Aerostar (2WD), 2019 on – front axle (IFS,29 spline,aluminium,clamshell type)
• Ford Courier, Ranger (Thai), Raptor (Aus), 2012 on – front axle (IFS,29 spline,cast iron,clamshell type)
• Ford Everest, 2015 on – front axle (IFS,29 spline,clamshell type)
• Mazda BT-50 (Thai), 2012-20 – front axle (IFS, 29 spline, clamshell type)
• Volkswagen Amarok, 2022 on IFS – front axle (,29 spline,aluminium,clamshell type)

Specifications

• ARB part number: RD219

Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.

Frequently asked questions

How do I know which locker fits my vehicle?

By axle type and axle shaft spline count, and for some axles also by the ring and pinion ratio. The model year alone is not enough – the same model was built with different axles.

Do I need an air compressor?

Yes. An Air Locker runs on compressed air, so a compressor and a switch kit are required.

Not sure which axle your vehicle has? Get in touch – we will check the ARB chart by spline count and ratio, and we can fit the locker for you.
