EFS4WD
Reference: SBK127
EFS Elite shock absorber bush kit, rear — Nissan Patrol Y60 / Y61 Pick Up
Shocks
Bush kit for the EFS 36-5526 Elite rear shock absorber, specified for a 2 inch (50 mm) lift on the Nissan Patrol Y60 and Y61 pickup. Contains the eye bush, two stud bushes, cupped washers and a nyloc nut.
EFS Elite shock absorber bush kit, rear — Nissan Patrol Y60 / Y61 Pick Up
A Patrol pickup rarely runs empty, and a leaf-sprung rear end feeds loads into the shock mounts that no passenger car ever sees. The rubber hardens and splits, and then every kerb gives you a dull thud from the back.
This kit rebuilds the mounting of the EFS 36-5526 Elite rear shock, specified for a 2 inch (50 mm) lift on the Y60 and Y61 Patrol pickup.
Fits EFS 36-5526 shock (rear) | Range EFS Elite, 2 inch (50 mm) lift | Mounting stud–eye |
Key benefits
- Covers a mixed mount: both the eye end and the stud end of one damper.
- Cupped washers spread the nut load across the rubber instead of digging into it.
- A nyloc nut is included — the old one rarely survives removal.
- Tied to a single shock number, so no measuring diameters or thicknesses.
- A small outlay instead of a new damper when the shock body is still healthy.

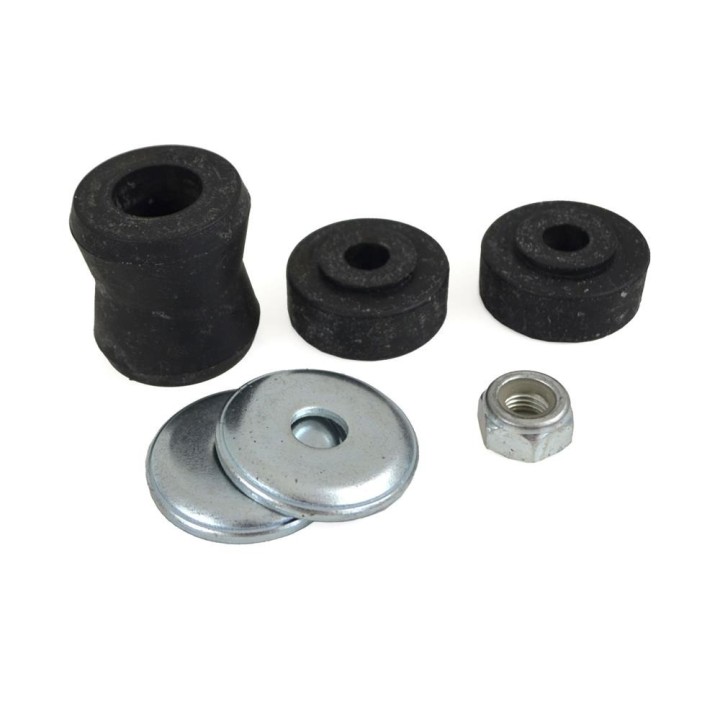

What is in the kit
- Rubber eye bush
- Two rubber stud bushes
- Cupped washers
- Nyloc nut
Technical data
- EFS part number: SBK127
- EAN: 5905247914743
- Fits shock absorber: EFS 36-5526
- Shock range: EFS Elite, heavy duty rear, 2 inch (50 mm) lift
- Shock mounting type: stud–eye
- 36-5526 shock dimensions: 640 x 383 mm
- Shock applications: Nissan Patrol Y61 pick up (coil front, leaf rear) and Nissan Patrol Y60 pick up (leaf front and rear)
- Manufacturer: EFS 4WD (Australia)
Who it is for
For Patrol pickup owners on EFS Elite suspension who carry weight or tow and hear knocking from the rear mounts at low speed over rough ground.
And for anyone servicing the suspension before a long trip — shock mounts are the part most often overlooked.
Fitting and notes
Unload the axle and release the damper at both ends. The rubber parts go back in the factory order, and the nyloc nut is tightened until the washer seats fully on the bush.
The Szekla4x4.pl off-road workshop can do the swap alongside a check of the leaf packs, U-bolts and dampers — on a pickup these wear together.
Why buy it
- A complete shock mount in one box
- Genuine EFS service part for shock 36-5526
- A simple way to quieten a leaf-sprung rear end
Running EFS 36-5526 dampers on your Patrol pickup? Get the bush kit in before the season starts.
Frequently Asked Questions
Which shock does this kit fit?
The EFS 36-5526 Elite rear shock absorber, specified for a 2 inch (50 mm) lift.
Which Patrols use this damper?
The Nissan Patrol Y61 pick up (coil front, leaf rear) and the Nissan Patrol Y60 pick up (leaf front and rear).
What exactly is in the box?
A rubber eye bush, two stud bushes, cupped washers and a nyloc nut.
What are the 36-5526 dimensions?
The product card gives 640 x 383 mm with a stud–eye mounting.
