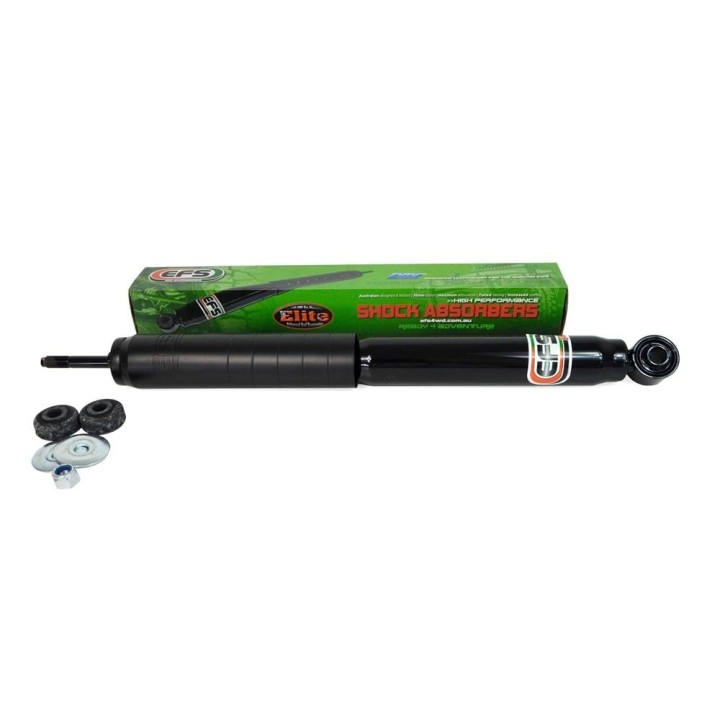

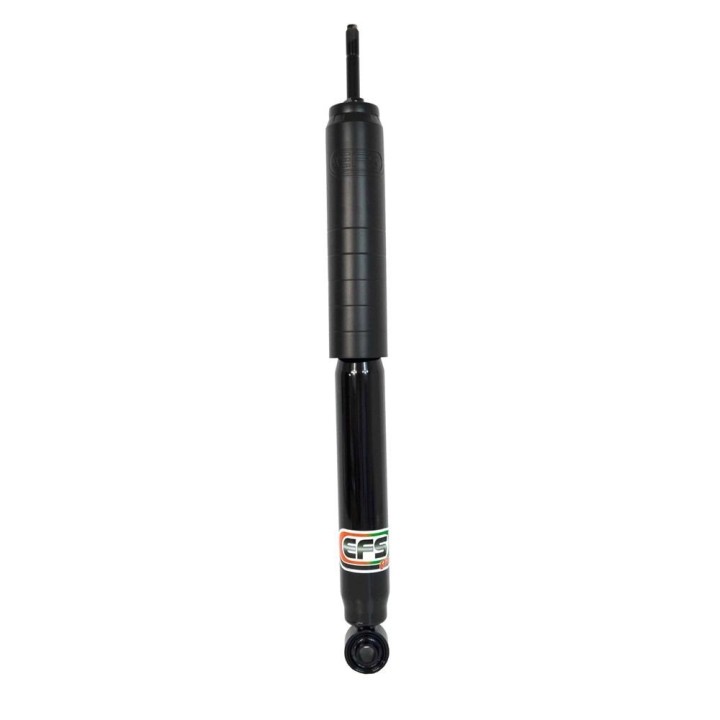

EFS Elite Rear Shock Absorber, 50 mm Lift - Toyota Land Cruiser 300 without KDSS
EFS Elite rear damper for the Toyota Land Cruiser 300 in versions without KDSS, matched to a 50 mm lift. It measures 645 x 410 mm pin to eye and runs a 35 mm piston in a nitrogen-charged twin-tube body. Five-year unlimited-mileage warranty.
EFS Elite Rear Shock Absorber, 50 mm Lift - Toyota Land Cruiser 300 without KDSS
The Land Cruiser 300 leaves the showroom tuned for comfort. Add a roof rack, drawers and a full auxiliary tank and the rear axle starts behaving in ways the engineers did not plan for - and after a lift the factory damper is too short for the job as well.
Elite in this length is matched to a 50 mm lift and valved for a loaded vehicle rather than for the school run.
Application Toyota Land Cruiser 300 without KDSS | Lift 2" / 50 mm | Dimensions 645 x 410 mm, pin to eye |
Key benefits
- Version for models without KDSS - the source explicitly excludes vehicles fitted with that system, so selection is unambiguous.
- 645/410 mm length for a 50 mm lift - the rear axle regains full travel after the lift.
- 35 mm piston in a 51-60 mm body - the oil reserve that keeps damping alive over a long gravel stage instead of letting it fade.
- Low-pressure nitrogen limits cavitation, the sudden loss of damping in a hot shock.
- 16 mm hardened chrome rod - resistant to the stone scoring that ends in a leak.
- 1.5 mm wall in both tubes - a body built for the mass and loads of this class of vehicle.
- DMC-T valving - one damping character on the highway, another in ruts, with no switch to operate.
Technical data
| Fitting position | rear |
| Lift | 2" (50 mm) |
| Dimensions | 645 x 410 mm (pin to eye) |
| Application | Toyota Land Cruiser 300, models without KDSS |
| Manufacturer | EFS 4WD (Australia) |
| Product line | Elite |
| Body outer diameter | 51-60 mm |
| Piston | 35 mm |
| Piston rod | hardened chrome, 16 mm diameter |
| Construction | twin-tube, low-pressure nitrogen |
| Wall thickness | 1.5 mm - outer and inner tube |
| Valving | DMC-T (Dynamic Motion Control Technology) |
| Warranty | 5 years, unlimited mileage |
Who it is for
For LC300 owners building a touring rig: rack, canopy, extra tanks, a trailer. A sound choice wherever a 50 mm lift has left the factory dampers behind and you are not ready to move straight to remote-reservoir units.
Fitting and notes
- The distributor page describes a single damper - you need two for the rear axle.
- This damper is only for versions without KDSS, a condition stated explicitly in the description.
- The 645 x 410 mm figures are given pin to eye.
Why it is worth it
- Unambiguous fitment: a specific LC300 version and a specific lift height.
- Heavy-duty construction instead of a factory compromise.
- Five-year warranty with no mileage limit.
After a lift on an LC300 this is one of the parts that most quickly changes how the truck behaves under load.
Frequently Asked Questions
Does it fit an LC300 with KDSS?
No. The distributor description covers models without KDSS only.
What lift is it intended for?
The distributor states 2 inches, that is 50 mm.
What are the dimensions and mounting?
645 x 410 mm pin to eye, according to the distributor description.
Is this one damper or a pair?
The distributor page describes a single damper - two are needed for the rear axle.
What warranty applies?
Five years with no mileage limit, as stated by the distributor.
