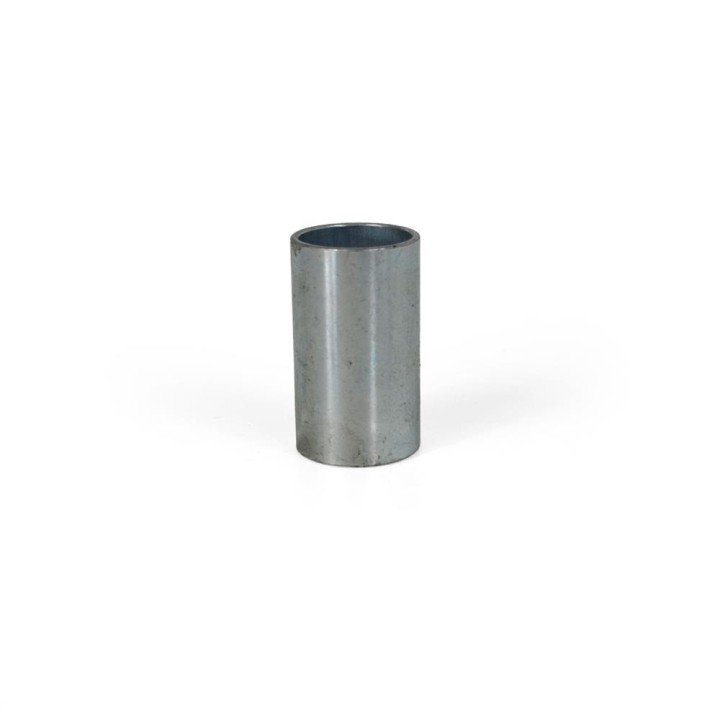

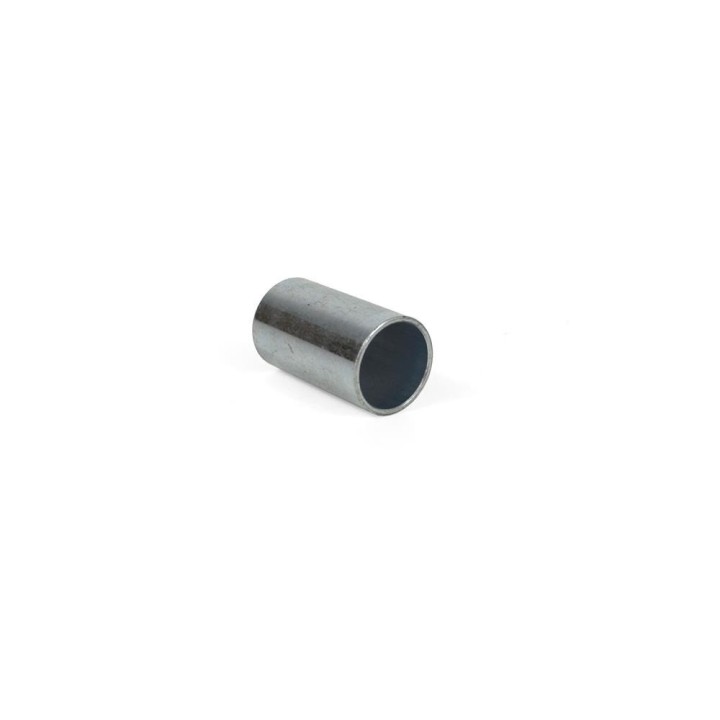

EFS Metal Shock Absorber Sleeve 19 x 22 x 38 mm — Upper, for Damper 36-5533
Metal shock absorber sleeve, 19 x 22 x 38 mm, specified as the upper sleeve for damper 36-5533. It carries the clamping load of the mounting bolt, holds the spacing inside the mount and protects the elastic parts from being crushed. A small part, but a mount rebuild is not complete without it.
EFS Metal Shock Absorber Sleeve 19 x 22 x 38 mm — Upper, for Damper 36-5533
A metal sleeve is the part you only think about when it is missing from the box halfway through a suspension rebuild. It works inside the shock mount: it carries the clamping load of the bolt, holds the correct spacing and stops the soft parts from being crushed.
This item measures 19 x 22 x 38 mm and is specified for the upper mount of damper 36-5533.
Material Metal | Dimensions 19 x 22 x 38 mm | Position Upper, damper 36-5533 |
Key benefits
- A metal sleeve does not squash under torque, so the mounting bolt can be tightened to the correct figure without crushing an elastic part.
- It holds its dimension for its whole service life — it does not settle or shift the mounting geometry.
- It guides the bolt or pin precisely in the shock eye, limiting play and stopping the hole from wearing oval.
Technical data
- Type: metal shock absorber sleeve
- Dimensions: 19 x 22 x 38 mm
- Fitting position: upper
- Application: damper 36-5533
- Part number: EBT192238
Who it is for
For owners and workshops rebuilding the upper mount on damper 36-5533. If the sleeve comes out seized, oval or corroded once the bolt is undone, replacing it is cheaper and quicker than fighting play that will keep coming back.
Fitting notes
This part is listed as the upper sleeve — the lower mount on the same damper may take a different size, so measure both before ordering. Replace it together with the elastic part so the whole mount has the same service age.
Why it is worth it
- An unambiguous match to damper 36-5533 in the upper position.
- A confirmed 19 x 22 x 38 mm dimension — no eyeballing.
- A tiny cost that decides whether the mount torques up correctly.
Rebuilding the mount? Take the sleeve along with the elastic parts and close the job in one go.
Frequently Asked Questions
Which damper does this sleeve fit?
The distributor's page lists it as the upper sleeve for damper 36-5533.
What are the dimensions?
19 x 22 x 38 mm.
Does it fit the lower mount?
The page describes this item as the upper sleeve only. Measure the lower one before ordering — the same range also offers 16 x 19 x 38 mm and 12 x 16 x 36 mm.
Why is there a metal sleeve in a shock mount?
It carries the clamping load of the bolt, holds the spacing in the mount and protects the elastic part from being crushed during tightening.
