EFS4WD
Reference: GR786
Leaf Springs

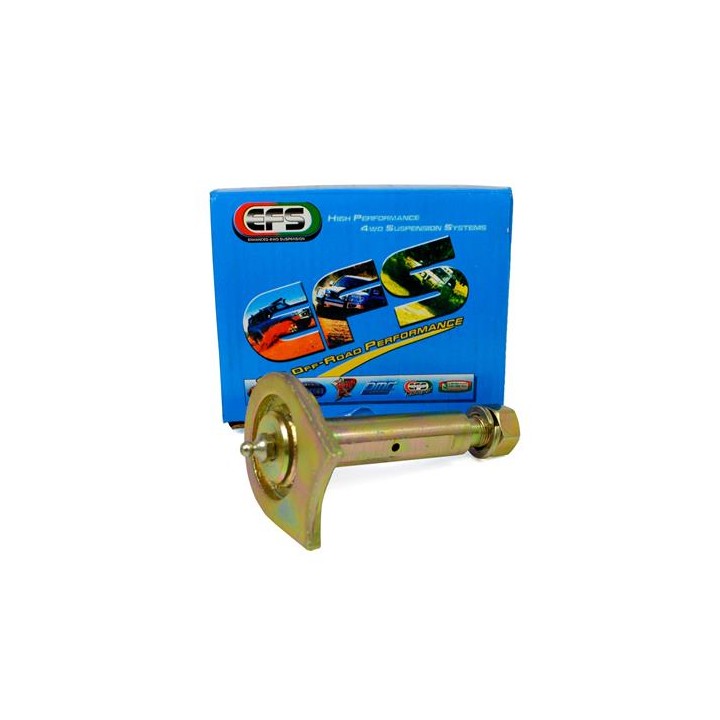

EFS Greasable Spring Bolt, M16 x 85 mm — Mitsubishi Canter
Greasable EFS spring bolt with a grease nipple for the Mitsubishi Canter. 85 mm internal length, 22 mm diameter, M16 thread 27 mm long. Hardened carbon steel with a gold-cadmium alloy coating. Two pieces are required per vehicle.
EFS Greasable Spring Bolt, M16 x 85 mm — Mitsubishi Canter
On a light truck that runs loaded every day, the spring mount works harder than on any weekend four-wheel drive. The factory bolt cannot be greased, so the bush wears and the bolt itself can seize solid inside it.
This EFS bolt has a grease nipple, so grease goes straight into the bush contact points. Hardened carbon steel with a gold-cadmium alloy coating covers strength and corrosion resistance. Two pieces are required per vehicle.
Internal length 85 mm | Diameter 22 mm | Thread M16, 27 mm long |
Key benefits
- A grease nipple carries grease into the bush contact points, cutting wear and the risk of a seized bolt.
- Published dimensions: 85 mm internal length, 22 mm diameter, M16 thread 27 mm long — check the fit before you buy.
- Hardened carbon steel with a gold-cadmium alloy coating for strength and corrosion protection.
- Built for the constant load a working light truck puts through its spring mounts.
Technical data
- Type: greasable spring bolt
- Internal length: 85 mm
- Diameter: 22 mm
- Thread: M16, thread length 27 mm
- Quantity required: 2 per vehicle
- Material: hardened carbon steel
- Coating: gold-cadmium alloy
- Application: Mitsubishi Canter
- Manufacturer: EFS (Australia)
- Part number: GR786
- EAN: 5905247916099
A sensible choice for a workshop or for a Canter owner who would rather fit a serviceable mount once than cut out a seized bolt every few years. Compare the published dimensions with your vehicle before ordering.
EFS spring hangers and shackle bolts are made from hardened carbon steel with a gold-cadmium alloy coating — protection that matters in a spot which spends the year in water, salt and mud. The grease nipple lets you push grease exactly where the bush works.
Fitment notes
Two pieces are required per vehicle. Grease through the nipple after fitting and add it to the service routine. The easiest time to change them is during a spring or bush replacement, when the mount is already apart. The Szekla4x4 workshop can confirm the fit from the dimensions.
Why it is worth it
- Real dimensions instead of a vague universal-spring-bolt description.
- A greasable design that genuinely extends bush life on a working vehicle.
- Three-year or 100,000 km warranty.
Planning a suspension service on a Canter? Order the pair at the same time.
Frequently Asked Questions
What are the dimensions?
85 mm internal length, 22 mm diameter, M16 thread 27 mm long.
How many are needed per vehicle?
Two.
Which vehicle does it fit?
The Mitsubishi Canter.
What is it made of?
Hardened carbon steel with a gold-cadmium alloy coating for strength and corrosion resistance.
What warranty applies?
Three years or 100,000 km.
