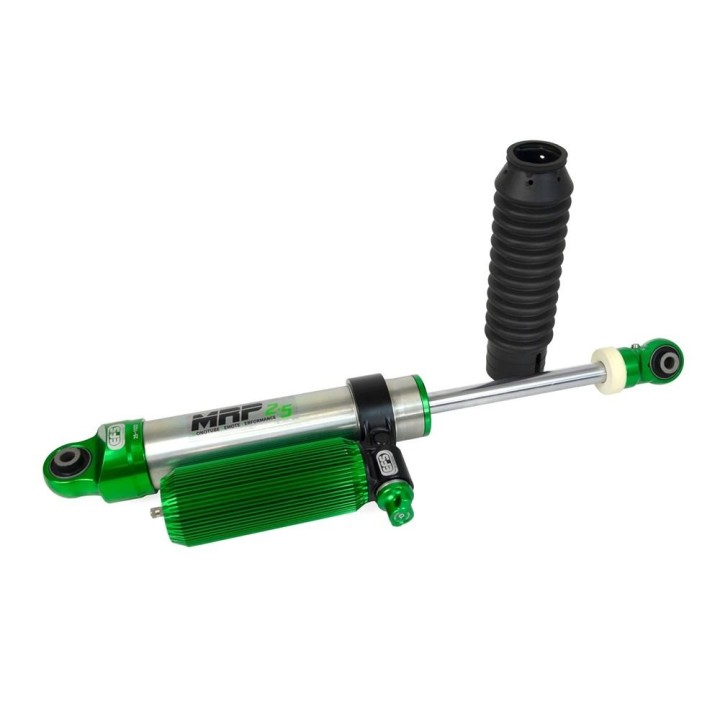

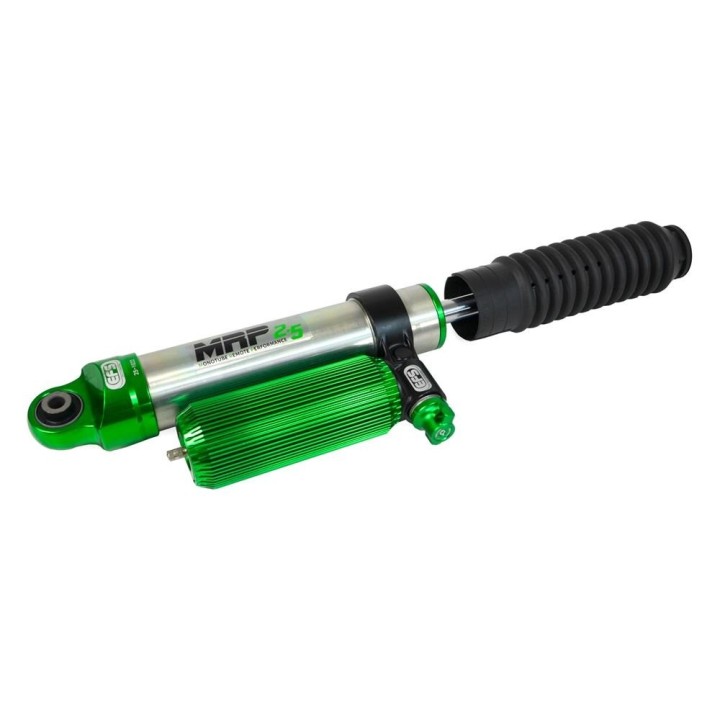

EFS MRP 2.5 Rear Shock Absorber, 25 mm Lift - VW Amarok 2010-2023

Not every Amarok needs to sit noticeably higher. Sometimes the goal is simpler: stop the rear squatting under load and skating over broken roads, while keeping the truck civilised on tarmac.

This MRP 2.5 rear damper offers a modest 25 mm lift together with full damping adjustment. It is the option for drivers who want a real improvement in suspension behaviour without rebuilding the whole vehicle.

Key benefits

• Two independent adjustment ranges - 24 compression clicks handle the hit, 36 rebound clicks handle the return.
• Additional finned reservoir - extra oil and cooling exactly where a standard damper starts to give up.
• Aluminium body, monotube layout - a thicker shaft and predictable damping under a load.
• Full serviceability - seals and oil are replaceable instead of the whole damper.
• Shaft boot and bonded bushes in the box - no small parts to chase.

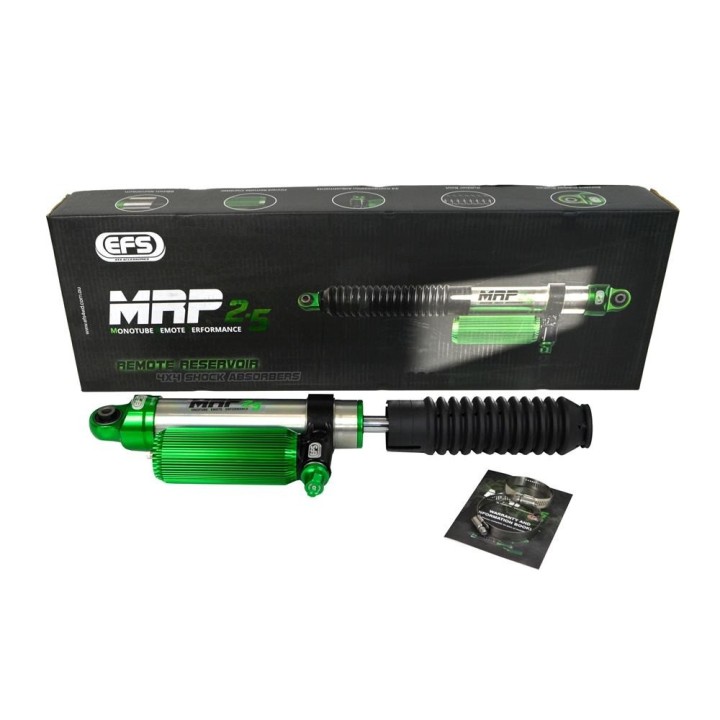

What is in the box

• MRP 2.5 damper with a hose-mounted remote reservoir
• rubber shaft boot
• steel reservoir bracket
• hose clamps and mounting hardware
• instruction sheet with the registration QR code

The listing covers one damper. A complete axle needs two.

Specifications

• Manufacturer: EFS 4WD (Australia)
• Line: MRP 2.5 (Monotube Remote Performance)
• Fitting position: rear
• Suspension lift: 1" (25 mm)
• Adjustment: 24 compression clicks, 36 rebound clicks
• Reservoir: remote, finned, hose mounted
• Dimensions quoted by the distributor: 585 x 375 mm
• Weight: 6 kg (manufacturer data)
• Packed dimensions: 83 x 28 x 14 cm (manufacturer data)
• Application: Volkswagen Amarok 4-cylinder, 2010 - 05/2023; Volkswagen Amarok V6 diesel, 2016 - 05/2023
• EFS part number: 25-1022
• EAN: 5905247917188

Who it is for

For first generation Amaroks used for work and recreation: a canopy on the tray, a tow bar, plenty of gravel. A modest 25 mm lift suits owners who want to keep the geometry close to standard and the daily ride comfortable.

Fitment notes

The manufacturer lists this part for the 4-cylinder Amarok from 2010 to 05/2023 and the V6 diesel Amarok from 2016 to 05/2023. The distributor quotes the V6 as 11/2016-2022 and the 4-cylinder as 2010 onwards. The new NF Amarok from 2023 takes a different part number.

Fitting and tuning

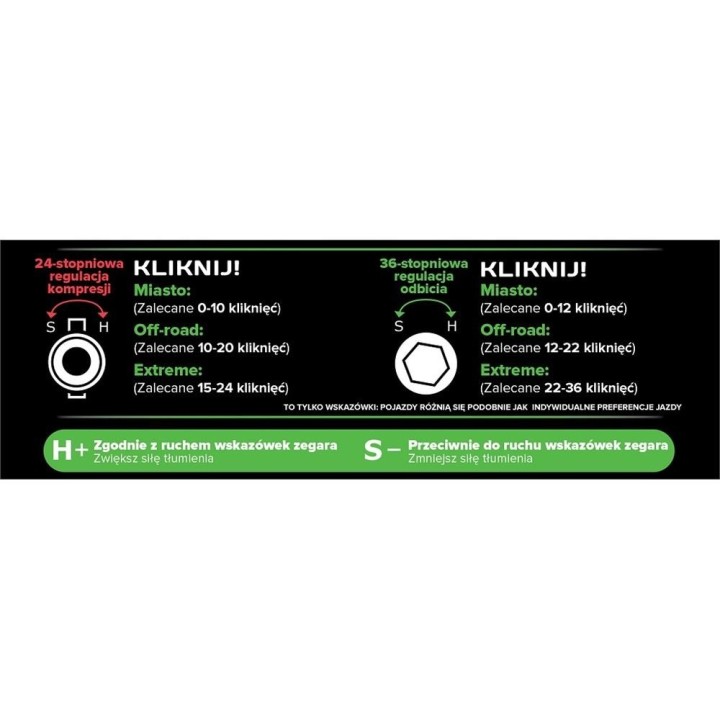

Damping is set with two knobs: 24 clicks of compression and 36 clicks of rebound. Clockwise (marked H+) adds damping, counter-clockwise (S-) takes it away. The manufacturer gives starting points: 0-10 compression and 0-12 rebound clicks for town use, 10-20 and 12-22 off-road, 15-24 and 22-36 for extreme driving. Treat them as a baseline - load and driving style will move them.

The reservoir mounts on the supplied bracket and clamps, somewhere protected from impacts. Our workshop can handle selection, fitting and the later rebuild.

Warranty and registration

The distributor states a 2-year or 100,000 km warranty which can be extended to 6 years in total. The condition: register the damper with the manufacturer after purchase (QR code in the instruction sheet), then carry out and report a service before 2 years / 100,000 km, and a second one before the next 2 years / 50,000 km. Each reported service adds another 2 years and 50,000 km of cover.

Why it is worth it

• Compression and rebound adjusted independently - tune for the load and the terrain.
• The extra finned reservoir holds damping together on long, fast sections.
• Built to be rebuilt, with cover extendable to 6 years.

Not sure whether 25 mm is enough for your load? Message us and we will help you choose.

Frequently Asked Questions

Which Amarok versions does it fit?

The 4-cylinder Amarok from 2010 to 05/2023 and the V6 diesel Amarok from 2016 to 05/2023.

Does it fit the new Amarok from 2023?

No. The new NF generation uses a different part number.

How much lift does it give?

1 inch, 25 mm - the lowest lift in this series.

What are the dimensions?

The distributor quotes 585 x 375 mm.

Is the damper serviceable?

Yes, it is fully strippable, and a documented service extends the warranty.
