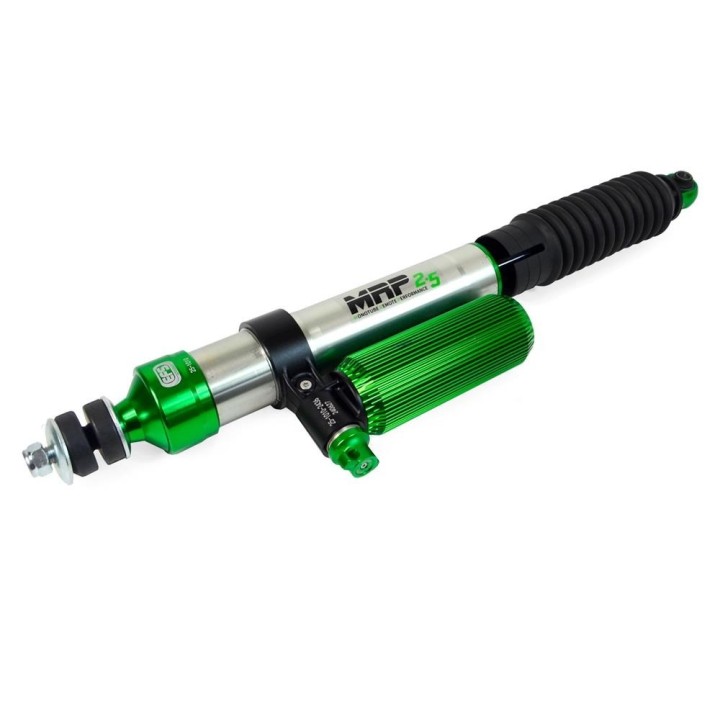

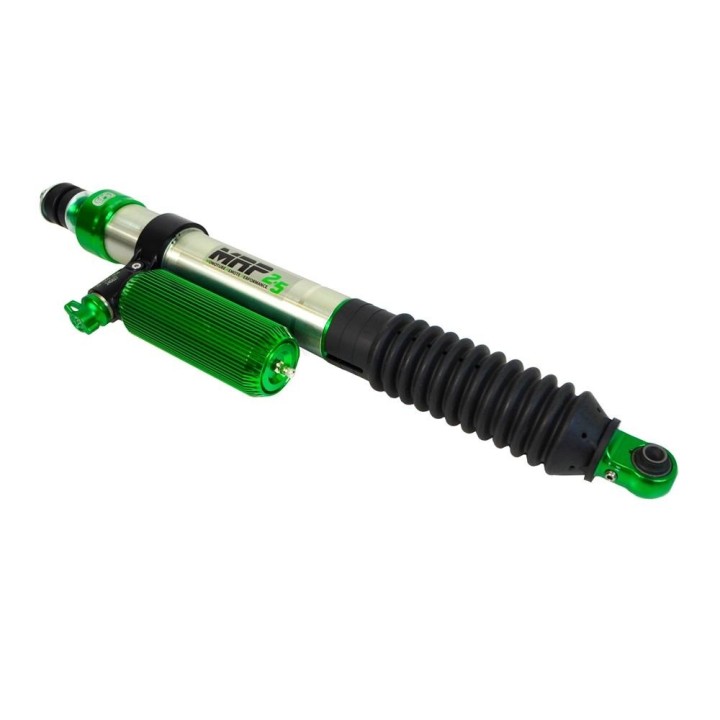

EFS MRP 2.5 Rear Shock Absorber, 50 mm Lift - RAM 1500 DT from 2019

A RAM 1500 DT is in its element on the highway. The trouble starts on gravel and forest tracks: the long wheelbase, the mass and comfort-biased factory damping leave the rear floating and pumping instead of working.

The MRP 2.5 rear damper changes that. It lifts the rear by 50 mm, cools the oil in a finned remote reservoir and lets you set compression and rebound separately, rather than living with one factory compromise.

Key benefits

• Remote finned reservoir - the oil has somewhere to dump heat, so damping does not vanish after a dozen kilometres of corrugations.
• 24 compression and 36 rebound clicks - 60 settings instead of one factory compromise.
• Monotube with an oversized shaft - more working area and calmer behaviour at full load.
• Rebuildable construction - the damper was designed to be serviced, not replaced.
• Bonded rubber bushes and a shaft boot come with every unit.

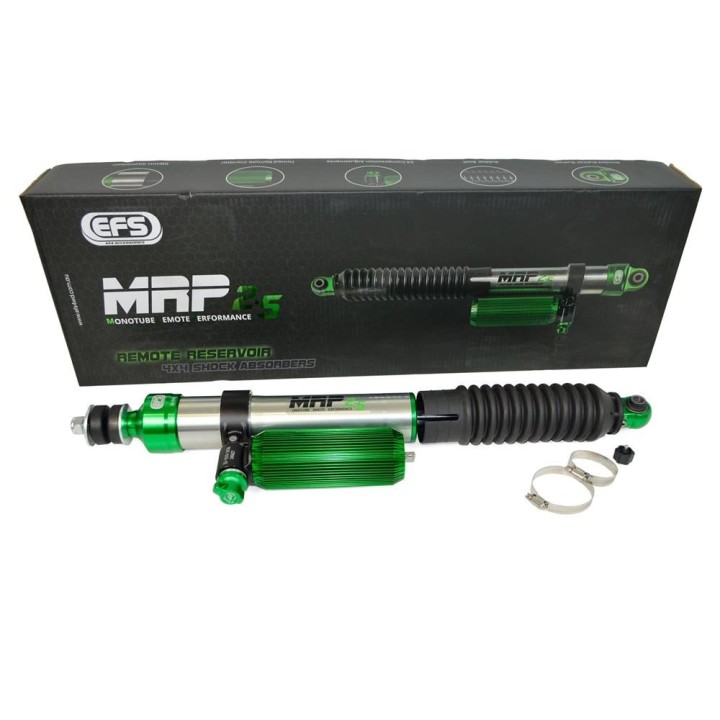

What is in the box

• MRP 2.5 damper with a hose-mounted remote reservoir
• rubber shaft boot
• steel reservoir bracket
• hose clamps and mounting hardware
• instruction sheet with the registration QR code

The listing covers one damper. A complete axle needs two.

Specifications

• Manufacturer: EFS 4WD (Australia)
• Line: MRP 2.5 (Monotube Remote Performance)
• Fitting position: rear
• Suspension lift: 2" (50 mm)
• Adjustment: 24 compression clicks, 36 rebound clicks
• Reservoir: remote, finned, hose mounted
• Dimensions quoted by the distributor: 630 x 395 mm
• Weight: 6 kg (manufacturer data)
• Packed dimensions: 83 x 28 x 14 cm (manufacturer data)
• Application: RAM 1500 DT 3.0 diesel and 5.7 V8 petrol from 01/2019
• EFS part number: 25-1010
• EAN: 5905247917157

Who it is for

For RAM 1500 DT owners who genuinely use the tray and the tow bar: hauling gear, pulling a trailer, or covering enough unsealed road that the factory dampers start to give up. It also suits trucks carrying a camper build.

Fitting and tuning

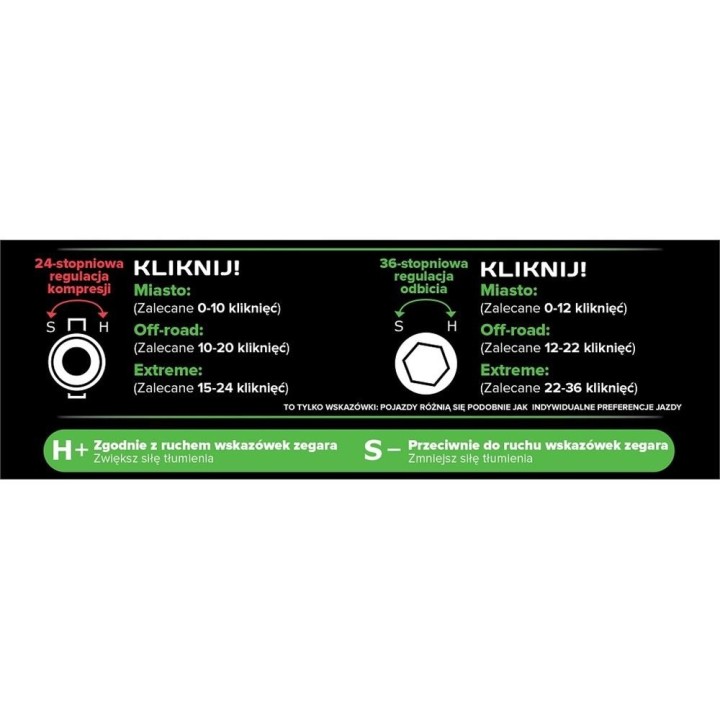

Damping is set with two knobs: 24 clicks of compression and 36 clicks of rebound. Clockwise (marked H+) adds damping, counter-clockwise (S-) takes it away. The manufacturer gives starting points: 0-10 compression and 0-12 rebound clicks for town use, 10-20 and 12-22 off-road, 15-24 and 22-36 for extreme driving. Treat them as a baseline - load and driving style will move them.

The reservoir mounts on the supplied bracket and clamps, somewhere protected from impacts. Our workshop can handle selection, fitting and the later rebuild.

Warranty and registration

The distributor states a 2-year or 100,000 km warranty which can be extended to 6 years in total. The condition: register the damper with the manufacturer after purchase (QR code in the instruction sheet), then carry out and report a service before 2 years / 100,000 km, and a second one before the next 2 years / 50,000 km. Each reported service adds another 2 years and 50,000 km of cover.

Why it is worth it

• 60 damping settings - one vehicle, several personalities.
• Oil cooling solved by hardware rather than by a marketing line.
• A serviceable design, so the cost of ownership spreads over years.

Planning a complete lift with springs and front dampers? Message us and we will put the package together for your load.

Frequently Asked Questions

Which RAM 1500 does it fit?

The DT generation from 01/2019, with the 3.0 diesel and the 5.7 V8 petrol engines.

How much lift is it designed for?

It is intended for a 2 inch, 50 mm lift.

What are the dimensions?

The distributor quotes 630 x 395 mm, without stating which figure is extended and which compressed.

Can the damper be serviced?

Yes, it is fully strippable and designed to be rebuilt.

How heavy is one unit?

The manufacturer gives 6 kg, packed at 83 x 28 x 14 cm.
