EFS4WD
Reference: 25-1018
Shocks
EFS MRP 2.5 Rear Shock Absorber, 75 mm - Land Cruiser 70, Patrol
Rear EFS MRP 2.5 damper. Application: Land Cruiser 76, 78 and 79 plus Patrol Y60/Y61. It is designed for a 3 inch (75 mm) lift. Monotube construction with a finned remote reservoir, fully rebuildable, adjustable through 24 compression and 36 rebound clicks. Dimensions quoted by the distributor: 700 x 435 mm.
EFS MRP 2.5 Rear Shock Absorber, 75 mm - Land Cruiser 70, Patrol
The rear axle of a 79 series or a coil sprung Patrol carries everything: boxes, water, fuel and gear. After 200 kilometres of corrugations the factory damper is glowing hot and the vehicle starts to float, even though nothing has actually broken.
The MRP 2.5 rear damper for a 75 mm lift solves that with hardware: a finned remote reservoir sheds heat, and two independent adjusters let you match the damping to the mass you really carry.
Application Land Cruiser 76, 78 and 79 plus Patrol Y60/Y61 | Lift 3" / 75 mm | Design Monotube with remote reservoir |
Key benefits
- Two independent adjustment ranges - 24 compression clicks handle the hit, 36 rebound clicks handle the return.
- Additional finned reservoir - extra oil and cooling exactly where a standard damper starts to give up.
- Aluminium body, monotube layout - a thicker shaft and predictable damping under a load.
- Full serviceability - seals and oil are replaceable instead of the whole damper.
- Shaft boot and bonded bushes in the box - no small parts to chase.

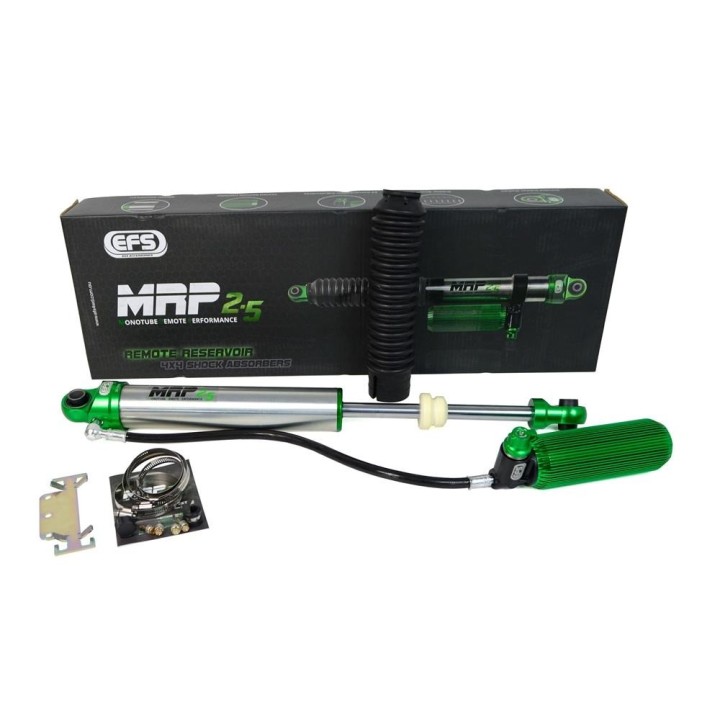

What is in the box

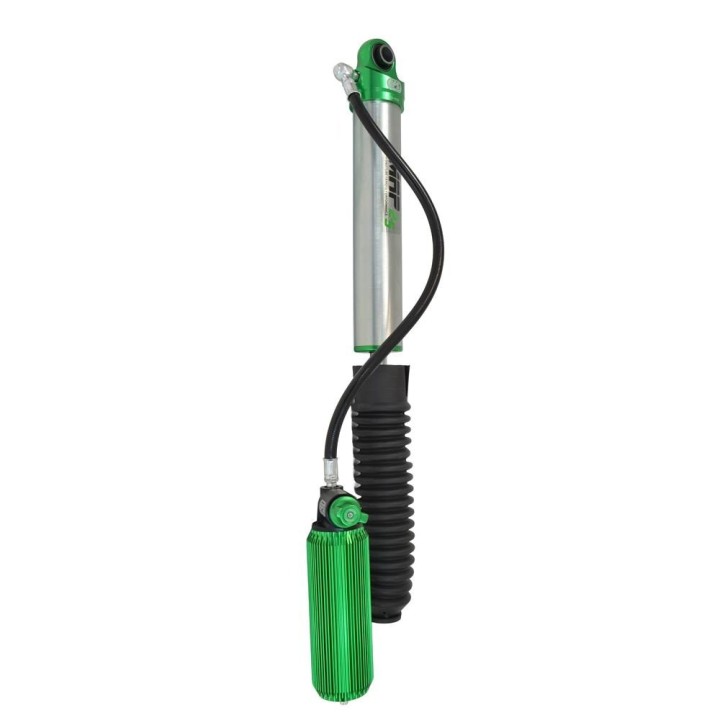

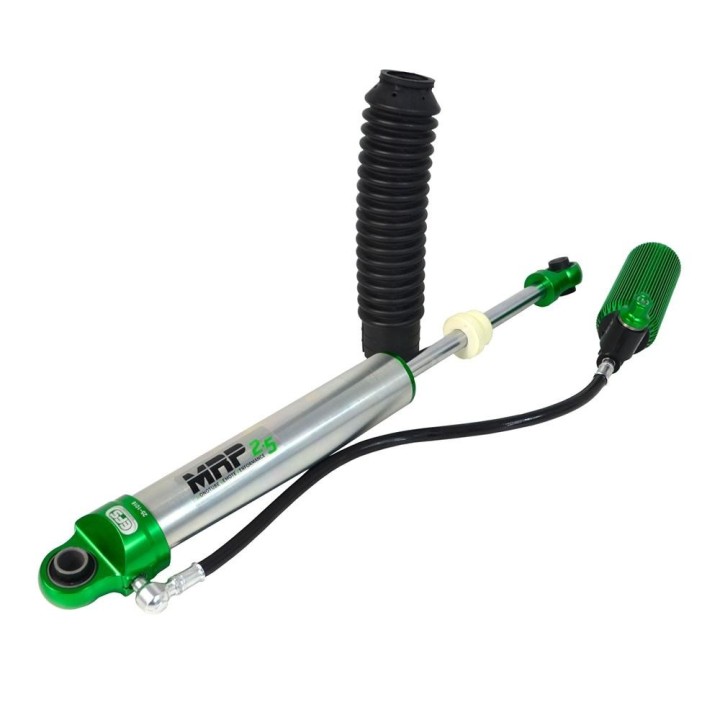

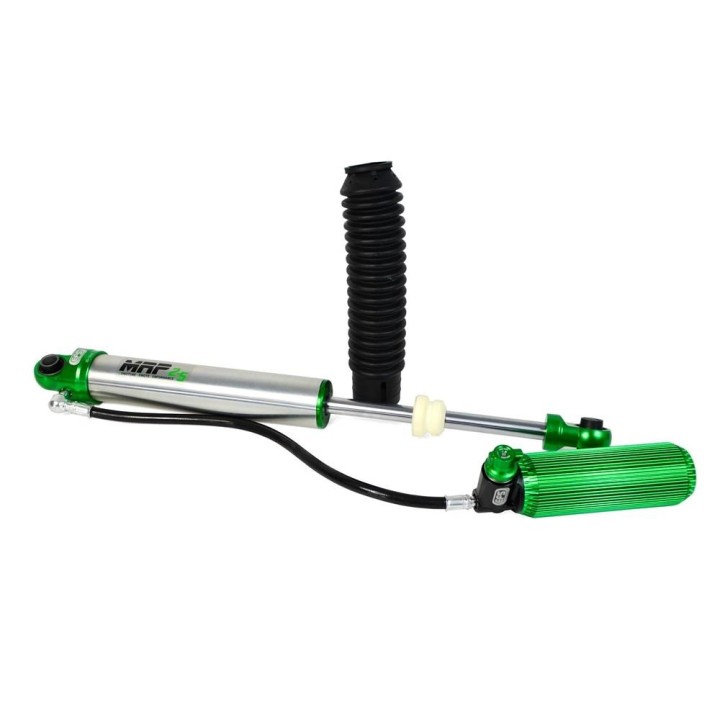

- MRP 2.5 damper with a hose-mounted remote reservoir
- rubber shaft boot
- steel reservoir bracket
- hose clamps and mounting hardware
- instruction sheet with the registration QR code
The listing covers one damper. A complete axle needs two.
Specifications
- Manufacturer: EFS 4WD (Australia)
- Line: MRP 2.5 (Monotube Remote Performance)
- Fitting position: rear
- Suspension lift: 3" (75 mm)
- Adjustment: 24 compression clicks, 36 rebound clicks
- Reservoir: remote, finned, hose mounted
- Dimensions quoted by the distributor: 700 x 435 mm
- Weight: 6 kg (manufacturer data)
- Packed dimensions: 83 x 28 x 14 cm (manufacturer data)
- Application: Toyota Land Cruiser 76 (VDJ76R Wagon) from 2007; Toyota Land Cruiser 78 (HZJ78 Troop Carrier 10/1999-2006, VDJ78R Troop Carrier from 2007); Toyota Land Cruiser 79 (HZJ79 Cab Chassis 10/1999-2006, VDJ79R Single Cab 2007-09/2016 and Dual Cab Chassis from 2007, GDJ79R Dual Cab from 09/2023 excluding manual transmission); Nissan Patrol GQ Y60 coil sprung (LWB, SWB manual, Cab Chassis); Nissan Patrol GU Y61 coil sprung (LWB, Cab Chassis)
- EFS part number: 25-1018
- EAN: 5905247917171
Who it is for
For touring and working live-axle vehicles on a 3 inch lift: 70 series Cruisers with a build on the back and Patrols whose rear end is permanently loaded. Adjustability genuinely helps here, because the load on these vehicles changes from trip to trip.
Fitment notes
The manufacturer lists this part for the Land Cruiser 76, 78 and 79 (from the HZJ78 and HZJ79 of 10/1999-2006, through the VDJ76R, VDJ78R and VDJ79R from 2007, to the GDJ79R Dual Cab from 09/2023 without manual transmission), and for coil sprung GQ Y60 and GU Y61 Patrols. The distributor also mentions the 71 and 74 series - confirm the part number for those first.
Fitting and tuning

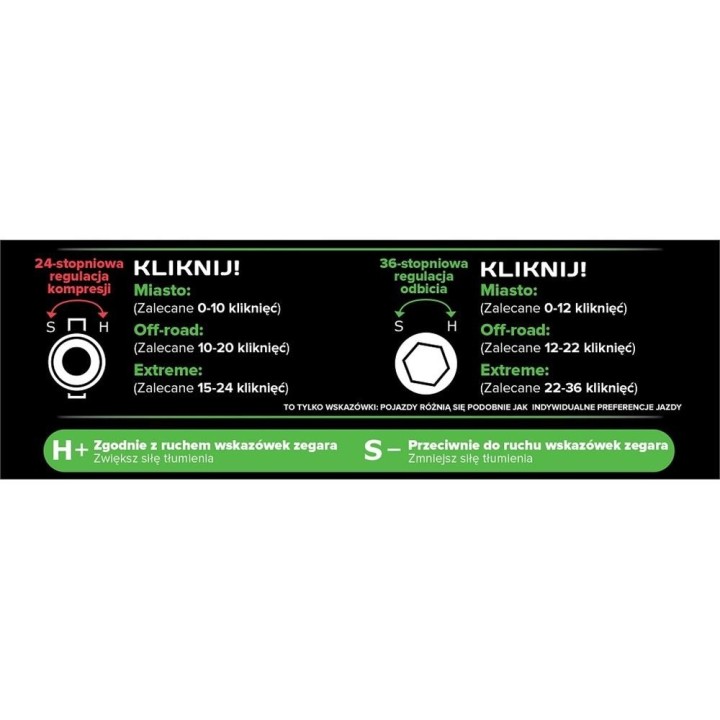

Damping is set with two knobs: 24 clicks of compression and 36 clicks of rebound. Clockwise (marked H+) adds damping, counter-clockwise (S-) takes it away. The manufacturer gives starting points: 0-10 compression and 0-12 rebound clicks for town use, 10-20 and 12-22 off-road, 15-24 and 22-36 for extreme driving. Treat them as a baseline - load and driving style will move them.
The reservoir mounts on the supplied bracket and clamps, somewhere protected from impacts. Our workshop can handle selection, fitting and the later rebuild.
Warranty and registration
The distributor states a 2-year or 100,000 km warranty which can be extended to 6 years in total. The condition: register the damper with the manufacturer after purchase (QR code in the instruction sheet), then carry out and report a service before 2 years / 100,000 km, and a second one before the next 2 years / 50,000 km. Each reported service adds another 2 years and 50,000 km of cover.
Why it is worth it
- Compression and rebound adjusted independently - tune for the load and the terrain.
- The extra finned reservoir holds damping together on long, fast sections.
- Built to be rebuilt, with cover extendable to 6 years.
We can match the front and rear to your lift and your load - tell us what you drive and how.
Frequently Asked Questions
Which Patrols does it fit?
The coil sprung versions: GQ Y60 in LWB, manual SWB and Cab Chassis forms, plus GU Y61 LWB and Cab Chassis.
What are the dimensions?
The distributor quotes 700 x 435 mm - taken from the current product page, as the imported description had no dimensions.
Does it fit a 78 series Troop Carrier?
Yes, the manufacturer lists the HZJ78 of 10/1999-2006 and the VDJ78R from 2007.
What is in the box?
The damper with its remote reservoir, a rubber shaft boot, a reservoir bracket, hose clamps, hardware and the instruction sheet with the registration QR code.
How heavy is one unit?
The manufacturer gives 6 kg, packed at 83 x 28 x 14 cm.
