EFS4WD
Reference: 36-5540
Shocks

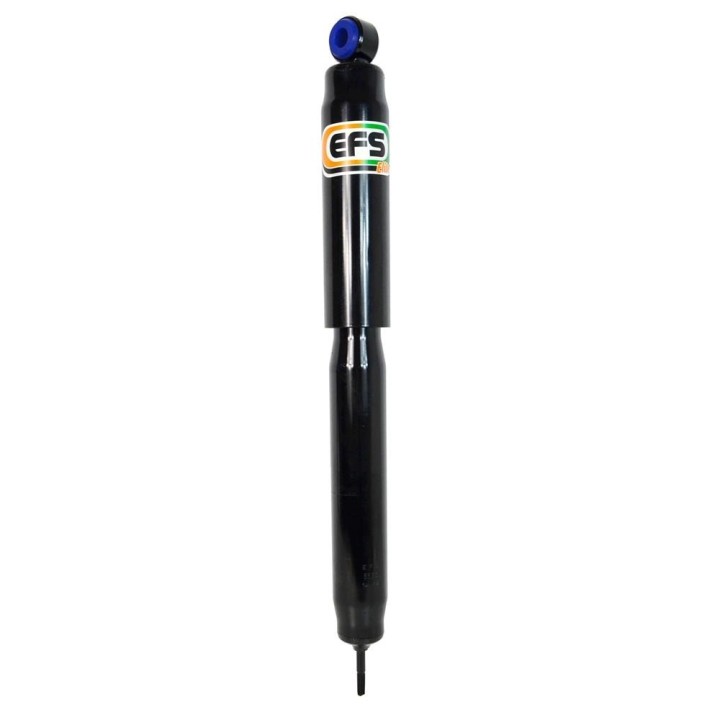

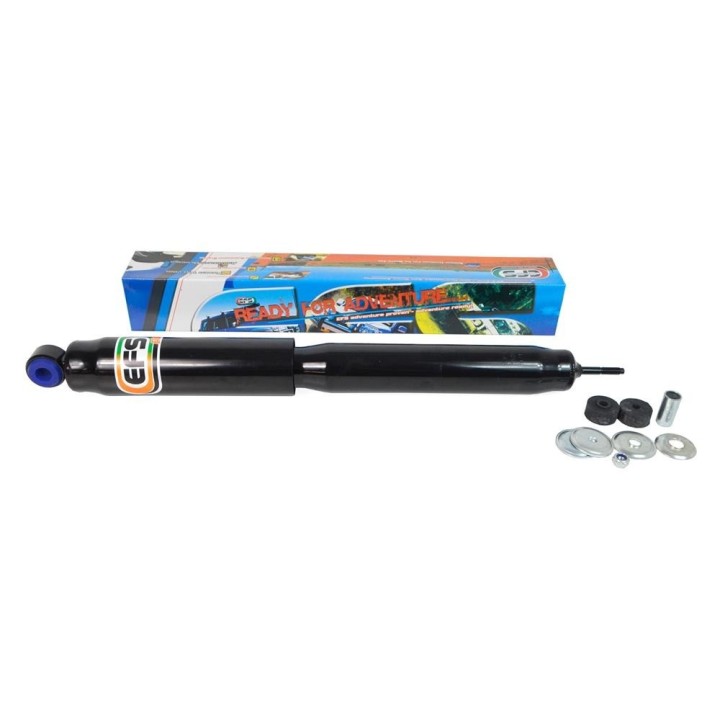

EFS Elite Front Shock Absorber, 50 mm Lift - Mercedes G W460 / W461 / W463
EFS Elite front damper for the Mercedes G-Class in W460, W461 and W463 form from 1979 on, matched to a 50 mm lift. It measures 640 x 383 mm eye to pin, runs a 35 mm piston in a nitrogen-charged twin-tube body and carries a five-year unlimited-mileage warranty.
EFS Elite Front Shock Absorber, 50 mm Lift - Mercedes G W460 / W461 / W463
The G-Class runs solid axles and geometry that forgives a lot - as long as the damping keeps up. After a 50 mm lift the factory damper is simply too short and hangs at the end of its stroke instead of working.
Elite in this length gives the front axle its full range back, while a larger body and a 35 mm piston mean damping does not fade a few kilometres into a gravel road.
Application Mercedes G W460, W461, W463 from 1979 | Lift 2" / 50 mm | Dimensions 640 x 383 mm, eye to pin |
Key benefits
- 640/383 mm length for a 50 mm lift - the front axle regains full travel instead of working against the limiter.
- Eye-to-pin mounting - the arrangement used by the G-Class front suspension.
- 35 mm piston in a 51-60 mm body - a larger oil volume means lower temperatures and steadier damping over distance.
- Low-pressure nitrogen prevents the oil foaming that shows up as a sudden softening of the suspension.
- 16 mm hardened chrome rod - a surface built for mud and rock.
- 1.5 mm wall in both tubes - the body copes better with the side loads a live axle generates.
- DMC-T valving - the characteristic adapts to the surface with no driver input.
Technical data
| Fitting position | front |
| Lift | 2" (50 mm) |
| Dimensions | 640 x 383 mm (eye to pin) |
| Application | Mercedes G-Class W460, W461, W463 from 1979 |
| Manufacturer | EFS 4WD (Australia) |
| Product line | Elite |
| Body outer diameter | 51-60 mm |
| Piston | 35 mm |
| Piston rod | hardened chrome, 16 mm diameter |
| Construction | twin-tube, low-pressure nitrogen |
| Wall thickness | 1.5 mm - outer and inner tube |
| Valving | DMC-T (Dynamic Motion Control Technology) |
| Warranty | 5 years, unlimited mileage |
Who it is for
For G-Class owners running a lift - equally at home under a hard-working W460 or W461 touring truck and under a W463 used away from tar. It also makes sense when the factory dampers are simply worn and the front dives over broken surfaces.
Fitting and notes
- The distributor page describes a single damper - you need two for the front axle.
- The 640 x 383 mm figures are eye to pin; confirm the mount type on your vehicle before ordering.
Why it is worth it
- A length matched to a 50 mm lift rather than to a standard vehicle.
- Heavy-duty build with a thicker wall and larger body than the factory part.
- Five-year warranty with no mileage limit.
If your G has gone up, the front axle needs a damper of the right length - this is that damper.
Frequently Asked Questions
Which G-Class variants does it fit?
The distributor lists the W460, W461 and W463 from 1979 on.
Is it a front or rear damper?
Front. Both the full and the short description on the distributor page say so.
What mounting does it use?
Dimensions are given eye to pin: 640 x 383 mm.
What lift is it intended for?
The distributor states 2 inches, that is 50 mm.
What warranty applies?
Five years with no mileage limit, as stated by the distributor.
