T-max
Reference: 7310104
Winches 24V

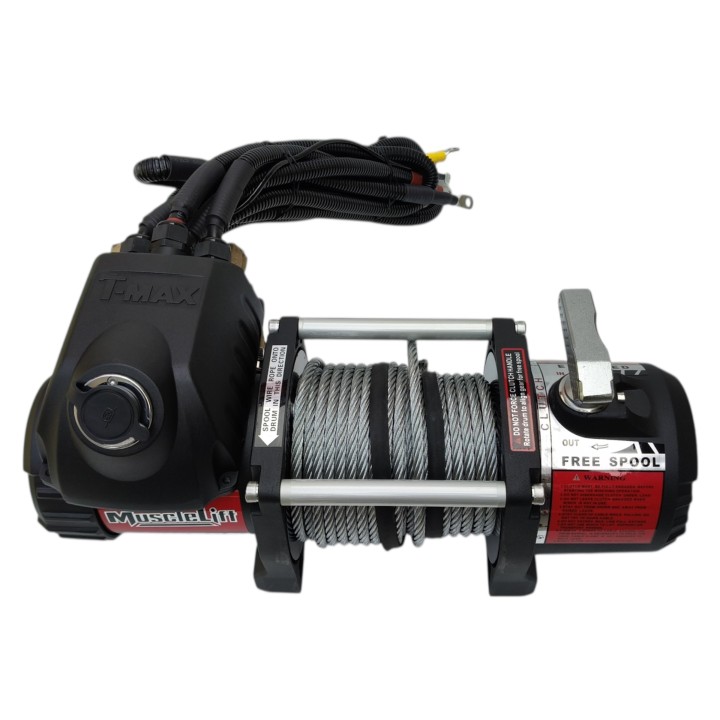

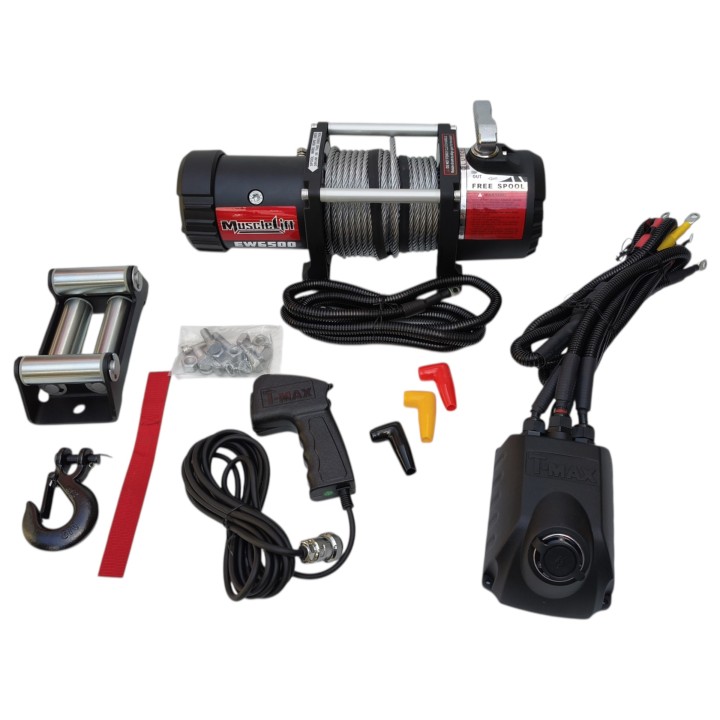

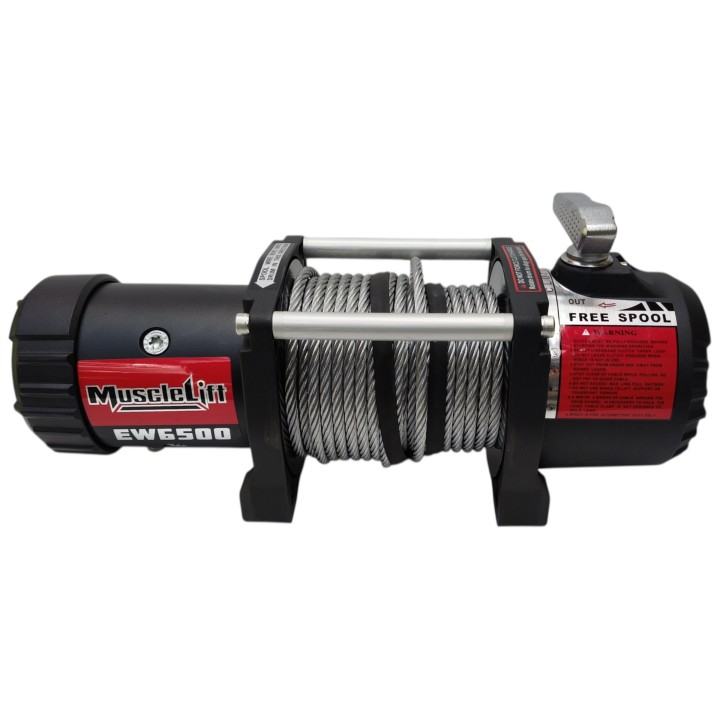

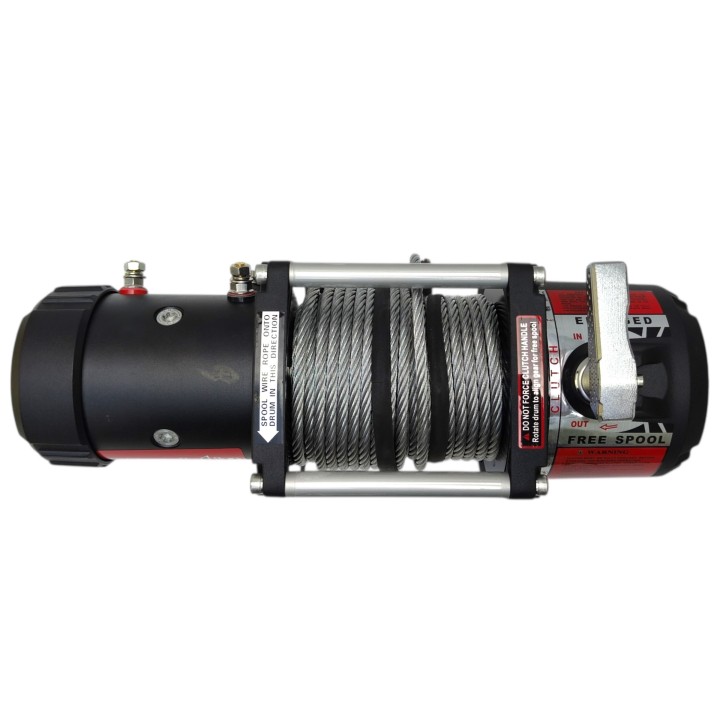

Tmax Musclelift Winch 6500 24V
This product has no reviews yet — write the first one
zł1,690.00
Tax included
| Parameter | Value |
|---|---|
| Maximum Pulling Capacity (single line) | 6500 lbs (2948 kg) |
| Gear Ratio | 161:1 |
| Motor | 6 HP, DC, Series Wound 24V |
| Control | Wired remote control |
| Gearbox | 3-stage planetary gear |
| Clutch | Sliding ring gear |
| Brake | Automatic, internal – in drum |
| Drum | Diameter 63.5 mm x Length 135 mm |
| Cable | Steel 24 m x 7 mm |
| Cable Guide | Rollers |
| Remote Control | – |
| Recommended Battery | 650 CCA |
| Net Weight | 29 kg |
| Overall Dimensions (LxWxH) | 441 x 160 x 1196 mm |
| Mounting Bolt Pattern | 166.4 x 114.3 mm |
Line Speed and Current Draw – First Layer
| Load (lbs / kg) | 0 / 0 | 1500 / 680 | 3000 / 1361 | 4500 / 2041 | 6000 / 2721 | 6500 / 2948 |
|---|---|---|---|---|---|---|
| Line Speed (feet/minute) | 45.26 | 22.96 | 20.34 | 17.71 | 13.12 | 12.46 |
| Line Speed (m/minute) | 13.8 | 7 | 6.2 | 5.4 | 4 | 3.8 |
| Current Draw (A) | 53 | 81 | 110 | 138 | 162 | 172 |
