Nomadtech
Reference: NOM-09152SC
Shocks

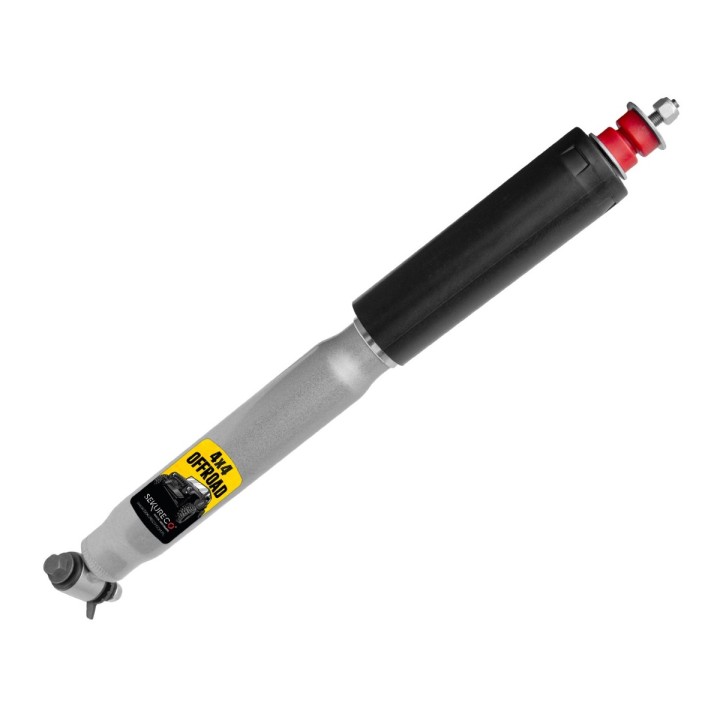

Rear Shock Absorber Suzuki Vitara +2''
A rear shock absorber for the Suzuki Vitara with a +2 inch suspension lift. Once the vehicle is raised the original dampers work at the very end of their stroke, so fitting units matched to the lift restores proper rear axle movement. The natural companion to the front dampers.
Rear Shock Absorber Suzuki Vitara +2''
A +2 inch lift changes more than ground clearance on a Vitara – it changes the range the suspension actually works in. The original damper, sized for the standard ride height, reaches the end of its stroke as the rear axle droops and starts limiting it. This shock absorber is matched to a raised setup instead.
AXLE Rear |
LIFT +2'' |
Key benefits
- Sized for a +2 inch lift, so it does not become the mechanical travel stop for the rear axle once the vehicle is raised.
- It finishes the suspension job: after new springs go in, the dampers are the last component still working to factory assumptions.
- Pairs with the front dampers for a +2 inch lifted Vitara from our range.
Technical data
- Axle: rear
- Intended for: Suzuki Vitara with a +2 inch suspension lift
This is for the owner of a lifted Vitara who wants the rear axle to use its full range of movement again, and to stop the car skipping over bumps after the lift went on.
Installation notes
- Replace shocks in axle pairs – changing one side alone leaves different damping on each wheel of the same axle.
- With the shock removed, check the bushings and mounts; on vehicles of this age they are the usual wear points.
Why it is worth it
- A component chosen for a specific lift range, not an OE replacement forced onto a raised vehicle.
- It closes out the suspension modification rather than leaving a weak link in it.
If you want to be certain it suits your version of the Vitara and your lift height, send us the model year and a description of the suspension and we will confirm the fit before dispatch.
Frequently Asked Questions
Which axle is this shock for?
The rear axle. The front axle takes a separate damper designed for that position.
Will it fit a vehicle without a lift?
It is intended for a Suzuki Vitara with a +2 inch suspension lift. On a car at standard ride height its working range will not match how the suspension moves.
Should both shocks on the axle be replaced?
Yes. Replacing only one side leaves different damping on each wheel of the same axle and hurts stability, particularly at speed and off-road.
