Nomadtech
Reference: NOM-1108001SET2
Distance

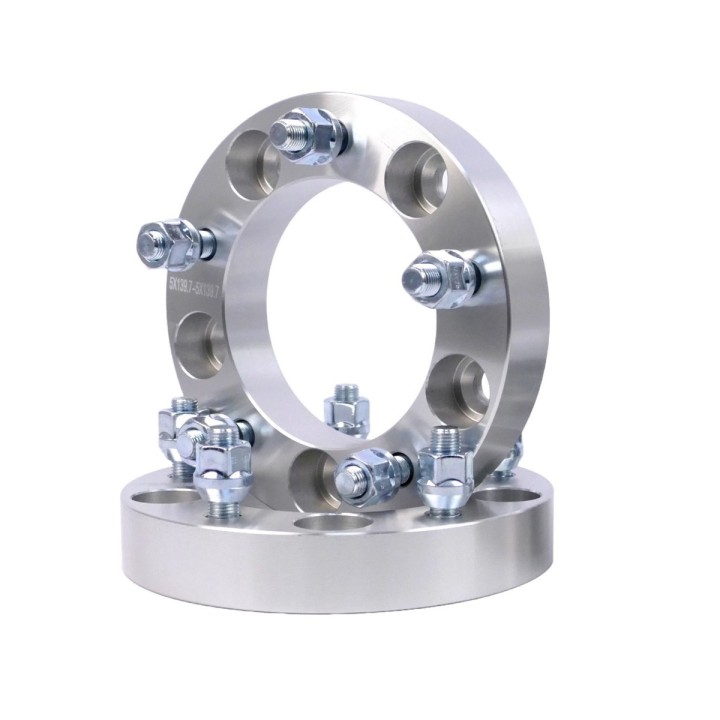

Suzuki Wheel Spacers 30 mm, Aluminium, 5x139.7 – Pair (1 Axle)
Aluminium 30 mm spacers with a 5x139.7 bolt pattern for the Suzuki Samurai, Vitara, Grand Vitara and Jimny. They push the wheel outward so a wider tire fits, or so it stops rubbing suspension components at full lock. The price covers a one-axle set, meaning 2 pieces.
Suzuki Wheel Spacers 30 mm, Aluminium, 5x139.7 – One-Axle Pair
Wider tires often fit only just: at full lock they catch a control arm, a steering rod or the inner arch. Rather than dropping down a size, moving the wheel a few centimetres outward usually solves it.
These spacers are 30 mm thick with the 5x139.7 bolt pattern typical of off-road Suzukis. The result is a wider track and the clearance that was missing inside the arch.
Thickness 30 mm | Bolt pattern 5x139.7 | Supplied as 2 pieces, one axle |
Key benefits
- 30 mm per side gives real room for a wider tire and ends rubbing on lock.
- The 5x139.7 pattern suits common Suzuki off-roaders, so no pattern-changing adapters are needed.
- Aluminium construction keeps unsprung weight lower than a steel spacer of the same thickness.
- Grade 10.9 studs — the part carrying the entire wheel load is not where the savings were made.
- A wider track improves stability, which is noticeable on short, tall Suzuki bodies.
What is included
- 2 spacers, a set for one axle
Technical data
- Thickness: 30 mm
- Bolt pattern: 5x139.7
- Material: aluminium
- Colour: silver
- Studs: grade 10.9
- Quantity: 2 pieces (one axle)
- Fitment: Suzuki Samurai, Vitara 1988-1998, Grand Vitara 1999-2005, Jimny
This is the option when only one axle needs attention — evening out track after fitting wheels with a different offset, for instance, or curing rubbing at the front alone. If you want the whole vehicle done, look at the four-piece version of the same spacer.
Installation / notes
- After fitting, check that the tire does not protrude beyond the arch — in many countries this matters at roadworthiness inspection.
- Re-check nut torque after the first few dozen kilometres and periodically afterwards.
- If you are unsure about sizing or legality, our off-road workshop can advise for your specific build.
Why it is worth it
- A simple way to fit a wider tire without touching the suspension.
- Aluminium body with grade 10.9 studs balances weight against strength.
- The price covers a full axle set, so there is nothing to count separately.
Not sure how many millimetres your wheels need? Message us and we will work it out.
Frequently Asked Questions
How many pieces does the price cover?
The price covers a one-axle set, meaning 2 spacers.
Which Suzuki models do they fit?
The product listing states the Samurai, Vitara 1988-1998, Grand Vitara 1999-2005 and Jimny.
What are the bolt pattern and thickness?
The bolt pattern is 5x139.7 and the spacer is 30 mm thick.
What are they made of and what studs are used?
They are aluminium, silver in colour, and the studs are grade 10.9.
Why fit spacers at all?
They move the wheel further outboard so a larger wheel and tire fit, or so the tire stops rubbing suspension parts when steering.
