Hub Centric Spacer Set 30 mm Suzuki 5x139.7, CB 108 mm – 4 Pieces

Two things become obvious quickly when building a vehicle around bigger wheels: widening only pays off when both axles are done, and a spacer without hub centring can spoil the drive on tarmac. This set closes both questions in one order.

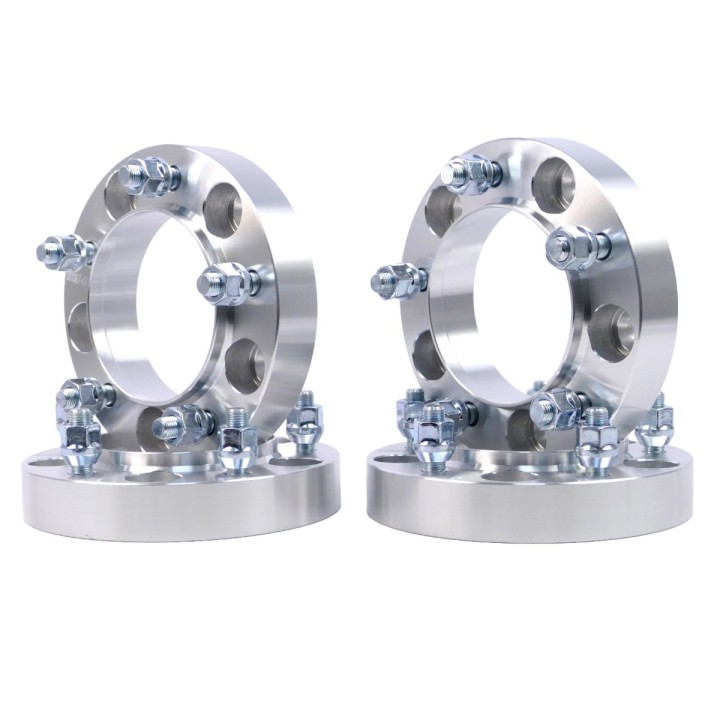

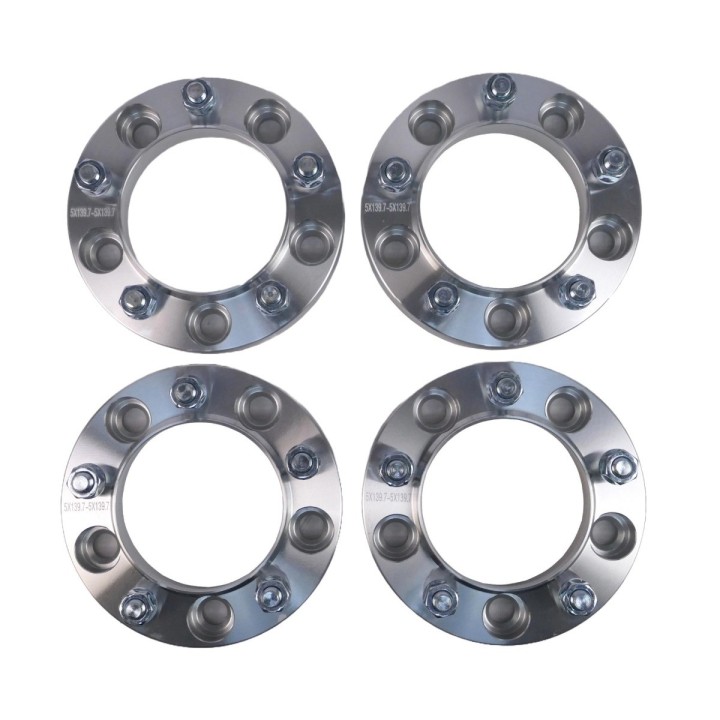

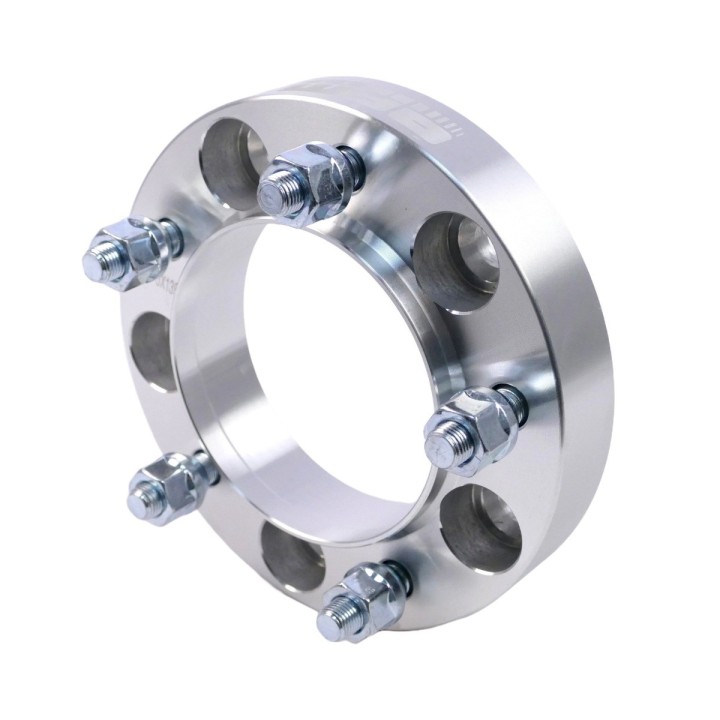

Four 30 mm spacers, a 5x139.7 pattern, a 108 mm hub bore and matching centring rings — a complete set for the vehicle.

Key benefits

• A set for both axles: even track and consistent behaviour, with no second pair to order.
• Hub centring through the 108 mm bore and 108 mm rings helps keep the steering calm at speed.
• Grade 12.9 studs in each of the four spacers.
• 30 mm per side makes room for wider tires and removes rubbing on lock.
• Aluminium construction keeps unsprung weight below that of a steel spacer of the same thickness.

What is included

• 4 spacers, 30 mm, with 108 mm centring rings

Technical data

• Thickness: 30 mm
• Bolt pattern: 5x139.7
• Hub bore: 108 mm
• Centring ring: 108 mm
• Quantity: 4 pieces
• Material: aluminium
• Colour: silver
• Studs: grade 12.9
• Fitment: Suzuki Samurai, Vitara 1988-1998, Jimny

The set is the natural choice for a full rebuild around larger tires, where both axles are widening from the start and the vehicle still has to behave on the road.

Installation / notes

• Verify the centre bore of your wheels — these spacers centre on 108 mm.
• After fitting, confirm the tires stay within the arch line.
• Re-check nut torque after the first few dozen kilometres and periodically afterwards.
• A wider track raises wheel bearing loads, so assess their condition while fitting.

Why it is worth it

• One set covers widening on both axles.
• Hub centring and grade 12.9 studs rather than the simplest option available.
• Aluminium construction at 30 mm thickness.

Want to check whether 30 mm is right for your wheels and tires? Message us before you order.

Frequently Asked Questions

How many spacers are in the set?

The set contains 4 spacers, enough for the whole vehicle.

How does it differ from the version without a centring ring?

This family has a 108 mm hub bore with a 108 mm centring ring and grade 12.9 studs instead of 10.9.

What are the thickness and bolt pattern?

Each spacer is 30 mm thick and the bolt pattern is 5x139.7.

Which Suzuki models do they fit?

The single-axle listing for the same spacer states the Samurai, Vitara 1988-1998 and Jimny.

Is the centring ring included?

Yes, the 1108002 variant has a 108 mm hub bore and a centring ring of the same size.
