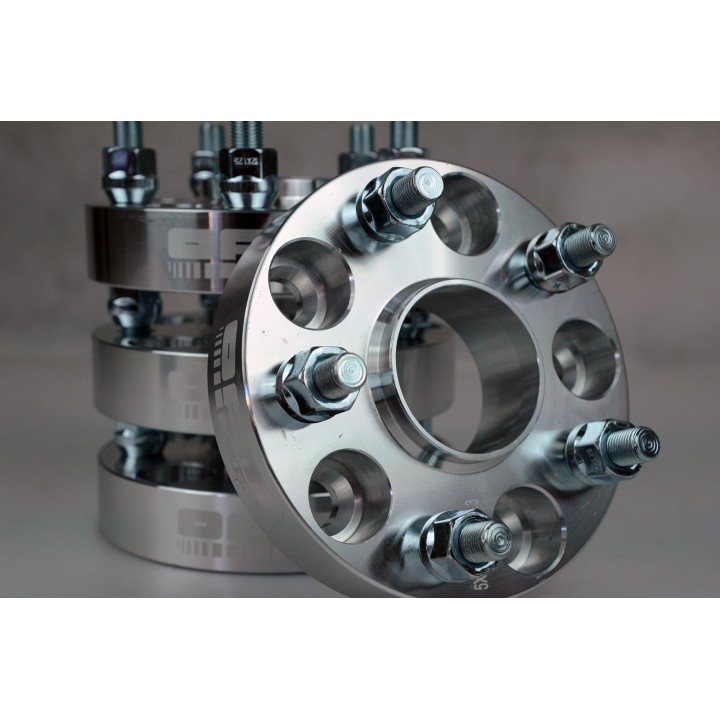

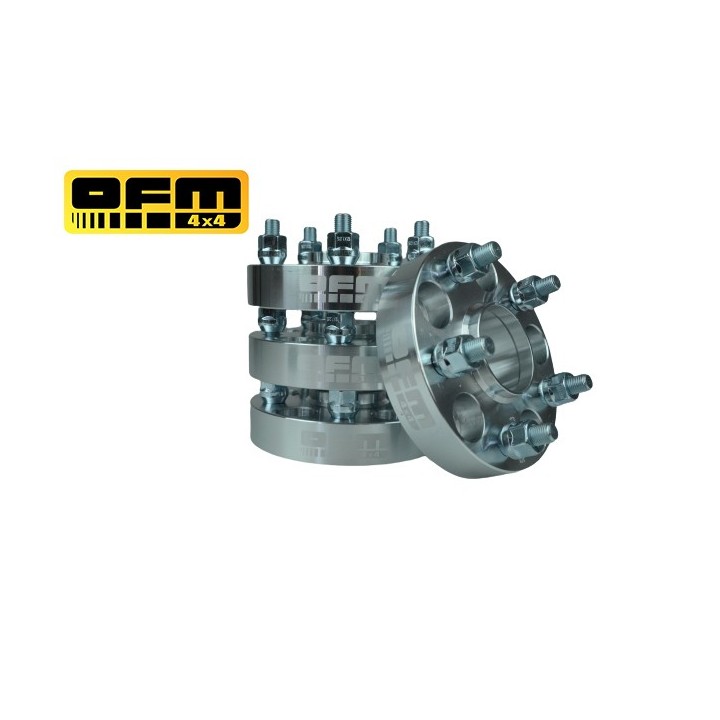

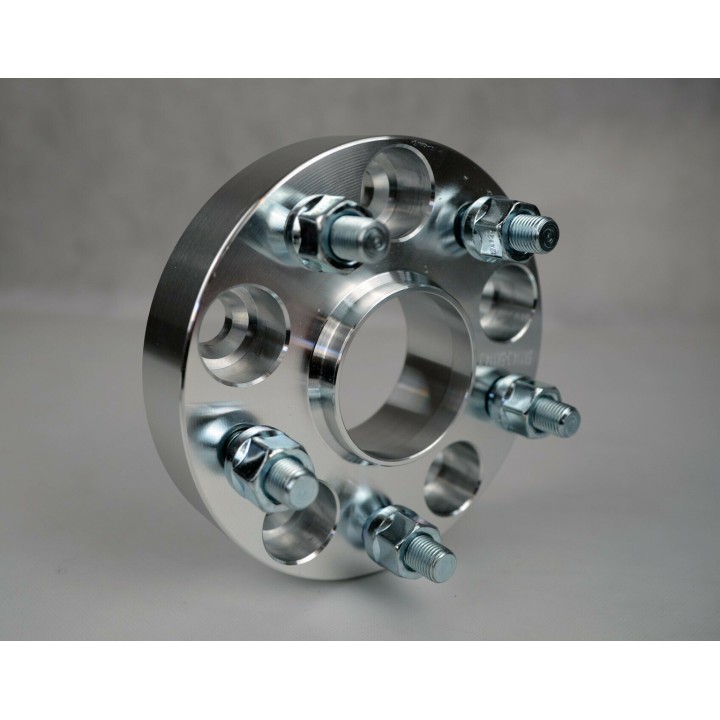

Wheel Spacers 30 mm Suzuki Grand Vitara 2, 5x114.3 CB 60.1 – 4 pcs

Widening only the front axle tends to be a stopgap – the vehicle starts to look uneven and the rear wheels still sit tucked under the body. A set of four 30 mm spacers widens both axles by the same amount, so the proportions and the handling stay consistent.

It is the usual choice when moving to larger tyres, or on a lifted vehicle where the standard track begins to look and behave out of proportion with the body height.

Key benefits

• Four pieces in one order means the front and rear are widened equally – no compromise in either stance or cornering balance.
• 30 mm per side adds 60 mm of track on each axle, which improves lateral stability, particularly on a lifted vehicle.
• Aluminium construction keeps unsprung mass lower than a steel equivalent.
• A 60.1 mm centring ring on every spacer keeps each wheel concentric with its hub.
• 10.9 grade studs meet the usual standard for heavily loaded bolted joints.
• One order instead of two sets – simpler logistics while the build is underway.

What is in the set

• 4x 30 mm wheel spacers with 60.1 mm centring rings and 10.9 grade studs

Technical data

• Thickness: 30 mm
• Bolt pattern (PCD): 5x114.3
• Centre bore (CB): 60.1 mm
• Centring ring: 60.1 mm
• Material: aluminium
• Colour: silver
• Studs: 10.9 grade
• Manufacturer: OFM4x4
• Application: Suzuki Grand Vitara 2
• Quantity: 4 pcs (both axles)

The four-piece set is the natural choice for a larger Grand Vitara 2 build: wider tyres, a wheel change to a different offset, or a lifted suspension where a wider track improves both stability and the look of the vehicle.

Installation notes

• Fit all four spacers so the track stays even on both axles.
• Re-check wheel nut torque after the first few dozen kilometres.
• A wider track loads the wheel bearings harder than standard, so assess their condition first.
• Check that the tyres still sit within the arches once widened, and plan for arch extensions if they do not.

Why it is worth it

• A complete solution for the whole vehicle with no second set to order later.
• Confirmed mounting figures: 5x114.3, 60.1 mm centre bore, 30 mm thickness.
• Aluminium construction with its own centring rings and 10.9 grade studs on every piece.

Want to check whether 30 mm is the right thickness for your wheel package? Send us the wheel and tyre sizes and we will help you choose.

Frequently Asked Questions

How many pieces are in the set?

Four, which covers both the front and the rear axle.

Which vehicle do they fit?

The Suzuki Grand Vitara 2. The bolt pattern is 5x114.3 and the centre bore is 60.1 mm.

How much wider will the track be?

Each spacer is 30 mm thick, so every axle gains 60 mm of track in total – 30 mm per side.

Does every spacer include a centring ring?

Yes. Each ring measures 60.1 mm and matches the wheel's centre bore.

What are they made of?

Aluminium with a silver finish and 10.9 grade studs.
