Nomadtech
Reference: NOM-2108002
Distance

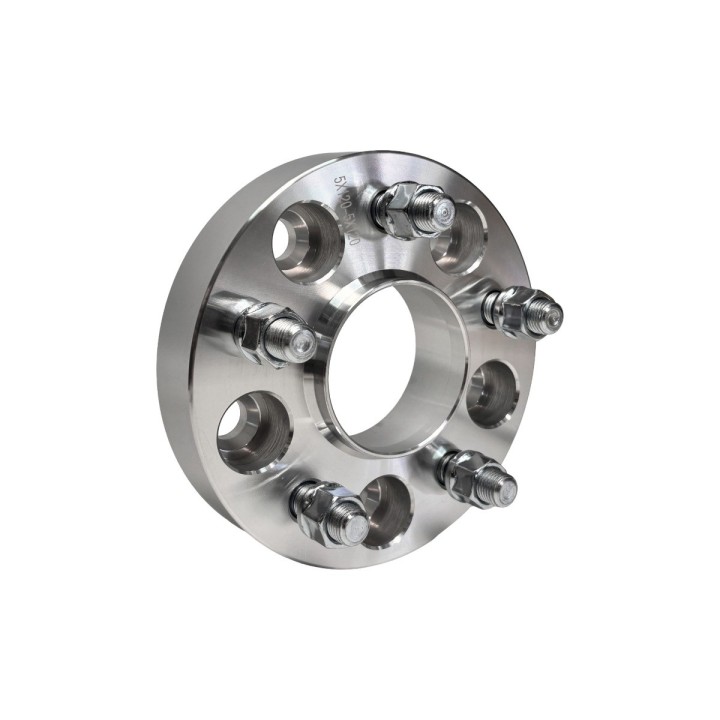

Wheel Spacer 30 mm Land Rover Discovery II, Range Rover 5x120 CB 70.1 (1 pc)
A single 30 mm aluminium wheel spacer for the Land Rover Discovery II and Range Rover with the 5x120 bolt pattern. 70.1 mm centre bore and centring ring, M14x1.5 studs in grade 10.9. A sound choice for completing a set or replacing one damaged piece.
Wheel Spacer 30 mm Land Rover Discovery II, Range Rover 5x120 CB 70.1 (1 pc)
Sometimes a full set is not what you need — a single piece is: to replace a damaged spacer, to complete an existing set, or to test the fit before committing to widening the whole vehicle. This is exactly that part, sold individually.
The spacer is 30 mm thick and moves the wheel out by the same amount. That buys clearance between the tyre and the suspension components — the margin that usually disappears once you step up in tyre size on a Discovery II.
Bolt pattern 5x120 | Centre bore 70.1 mm | Thickness 30 mm |
Key benefits
- 30 mm of offset on one wheel — real clearance at full lock and with a larger tyre.
- An aluminium body, so the unsprung weight penalty is smaller than with a steel equivalent.
- Grade 10.9 studs and an M14x1.5 thread — mounting specs typical of this Land Rover family.
- The 70.1 mm centring ring locates the rim on the hub instead of on the studs alone.
- Sold as a single piece, so you pay only for what you actually need.
Technical data
| Thickness | 30 mm |
| Bolt pattern (PCD) | 5x120 |
| Centre bore (CB) | 70.1 mm |
| Centring ring | 70.1 mm |
| Thread | M14x1.5 |
| Material | aluminium |
| Colour | silver |
| Stud grade | 10.9 |
| Quantity | 1 pc |
This spacer suits the Discovery II and Range Rover running the 5x120 pattern with a 70.1 mm centre bore. Take it when you are completing a set, replacing a single damaged piece, or checking rim fitment before buying a full kit.
Fitting notes
It is a bolt-on design — the spacer fastens to the hub and the wheel sits on its own M14x1.5 studs. Bear in mind that widening only makes sense symmetrically: for a permanent installation, fit two pieces per axle. If you are unsure whether your rims work with the 70.1 mm centring ring, our workshop can check it for you.
Why it is worth it
- Buying flexibility — one piece rather than a forced set.
- Unambiguous mounting specs: 5x120, CB 70.1, M14x1.5.
- The same part that makes up the two- and four-piece kits.
If a single spacer is all you need to complete or repair a set, this is the one.
Frequently Asked Questions
How many pieces does this listing cover?
One. Widening a single axle takes two spacers; the whole vehicle takes four.
What are the mounting specifications?
5x120 bolt pattern, 70.1 mm centre bore, M14x1.5 studs and a 70.1 mm centring ring.
How far does the wheel move out?
By 30 mm — that is the thickness of the spacer.
What is it made of?
An aluminium body in silver, with studs made to grade 10.9.
