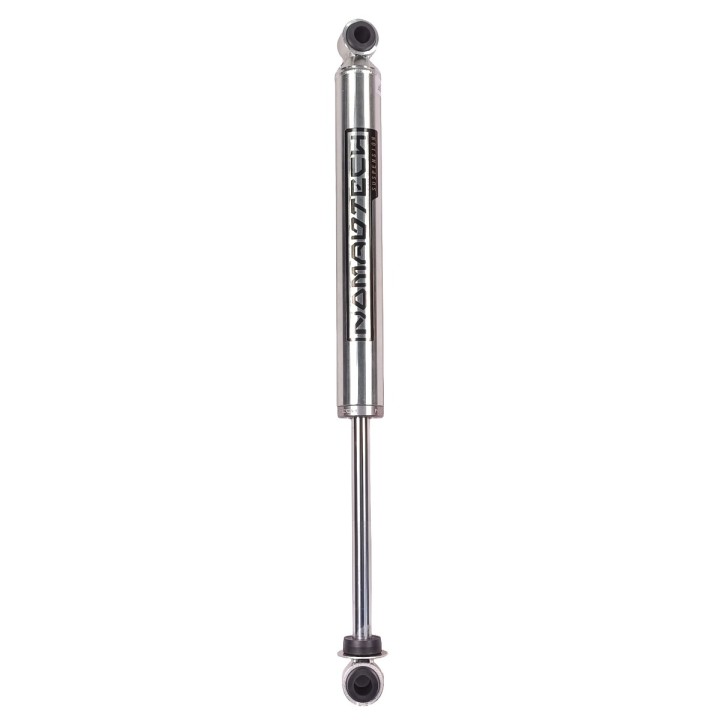

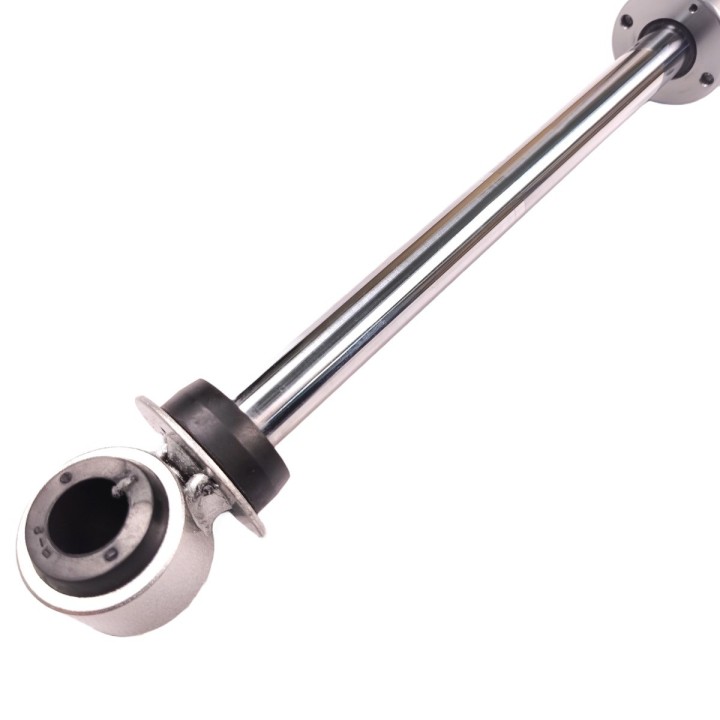

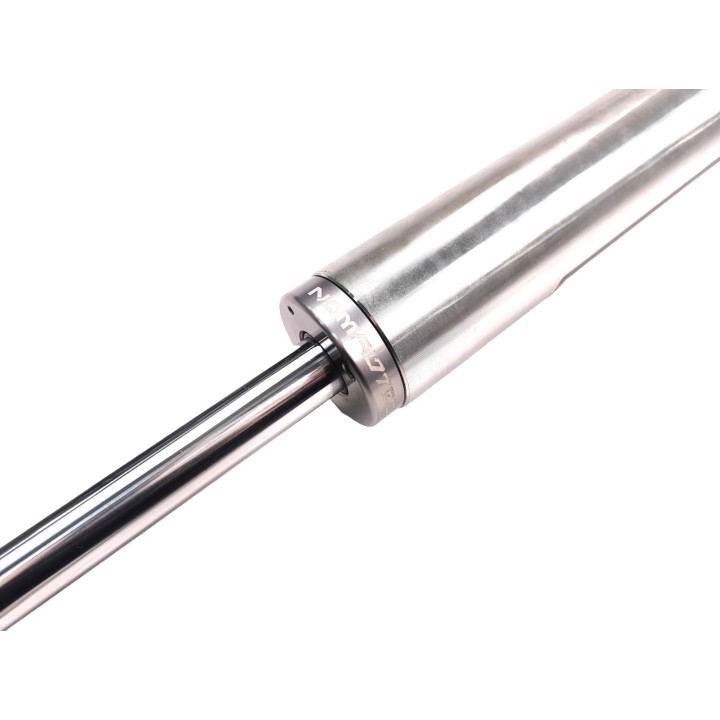

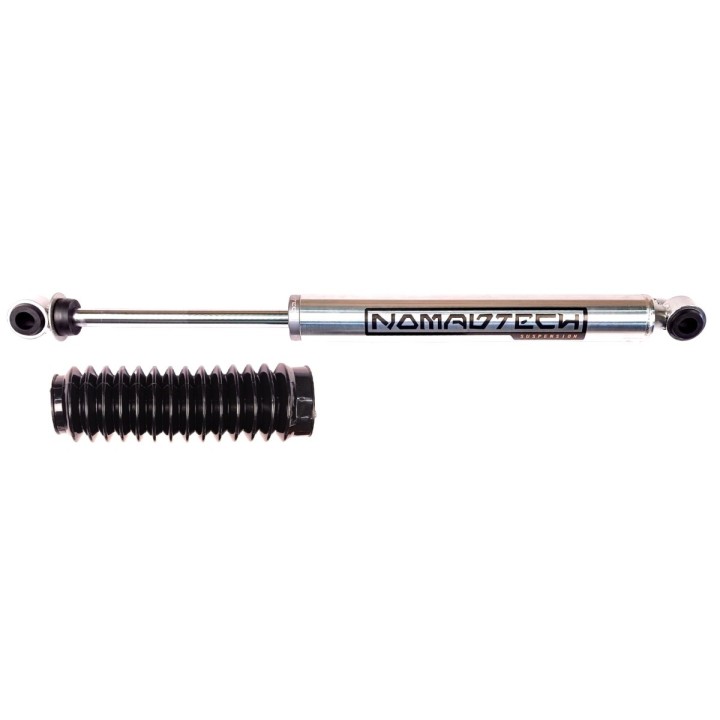

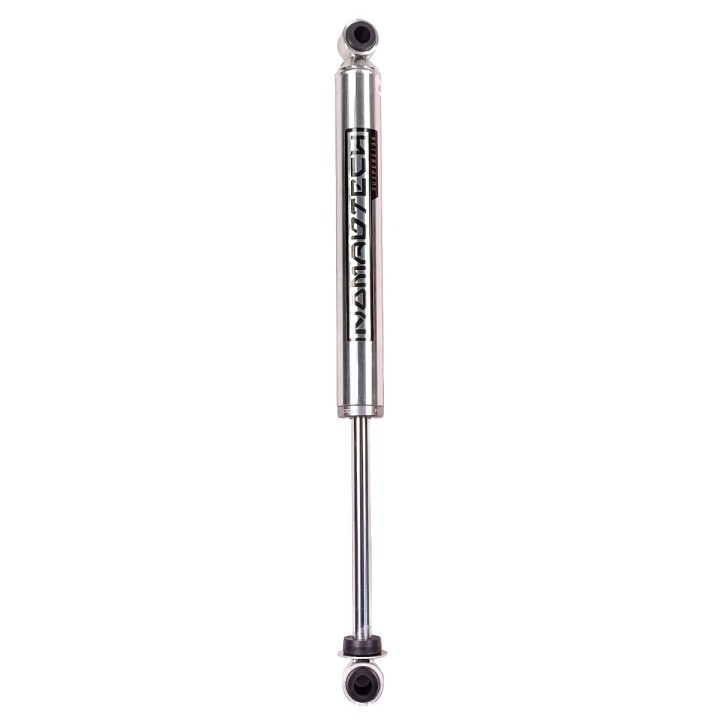

Shock Absorber Nomadtech Monotube 2-3.5'' Rear Nissan Patrol Y60/Y61
A single Nomadtech Monotube rear shock absorber built for a 2-3.5'' lift on the Nissan Patrol Y60/Y61. Oil/gas construction, fully rebuildable.
Nomadtech Monotube 2-3.5'' Rear Shock Absorber for Nissan Patrol Y60/Y61
Replacing a single rear shock after a failure, or matching one to a suspension that's already lifted, is exactly the situation where it's easy to end up with a part that "roughly fits." This Nomadtech model is a single rear monotube shock built specifically for a 2-3.5'' lift on the Nissan Patrol Y60 and Y61 - sold individually, no need to buy the whole set.
Axle Rear | Construction Monotube, oil/gas | Lift range +2 to +3.5'' (5-8.75 cm) |
Key benefits
- The single-tube (monotube) design runs at higher nitrogen pressure than a twin-tube shock, delaying oil cavitation - damping stays more consistent through long, hard off-road use.
- Oil sits in direct contact with the outer body, improving heat dissipation.
- Fully rebuildable and serviceable - if it starts leaking, you can service it instead of replacing it outright.
- Sold as a single unit, so it works as a top-up to an existing set or a replacement for one damaged shock without buying a full set.
Technical data
| Extended length | 685 mm |
| Body diameter | 51.5 mm |
| Piston rod diameter | 20 mm |
| Color | Silver |
| Fitment | Nissan Patrol Y60, Nissan Patrol Y61 |
This shock is aimed at Y60/Y61 owners running a 2-3.5'' lift who need a single rear unit - whether replacing one damaged shock from a pair, or completing a suspension setup sourced from elsewhere.
Installation / notes
The monotube layout follows the same principle used by brands like FOX or Bilstein (B8-and-up models) - the shock can be opened up and serviced when needed.
Why it's worth it
- Buy a single unit instead of a full set when that's all you need.
- Serviceable construction - a real repair option instead of replacement at the first leak.
If you need a rear shock matched exactly to a 2-3.5'' lift on a Y60/Y61 Patrol without buying the full set, this is the right pick.
Frequently Asked Questions
Is this shock sold individually or only as a set?
It is sold individually - the price is for a single rear unit.
What lift range is it designed for?
A suspension lift of +2 to +3.5 inches (5-8.75 cm).
Does it fit both the Y60 and Y61?
Yes, Nomadtech confirms compatibility with both generations.
Can it be repaired if it starts leaking?
Yes - it is fully rebuildable and serviceable.
