Nomadtech
Reference: NOM-3308001SET2
Distance

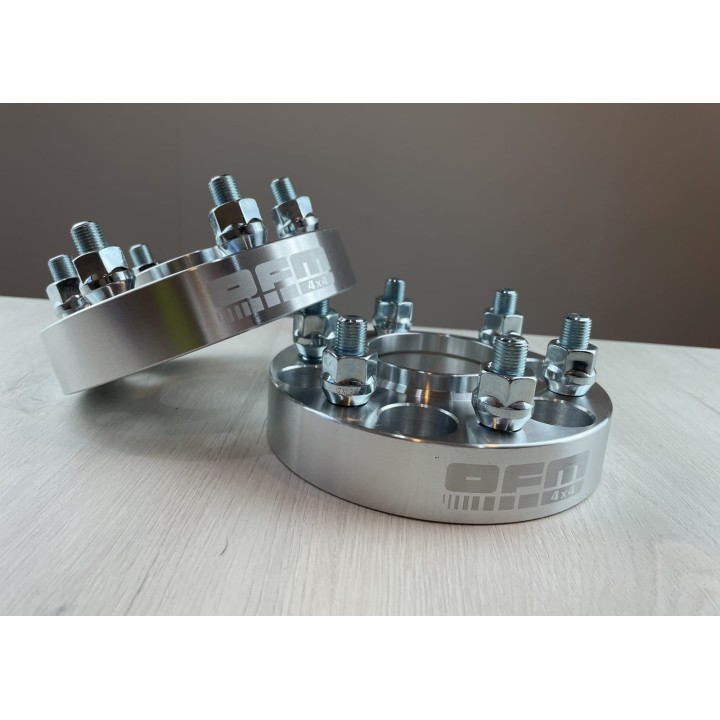

Wheel Spacers 30 mm Nissan Navara, Pathfinder 6x114.3 M12x1.25 CB 66.1 (2 pcs)
Two 30 mm aluminium wheel spacers for the Nissan Navara and Pathfinder with the 6x114.3 pattern. 66.1 mm centre bore and centring ring, M12x1.25 studs in grade 10.9. The pair adds 60 mm of track on one axle and room for a wider tyre.
Wheel Spacers 30 mm Nissan Navara, Pathfinder 6x114.3 CB 66.1 (2 pcs)
On a pickup running factory rims, an all-terrain tyre only fills the arch properly once the wheel moves a few centimetres outboard. A pair of 30 mm spacers does that on one axle and pushes the tread away from the suspension at the same time.
Track on that axle grows by 60 mm. You get a wider stance and clearance on lock — most noticeable at the front, where the wheel works in the tightest space.
Bolt pattern 6x114.3 | Centre bore 66.1 mm | Kit 2 pcs — one axle |
Key benefits
- A pair for one axle — symmetrical widening without buying pieces you do not need.
- 60 mm of extra track once both spacers are fitted.
- Aluminium limits the unsprung mass penalty compared with steel.
- Grade 10.9 studs and an M12x1.25 thread matching the mounting used on the Navara and Pathfinder.
- A 66.1 mm centring ring for correct rim seating.
What is in the box
- 2 bolt-on 30 mm spacers with their own studs — a set for one axle.
Technical data
| Thickness | 30 mm |
| Bolt pattern (PCD) | 6x114.3 |
| Centre bore (CB) | 66.1 mm |
| Centring ring | 66.1 mm |
| Thread | M12x1.25 |
| Material | aluminium |
| Colour | silver |
| Stud grade | 10.9 |
| Quantity | 2 pcs |
The kit suits the Nissan Navara and Pathfinder with the 6x114.3 pattern and a 66.1 mm centre bore. Choose it when only one axle needs widening, or when you want to spread the purchase over time.
Fitting notes
The spacers bolt to the hubs and the wheels seat on the M12x1.25 studs. Before fitting, check your rim centre bore and whether the wider wheels clear the arches. Our off-road workshop carries out this work and the measurements in house.
Why it is worth it
- A specific problem — rubbing and a narrow stance — solved without rebuilding the suspension.
- Specifications you can verify before you buy.
- The option to add a second pair later without changing standard.
If you are starting with one axle, this pair is the right place to begin.
Frequently Asked Questions
How many wheels does this kit cover?
Two, meaning one axle. Widening the whole vehicle takes four pieces.
How much does the track increase?
By 60 mm per axle — each spacer is 30 mm thick.
What is the bolt pattern and centre bore?
A 6x114.3 pattern and a 66.1 mm centre bore, with a 66.1 mm centring ring.
What thread do the studs use?
M12x1.25, in strength grade 10.9.
What is the spacer made of?
Aluminium, finished in silver.
