Nomadtech
Reference: NOM-3308001SET4
Distance

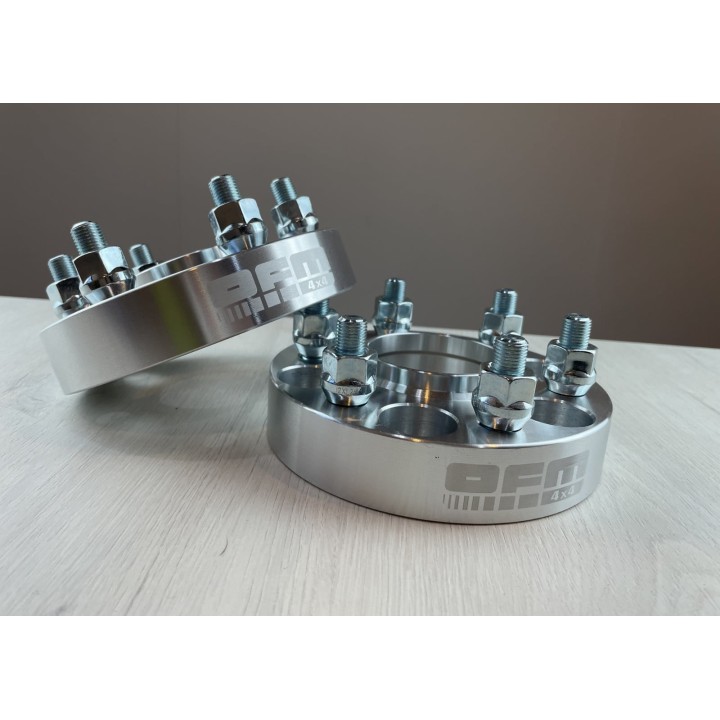

Wheel Spacers 30 mm Nissan Navara, Pathfinder 6x114.3 M12x1.25 CB 66.1 (4 pcs)
A set of four 30 mm aluminium wheel spacers for the Nissan Navara and Pathfinder with the 6x114.3 pattern. 66.1 mm centre bore and centring ring, M12x1.25 studs in grade 10.9. Enough for the front and rear axle — each gains 60 mm of track.
Wheel Spacers 30 mm Nissan Navara, Pathfinder 6x114.3 CB 66.1 (4 pcs)
Widening one axle of a pickup shows immediately — the truck looks out of balance, and with larger tyres the rubbing simply moves to the other end. Four 30 mm spacers bring both axles to the same standard.
Each axle picks up 60 mm of track, so the stance matches front and rear and the tyre has clearance both on lock and at full suspension compression.
Bolt pattern 6x114.3 | Centre bore 66.1 mm | Set 4 pcs — both axles |
Key benefits
- A full-vehicle set — identical widening front and rear.
- 60 mm of extra track per axle, meaning real room for a wider all-terrain tyre.
- An aluminium body instead of steel — less added unsprung mass.
- Grade 10.9 studs with an M12x1.25 thread, matching the mounting standard on these Nissans.
- A 66.1 mm centring ring keeps the rim seated on the hub.
What is in the box
- 4 bolt-on 30 mm spacers with their own studs — a set for the front and rear axle.
Technical data
| Thickness | 30 mm |
| Bolt pattern (PCD) | 6x114.3 |
| Centre bore (CB) | 66.1 mm |
| Centring ring | 66.1 mm |
| Thread | M12x1.25 |
| Material | aluminium |
| Colour | silver |
| Stud grade | 10.9 |
| Quantity | 4 pcs (full set, two axles) |
The set is intended for the Nissan Navara and Pathfinder with the 6x114.3 pattern and a 66.1 mm centre bore. It is the right pick if you are building the truck around off-road tyres and want the track sorted in one move rather than piece by piece.
Fitting notes
Each spacer mounts to the hub and the wheel seats on its M12x1.25 studs. Before fitting, check your rim centre bore and the arch line — 60 mm per axle is a visible difference and, with a wide tyre, may call for arch extensions. Measurement and fitting can be booked at our off-road workshop.
Why it is worth it
- Four pieces in one order, built to one standard.
- Clear specifications: 6x114.3, CB 66.1, M12x1.25, grade 10.9 studs.
- Aluminium where every extra kilogram loads the suspension hardest.
If you are widening a Navara or Pathfinder properly, this is the set to get.
Frequently Asked Questions
Is the set enough for the whole vehicle?
Yes, four spacers cover the front and rear axle.
How much wider will the track be?
60 mm on each axle, since a single spacer is 30 mm thick.
What are the mounting specifications?
6x114.3 bolt pattern, 66.1 mm centre bore, 66.1 mm centring ring and M12x1.25 studs in grade 10.9.
Is it the same spacer as in the two-piece kit?
Yes, an identical product — only the quantity in the box differs.
What is the body made of?
Aluminium, finished in silver.
