Complete Front Axle Rebuild Kit for Suzuki Samurai

Knocking on full lock, a dark oil trail running down the axle ball and noticeable play at the front wheel rarely mean three separate faults on a Samurai. They usually mean one thing: the whole front axle assembly has reached the end of its service life, and replacing a single seal buys you one season, not several years.

This kit takes the other approach. It gathers the wear parts needed to rebuild the Samurai front axle – from the axle ball sealing to the front wheel bearings – so you can strip the axle once and put it back together without chasing missing small parts halfway through the job.

Key benefits

• Every wear item of the front axle in a single order – no separate hunt for ball seals, bearings and axle shaft seals.
• King pins come with their bearings and shims, so the rebuild also covers the joint that decides how precisely the car tracks on the road.
• Axle ball sealing and axle shaft seals are renewed in one go, keeping the oil inside and mud and water outside.
• Japanese production – which matters on parts that work under load and live in mud.

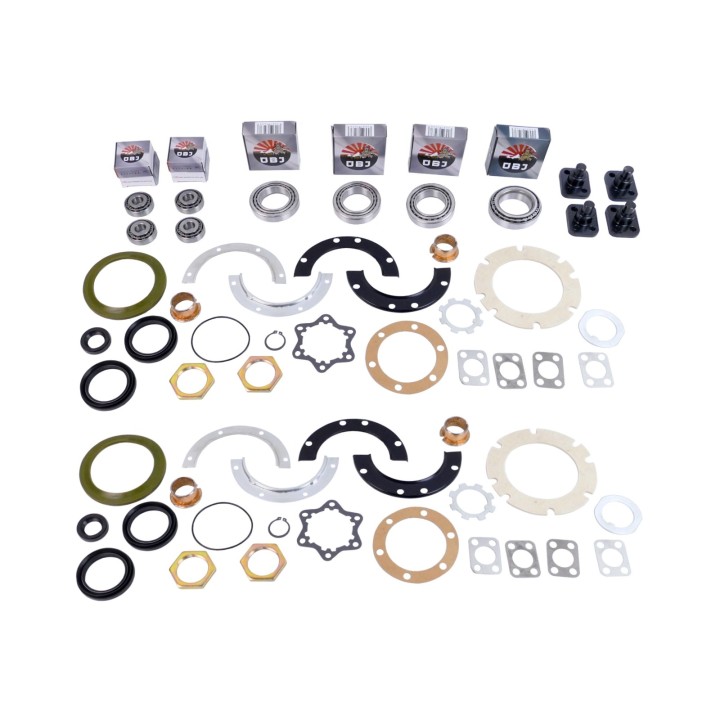

What is in the box

• Axle ball sealing set
• King pin set with bearings and shims
• Front wheel bearings
• Axle shaft seals

Specification

• Part number: NOM-45624KIT
• Model: Suzuki Samurai
• Country of manufacture: Japan

Who it is for – for a Samurai with a six-digit odometer, for a front axle that has never been opened, or for a car coming back from a long lay-up before the season starts. It is also a sensible starting point for a build aimed at real trail use, where flooded and sand-filled axle balls are the rule rather than the exception.

Installation notes

This is workshop work: both sides of the front axle have to come apart, and on reassembly the knuckle turning resistance is set with the king pin shims supplied in the kit. If you would rather not do it yourself, Szekla4x4 is more than a web shop – we run our own off-road workshop and can take the rebuild on.

Why it is worth it

• One order instead of a dozen line items from different suppliers – far less chance of stalling mid-job.
• Rebuilding the whole assembly at once costs less labour than three separate workshop visits.
• If you only need to reseal the axle ball itself, we also stock the narrower NOM-45624KITSEAL kit.

Plan the front axle rebuild before the season – with the full parts set on the bench it is a one-day job.

Frequently Asked Questions

What exactly does the kit contain?

Axle ball sealing set, king pin set with bearings and shims, front wheel bearings and axle shaft seals.

Are the king pins included?

Yes. They are one of the listed items and come together with their bearings and shims.

Which vehicle does it fit?

Suzuki Samurai – that is the model stated in the specification table of this part number.

I only need to reseal the axle ball. Is there a smaller kit?

Yes, we also stock the narrower front axle ball repair kit, part number NOM-45624KITSEAL.

Where are the parts made?

The manufacturer marks them MADE IN JAPAN.
