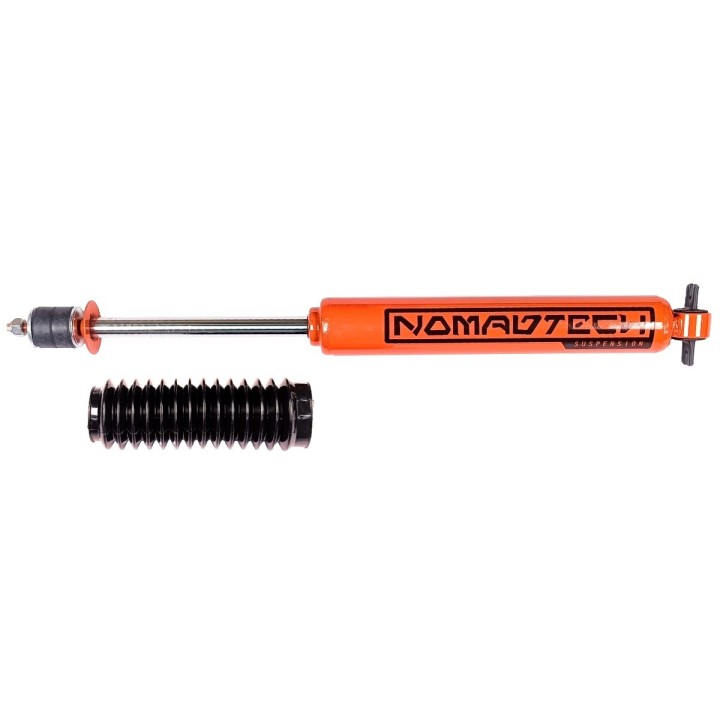

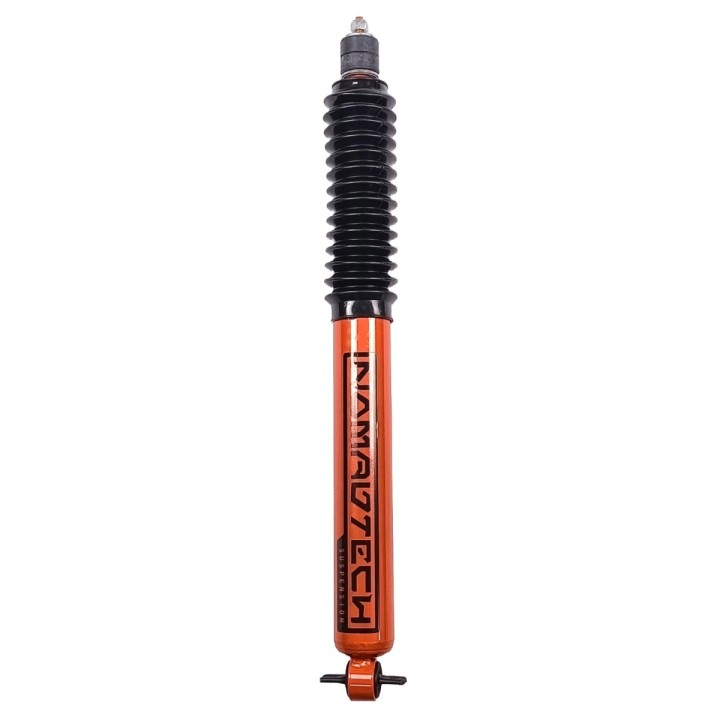

Nomadtech Front Shock Absorber +3.5-5" Lift - Jeep Grand Cherokee ZJ

Above three and a half inches of lift a short shock stops being a comfort issue and becomes a mechanical one: the wheel droops further than the rod can extend, and the whole load ends up on the shock mount.

This version is 660 mm extended - 50 mm longer than the unit for lower lifts - and is specified for the +3.5 to 5 inch range.

Key benefits

• 660 mm extended length gives droop travel that matches a tall lift, so mounts are not loaded at full extension.
• Oil-filled twin tube design with the working cylinder inside an outer shell - a proven layout for rocky terrain.
• The 57 mm body holds more oil, which helps release heat on long, fast gravel runs.
• A 20 mm piston rod adds stiffness reserve at the large articulation angles a tall lift allows.
• The same 660 mm length exists as a rear unit in this range, making a matched set easy to build.

Technical data

• Application: front axle
• Type: oil-filled twin tube
• Lift range: +3.5 - 5" (+8.75 - 12.5 cm)
• Extended length: 660 mm
• Body diameter: 57 mm
• Piston rod diameter: 20 mm
• Colour: orange
• Manufacturer: Nomadtech
• Sold: per single unit
• Fitment: Jeep Grand Cherokee ZJ 1993-1998

Who it is for: a ZJ in a serious off-road configuration - long springs, larger tyres and articulation that actually gets used. This is no longer a cosmetic lift, so the damper needs a working range to match.

Fitting notes

The price covers one shock; a front axle needs two. On a ZJ lifted beyond 3.5 inches the shock is only part of the picture - brake lines, the Panhard rod and driveshaft angles may all need attention. The Szekla4x4 workshop reviews builds like this as a whole, so a longer shock does not end up being the only correctly specified part on the car.

Why it makes sense

• A longer body chosen for a specific tall lift window, not a universal-shelf compromise.
• Simple oil damping that is easy to diagnose and swap in the field.
• Part of a consistent ZJ shock family covering low to high lifts.

If your ZJ sits on +3.5 inch springs or taller, this is the length you are looking for.

Frequently Asked Questions

How does this differ from the lower-lift version?

Mainly in length: this one is 660 mm extended, while the +1.5-3.5" version measures 610 mm.

Which lift height is it for?

A lift of +3.5 to 5 inches, roughly 8.75 to 12.5 cm.

Does the price cover a pair?

No, the manufacturer quotes it per single unit. A front axle needs two.

What kind of damping is used?

Oil-filled twin tube damping, with a 57 mm body diameter and a 20 mm piston rod.
