ELECTRIC WINCHES

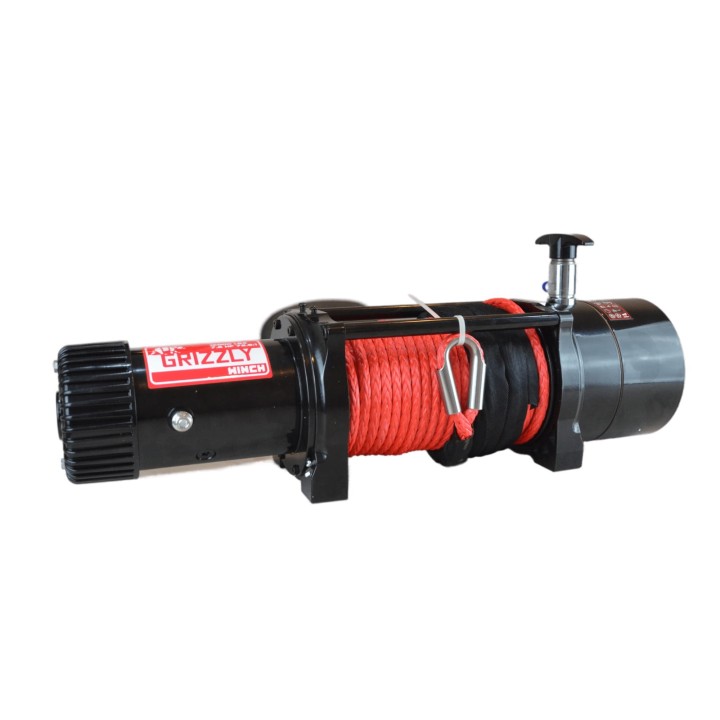

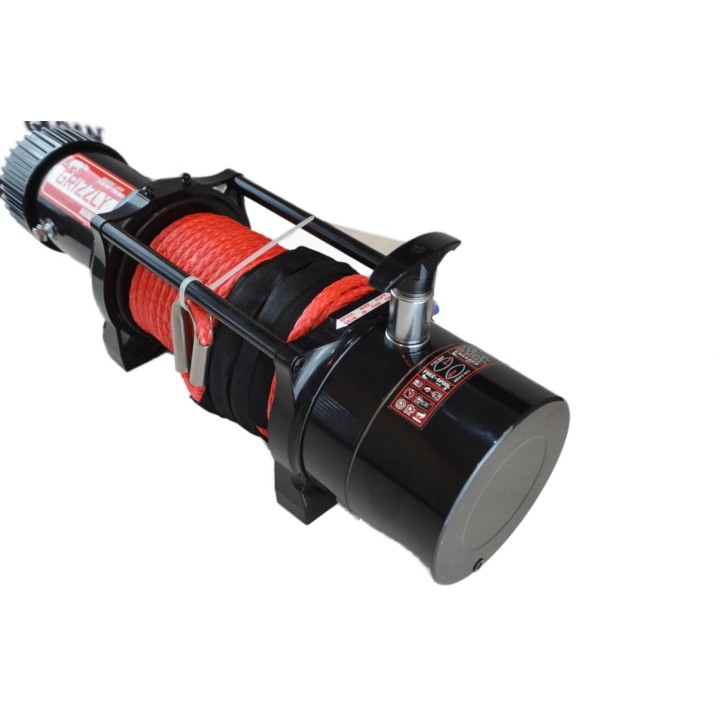

Grizzly Winch 12000 lbs 72.5:1 Synthetic, Air Free Spool
The fast Grizzly 12000 lbs winch fitted with Air Free Spool — pneumatic drum disengagement. A 7.2 HP (5.4 kW) 12 V motor and 72.5:1 reduction deliver up to 34 m/min with no load. Supplied with red 9.5 mm x 24 m synthetic rope and a black aluminium hawse fairlead. Warranty 24 months.
Grizzly Winch 12000 lbs 72.5:1 with Synthetic Rope and Air Free Spool
Climbing out of the cab knee-deep in mud just to flip a clutch lever is routine for anyone who winches a lot. Air Free Spool removes that step: you disengage the drum pneumatically, without walking to the front of the vehicle.
Otherwise this is the same fast design as the version without the air function: a 7.2 HP (5.4 kW) 12 V motor, a two-stage planetary gearbox and a 72.5:1 reduction giving 34 m/min unloaded. The rating is 12000 lbs on a single line, with 24 m of red 9.5 mm synthetic rope supplied.
Rating 12000 lbs, single line | Air Free Spool yes | Reduction 72.5:1 |
Key benefits

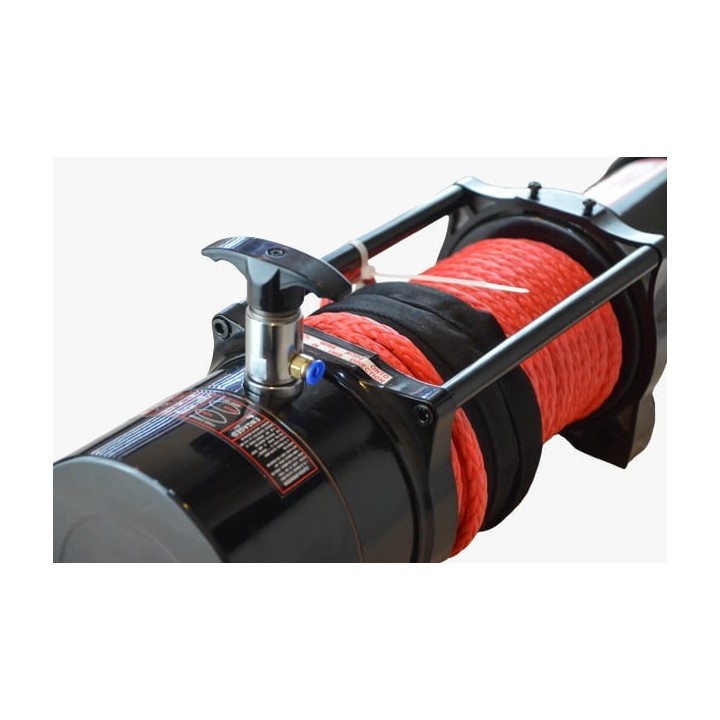

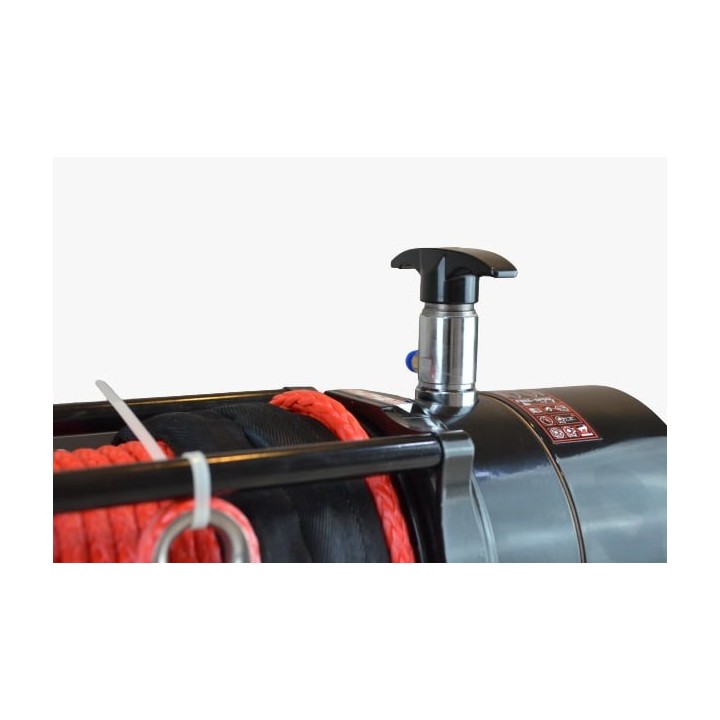

- Air Free Spool — pneumatic drum disengagement means you pay out rope without walking to the bumper and without getting your hands on a muddy lever.
- Manual clutch retained as a backup: the manufacturer lists both manual engage/disengage and the pneumatic function.
- 72.5:1 reduction with a two-stage planetary gearbox gives up to 34 m/min of line speed, several times what the 150:1 models manage.
- 7.2 HP (5.4 kW) 12 V motor keeps 13 m/min even at full load.

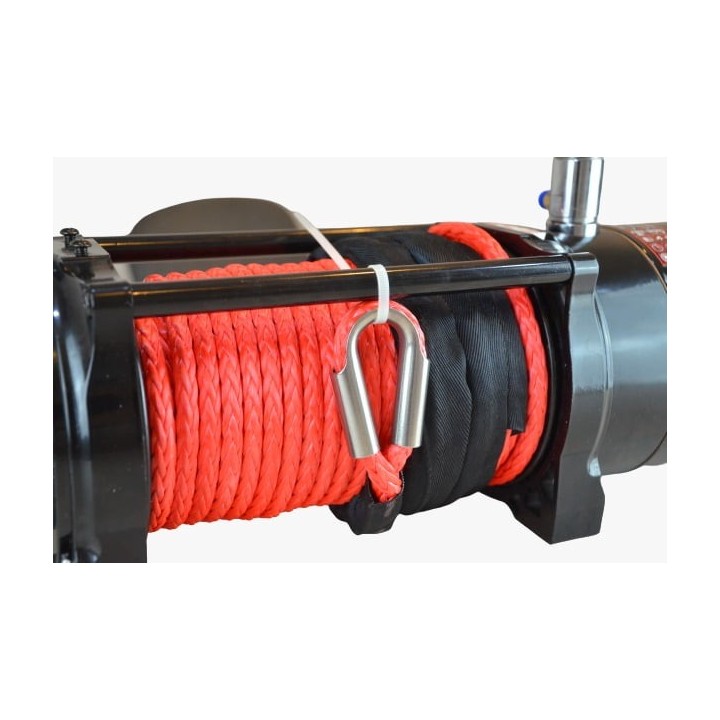

- 9.5 mm x 24 m synthetic rope with a black aluminium hawse fairlead.
- 24-month warranty stated by the distributor.
Technical data
| Rating | 12000 lbs (5454 kg), single line |
| Motor | 7.2 HP (5.4 kW), 12 V DC |
| Gearbox | planetary, 2-stage |
| Reduction | 72.5:1 |
| Clutch | manual engage / disengage |
| Air Free Spool function | yes |
| Fairlead | aluminium hawse (black) |
| Rope | synthetic 9.5 mm x 24 m (red) |
| Drum dimensions | 64 x 224 mm |
| Winch dimensions | 623 x 174 x 222 mm |
| Mounting bolt pattern | 254 x 114.3 mm |
| Weight | 38 kg |
| Warranty | 24 months |
Line performance
| Load (lbs) | None | 6000 | 8000 | 10000 | 12000 |
| Load (kg) | 0 | 2721 | 3630 | 4532 | 5443 |
| Line speed (ft/min) | 111.5 | 78.7 | 65.6 | 52.4 | 42.6 |
| Line speed (m/min) | 34 | 24 | 20 | 16 | 13 |
| Current draw (A) | 142 | 235 | 285 | 330 | 345 |
Even at the full 5443 kg the rope still travels at 13 m/min. Watch the bottom row: 345 A is the load your electrical system has to be designed around if you want that performance in practice.
The pneumatic function pays off in repetitive work: competition, back-to-back recoveries in a group, utility vehicles operated by one person. Every pay-out without walking to the bumper saves a minute and keeps your boots dry — over twenty recoveries in a day that adds up.
Remember that the air function needs a compressed air source on the vehicle. Without an onboard compressor, the simpler NOM-99077 with the same drivetrain will be the more practical buy.
Installation / notes
The body measures 623 x 174 x 222 mm with the standard 254 x 114.3 mm bolt pattern. Plan the routing for the air line to the clutch as well.
The electrical installation has to handle up to 345 A — proper cable cross-sections, clean earths and a battery in good condition. Our workshop can do the complete fit, electrical and pneumatic side included.
Why it is worth it
- Pneumatic drum release genuinely cuts the time it takes to set up a pull.
- Performance of the fastest model in the series: 34 m/min unloaded, 13 m/min at full load.
- The manual clutch stays as a fallback, plus a 24-month warranty.
If your vehicle already runs an onboard compressor and you winch often, this is the most convenient version in the range.
Frequently Asked Questions
What is Air Free Spool?
Pneumatic drum disengagement — you pay out rope without walking to the winch to move the clutch lever. The manufacturer lists this function for this model.
Can I still disengage the drum by hand?
Yes, the specification lists both manual engage/disengage and the Air Free Spool function.
Do I need an onboard compressor?
The pneumatic function needs a compressed air source. Without an onboard compressor, the NOM-99077 model with the same drivetrain is the more practical choice.
What performance does it deliver?
34 m/min unloaded at 142 A, and 13 m/min at the full 5443 kg drawing 345 A.
What warranty applies?
The distributor states 24 months.
