Nomadtech
Reference: NOMSAM31
Lift Kits
Suspension Lift Kit +3'' Suzuki Samurai Stage 1 Raptor 4x4
Three inches of lift for the Suzuki Samurai in the base build: four +3'' Raptor 4x4 leaf springs and four Silver Series dampers matched to that height. Aimed at owners whose bushings and U-bolts are still good and who only need the springs and shocks.
Suspension Lift Kit +3'' Suzuki Samurai Stage 1 Raptor 4x4
Three inches changes a Samurai's proportions visibly — the frame stops catching where you used to look for a way around, and the arches finally have room the car never had from the factory.
Stage 1 concentrates on the essentials: a full set of Raptor 4x4 leaf springs and dampers specified for the +3'' height, with nothing added that you do not need if the rest of your spring hardware is sound.
Lift height +3'' | Dampers Raptor 4x4 Silver Series, twin tube | Brand Raptor 4x4 |
Key benefits
- Three inches of lift — the manufacturer names increased clearance and improved off-road ability as the primary result.
- Genuine room for a big tyre — larger wheel fitment is stated directly in the kit specification.
- Dampers matched to the height — the Silver Series units are the +3'' lift version, working inside their travel rather than against the stops.
- Twin tube 50/38/16 mm — a 50 mm body, 38 mm piston and 16 mm rod, figures you can compare with anything else on the shelf.
- Trail and tarmac balance — the manufacturer's own description, which matters for a car that still uses the road.

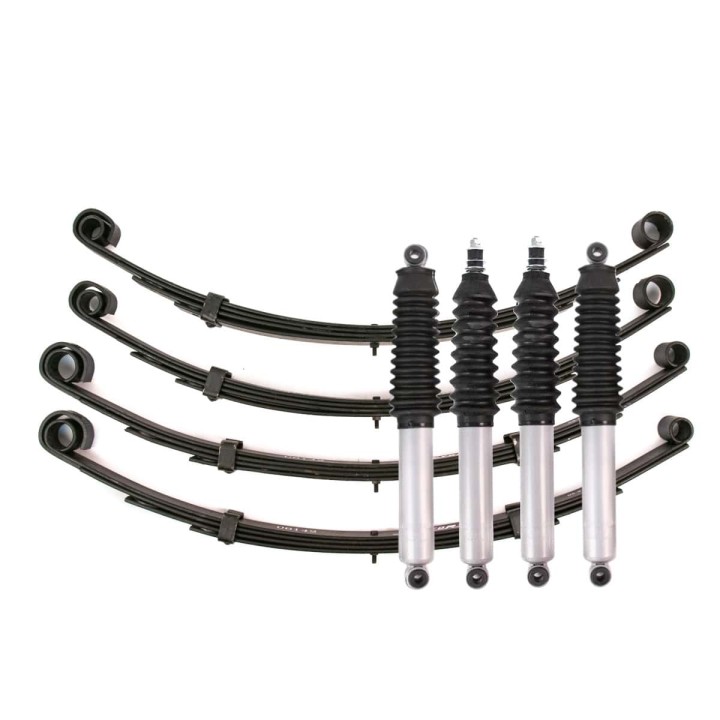

What is in the kit
- 2 front +3'' Raptor 4x4 leaf springs
- 2 rear +3'' Raptor 4x4 leaf springs
- 2 front Raptor 4x4 Silver Series +3'' lift dampers
- 2 rear Raptor 4x4 Silver Series +3'' lift dampers
The parts list covers springs and dampers only — bushings and U-bolts are not included, so source them separately if yours are worn. Higher trim levels in this range include the bushing set.
Technical data
- Vehicle: Suzuki Samurai
- Lift height: +3''
- Trim level: Stage 1
- Damper type: twin tube
- Damper outer diameter: 50 mm
- Piston diameter: 38 mm
- Rod diameter: 16 mm
- Brand: Raptor 4x4
- Part number: NOMSAM31
It suits owners building a Samurai around bigger tyres and harder terrain who do not want to pay twice for parts they have just replaced. It is a sensible choice for a car that has already had some suspension work done.
Fitting notes
At three inches it is worth checking brake line lengths, driveshaft angles and steering behaviour straight away — the higher the lift, the more of those details matter. The Szekla4x4 workshop handles this daily, so fitting and measurement can be booked together.
Why this kit
- A basic but coherent set: springs and dampers from one brand for one lift height.
- Real damper figures instead of vague talk about off-road valving.
- Room to expand — add bushings and U-bolts separately when they are due.
Not sure whether three inches is too much for your Samurai? Ask us and we will explain what changes compared with the +2'' version.
Frequently Asked Questions
What comes in the kit?
Two front and two rear +3'' Raptor 4x4 leaf springs, plus two front and two rear Raptor 4x4 Silver Series dampers in the +3'' lift specification.
Are leaf-spring bushings included?
No — the Stage 1 parts list covers springs and dampers only. Bushings come with the higher trim levels in this range, or you can buy them separately.
Which dampers are supplied?
Raptor 4x4 Silver Series twin-tube units: 50 mm outer diameter, 38 mm piston, 16 mm rod, in the +3'' lift version.
Is the kit vehicle-specific?
Yes, the manufacturer's data sheet lists it for the Suzuki Samurai.
