Reference: NOMSAM33ECO
Lift Kits
Suspension Lift Kit +3" Suzuki Samurai Stage 3 Sekureco
A complete +3" lift for the Suzuki Samurai in one part number: four Raptor 4x4 leaf springs, four Sekureco dampers matched to that ride height and a full set of yellow polyurethane bushings. More clearance, room for bigger tyres, predictable road manners.
Suspension Lift Kit +3" Suzuki Samurai Stage 3 Sekureco
Stock Samurai ride height runs out exactly where the interesting terrain starts. This Stage 3 package lifts the car three inches using a full set of new leaf springs and shocks, so you are not stacking blocks or add-a-leaves to get there.
Everything is matched: Raptor 4x4 +3" leaf springs on both axles, Sekureco dampers specified for that ride height, and a complete set of yellow polyurethane bushings. One part number instead of assembling a lift piece by piece.
Lift +3" (approx. 76 mm) | Suspension type Leaf springs, front and rear | Scope Springs, shocks and bushings |
Key benefits
- More clearance along the whole chassis, so the frame and axles meet fewer rocks and rut edges.
- Room for larger tyres, which is where a lift actually pays off off-road.
- Springs and dampers specified for the same ride height, so the suspension does not run out at the ends of its travel.
- Full polyurethane bushing set included, so worn rubber goes out during the same job rather than a second teardown.
- The maker aims at a compromise: better off-road behaviour while road manners stay predictable.

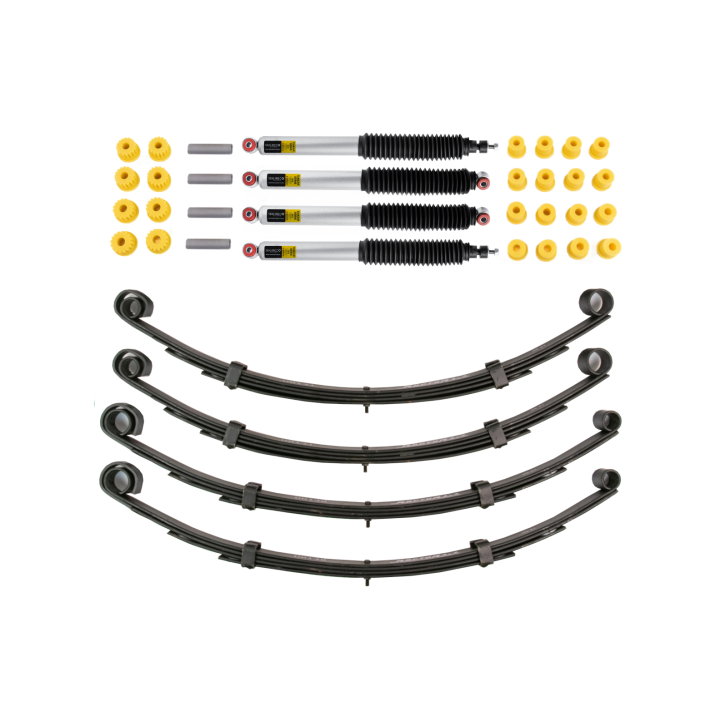

What is in the box
- 2 front +3" Raptor 4x4 leaf springs
- 2 rear +3" Raptor 4x4 leaf springs
- 2 front Sekureco +3" shock absorbers
- 2 rear Sekureco +3" shock absorbers
- complete set of yellow polyurethane bushings
Technical data
| Lift height | +3" |
| Vehicle | Suzuki Samurai |
| Leaf springs | Raptor 4x4 +3", front and rear |
| Shock absorbers | Sekureco +3", front and rear |
| Bushings | Complete polyurethane set, yellow |
| Part number | NOMSAM33ECO |
Who it is for. This is the kit for a Samurai that sees real trails at the weekend and tarmac during the week. Three inches is the height where the car still handles sensibly while leaving headroom for expedition tyres and a loaded rack.
Fitting notes
The job covers leaf springs and dampers on both axles, which means a lift or a pit, and undoing spring U-bolts and shackles. Our off-road workshop at Szekla4x4.pl builds these conversions regularly if you would rather have it fitted and set up in one go. After lifting the car, always check the alignment, brake hose length and driveshaft working angles.
Why buy it
- A complete lift in a single line item: springs, dampers and bushings from one matched kit.
- Raptor 4x4 leaf springs are a proven answer on this model rather than an improvised parts-bin fix.
- Three inches is the safest starting point if the Samurai still has to work as a road car.
If bigger tyres and real trail use are the plan, this is a sensible first step — talk to us if you want the supporting parts matched to it.
Frequently Asked Questions
How much lift does this kit give?
Three inches, roughly 76 mm. The height comes from the Raptor 4x4 +3" leaf springs on both axles, and the Sekureco dampers are specified for the same lift.
Are the shock absorbers included?
Yes — two front and two rear Sekureco dampers in the +3" specification are part of the kit, so nothing has to be sourced separately.
Do I get new suspension bushings?
Yes, a complete set of yellow polyurethane bushings is included, so worn leaf spring bushings get replaced during the same job.
Will larger tyres fit after fitting this kit?
The supplier lists room for larger wheels as one of the effects of this lift. The exact size depends on whether you also run wider arches and how the steering stops are set, so it is worth deciding case by case.
