Raptor 4x4
Reference: RAP-06146
Leaf Springs

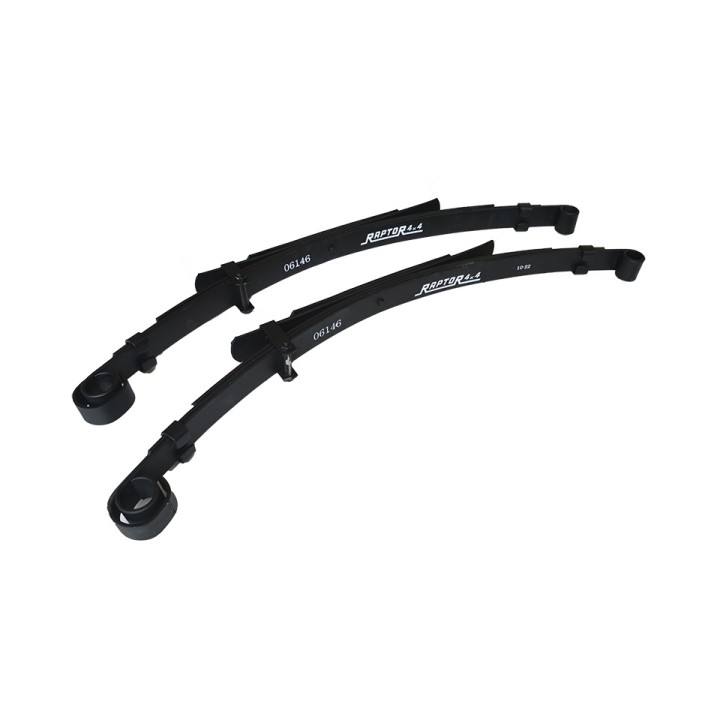

Raptor 4x4 Rear Leaf Springs +2" (50 mm) Suzuki Samurai – Pair
A pair of Raptor 4x4 rear leaf springs for the Suzuki Samurai, adding roughly 2" (50 mm) of height. Supplied as a complete axle set so both sides share the same rate, and designed to pair with the matching +2" front packs from the same range.
Raptor 4x4 Rear Leaf Springs +2" (50 mm) Suzuki Samurai – Pair
The rear of a Samurai always gives up first. Load, a spare wheel, a jerry can, maybe a towbar – after a few seasons the leaves settle, the tail sags and what little suspension travel remains disappears in the first serious rut.
This pair restores the rear end and lifts it by roughly 50 mm at the same time. Both sides come together, so the body sits square afterwards and the spring rate is identical left and right.
Fitment Suzuki Samurai, rear axle | Lift +2" / approx. 50 mm | Supplied as 2 springs (pair) |
Key benefits
- Around 50 mm of lift – the rear returns to a proper ride height and stops squatting under load.
- Complete axle set – no pairing a fresh spring with a tired one.
- Matches the +2" front packs – combined with RAP-06145A the car rises evenly instead of nose-down or tail-high.
- New leaves rather than re-arching – predictable behaviour from the first kilometre.
What is included
- 2 Raptor 4x4 rear leaf springs (complete axle set)
Technical data
- Manufacturer: Raptor 4x4 (Saglietti S.r.l.)
- Part number: RAP-06146 (manufacturer code 06146)
- Axle: rear
- Lift: 2 inches, approx. 50 mm
- Weight: 21 kg per pair
- Quantity: 2 pieces (pair)
Who it is for
For a Samurai that actually works – carrying kit, towing a small trailer, or simply carrying thirty years of service on its back. If the tail has visibly dropped and the tyre touches the arch when the car is loaded, new leaves do more than any spacer or shackle.
Fitting notes
On the rear axle the U-bolts and hanger fasteners are usually the slow part; on cars of this age they are often heavily corroded. Plan for new bushings and check the dampers, because with 50 mm of extra height the original units may be close to full extension. With larger lifts it is also worth checking the driveshaft working angle.
Why choose this set
- A concrete lift figure of roughly 5 cm quoted by the manufacturer.
- One order covers the whole axle.
- Fully matched to the +2" front pair from the same catalogue.
The matching front set with the same lift is listed as RAP-06145A.
Frequently Asked Questions
Is this a complete axle set?
Yes – the price covers two springs, one per side.
How much will the rear rise?
The manufacturer quotes roughly 5 cm, which corresponds to a 2-inch lift.
Can I fit the rear only?
Technically yes, but the car will sit higher at the back. For an even lift they are normally fitted together with the matching front pair, RAP-06145A.
How heavy is the pair?
21 kg, as stated by the manufacturer for the two springs together.
