Raptor 4x4
Reference: RAP-06154
Shocks

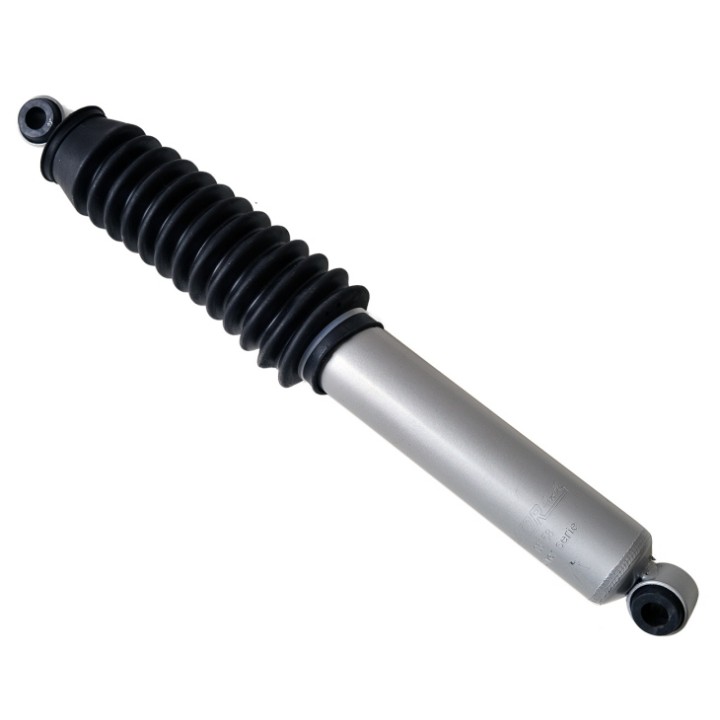

Raptor 4x4 HD Rear Shock Absorber Suzuki Samurai – Standard Height
Reinforced Raptor 4x4 rear damper for a Suzuki Samurai at standard ride height. Stronger and more capable than the factory unit, with a black protective boot over the rod. Weight 1 kg.
Raptor 4x4 HD Rear Shock Absorber Suzuki Samurai – Standard Height
A worn rear damper on a Samurai shows itself fastest with a loaded boot: the back starts to float over bumps and the car turns nervous on corrugations. On a body this light that is not a comfort issue – it is about keeping the rear end under control.
This unit suits standard-height suspension but is built stronger than the factory part. Ride height and geometry stay as they are; you simply get proper damping back where it is missed most.
Fitment Suzuki Samurai, rear axle | Ride height standard, no lift | Build reinforced, rod boot |
Key benefits
- No change in ride height – fit and drive, with no knock-on work on hoses, angles or geometry.
- Reinforced build – the manufacturer quotes higher strength and capability than the original damper.
- Black rod boot – protects the seal from sand and mud, which matters daily on the rear axle of a working 4x4.
- Pairs with the front RAP-06153 – both axles get units from the same line with the same build specification.
Technical data
- Manufacturer: Raptor 4x4 (Saglietti S.r.l.)
- Part number: RAP-06154 (manufacturer code 06154)
- Axle: rear
- Intended for: standard-height suspension
- Build: reinforced compared with the original damper
- Supplied with: black protective rod boot
- Weight: 1 kg
Who it is for
For a standard-height Samurai that still has work to do – forest tracks, a plot of land, light off-road use. It is also a sound choice during a restoration: a reinforced damper costs little more than a basic replacement and copes better with what these cars actually do.
Fitting notes
Dampers should be replaced in pairs on an axle, otherwise the rear works asymmetrically. Inspect the bushes and mounts while you are there, since on cars of this age they are a common source of knocking. If the vehicle is lifted, this is not the right part – the manufacturer lists versions calculated for specific lift heights.
Why choose it
- A reinforced unit with no effect on ride height.
- Protective rod boot included as standard.
- Direct counterpart to the front RAP-06153 for a complete set.
The front unit for standard-height suspension is RAP-06153.
Frequently Asked Questions
Is it suitable for a lifted vehicle?
No. This version is intended for standard-height suspension. Lifted cars are covered by separate parts, such as RAP-061512 for a 2" lift and RAP-061514 for 5".
Is the rod boot included?
Yes – the manufacturer's data lists a black protective rod boot.
Should both dampers on the axle be replaced?
Yes, dampers are replaced in pairs, otherwise the left and right sides work with different characteristics.
What does it weigh?
1 kg according to the manufacturer.
