Raptor 4x4
Reference: RAP-06157
Shocks

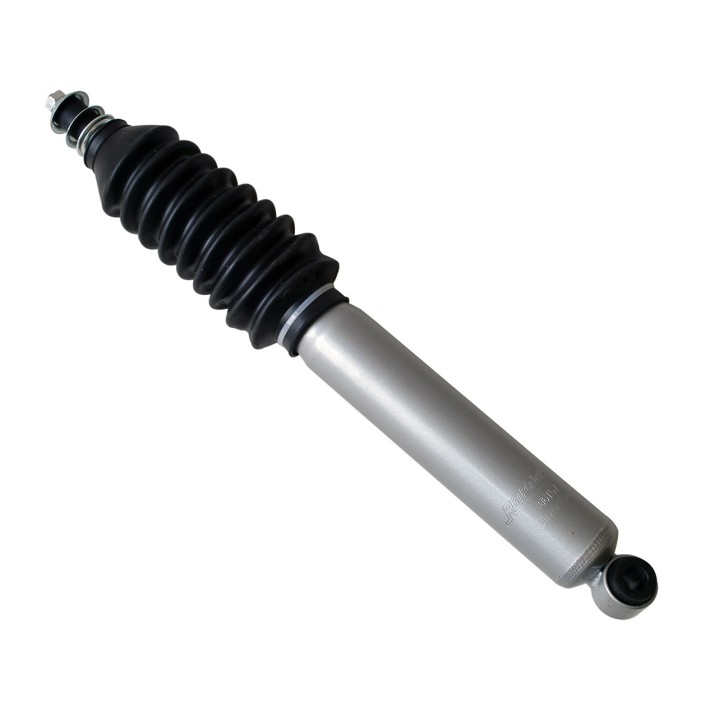

Front Shock Absorber Raptor 4x4 +3" Lift Suzuki Samurai
A Raptor 4x4 front shock absorber for the Suzuki Samurai on a +3" (7.5 cm) lift. Twin-tube construction with a 16 mm rod and a 50 mm outer body diameter, 325 / 505 mm dimensions. The manufacturer recommends it for general, medium-duty use. Price per piece.
Front Shock Absorber Raptor 4x4 +3" Lift Suzuki Samurai
A +3" lift changes how a Samurai's suspension works — the leaf springs operate in a different range, and the factory damper, chosen for standard ride height, no longer suits it. You feel the result straight away: a car that bounces over rough ground and damping that cannot keep up with the travel.
This shock is built for that exact ride height. Raptor 4x4 describes it as suitable for general, medium-duty use — in other words, for a Samurai that sees regular off-road work without carrying a permanent heavy build.
Construction Twin-tube | Rod diameter 16 mm | Body 50 mm outer diameter | Dimensions 325 / 505 mm |
Key benefits
- Twin-tube construction — a proven, simple layout that copes well with dust and mud day after day.
- A 16 mm rod and 50 mm body are checkable figures, so you know what you are buying instead of trusting a vague "heavy-duty" label.
- Dimensions of 325 / 505 mm and a stated +3" lift application give you a clear reference point when matching parts to your own setup.
- A general, medium-duty damping character — a workable balance of comfort and control if the car is not permanently loaded.
Technical data
| Vehicle | Suzuki Samurai |
| Fitting position | Front axle |
| Construction | Twin-tube |
| Rod diameter | 16 mm |
| Body outer diameter | 50 mm |
| Dimensions | 325 / 505 mm |
| Intended for | A +3" (7.5 cm) lift |
| Weight | 2 kg |
| Manufacturer code | 06157 |
| Manufacturer | Raptor 4x4 |
This suits a +3" lifted Samurai used for recreational and touring off-road work without a permanent heavy build. If you carry a winch, steel bumpers and gear all year round, go for the Heavy Duty version (RAP-06155) instead — Raptor positions that one specifically for heavy loads.
Fitting notes
The price is per piece. Shocks on one axle should be replaced in pairs, since mixing old and new leaves each side damping differently. Compare the 325 / 505 mm dimensions with what is currently on the car before ordering — and if you would rather have someone check it who does this daily, our off-road workshop can help you put the set together.
Why it is worth it
- Real dimensions and construction data instead of marketing claims alone.
- A damper built for one defined lift height, not a generic guess-and-fit replacement.
- The same range includes an HD version and a rear-axle counterpart, so a matched set is easy to build.
If your Samurai runs a +3" lift and you want a shock with a specification you can verify, this one fits the brief.
Frequently Asked Questions
What are the dimensions of this shock absorber?
The manufacturer lists 325 / 505 mm, a 16 mm rod diameter and a 50 mm body outer diameter.
What type of construction is it?
A twin-tube shock absorber.
What lift height is it made for?
A +3" lift, that is 7.5 cm.
How does it differ from the HD version (RAP-06155)?
The manufacturer describes this one as suitable for general, medium-duty use. The HD version has firmer damping and is aimed at heavy loads and heavy use.
Does the price include a pair?
No, the price is per piece.
