Raptor 4x4
Reference: RAP-06781
Steering stabilizers

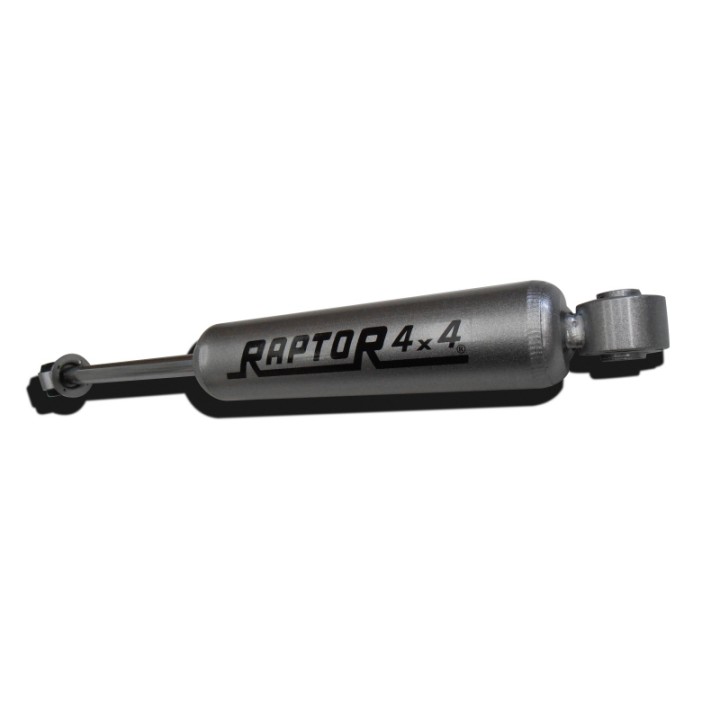

HD Steering Damper Raptor 4x4 Suzuki Samurai (Silver)
A heavy-duty Raptor 4x4 steering damper for the Suzuki Samurai, roughly twice the size of the standard unit and running a 15 mm piston. It settles the wheel over ruts and corrugations, especially on larger tyres. It replaces the original with no brackets and no modification.
HD Steering Damper Raptor 4x4 Suzuki Samurai (Silver)
A steering wheel that starts moving on its own over corrugations or ruts is a Samurai classic, and wider tyres make it worse. A tired factory steering damper passes every hit at the wheel straight into your hands, and it gives up faster as loads increase.
This Raptor 4x4 unit is roughly twice the size of the standard part and runs a 15 mm piston. It goes exactly where the original sits, with no brackets and no modification.
Piston diameter 15 mm | Fitment direct replacement, no brackets | Finish silver body, black rod boot |
Key benefits
- A 15 mm piston in a body around twice the standard size: more oil and more working area mean a calmer wheel and less tendency to fade when hot.
- It bolts to the factory mounting points, so there are no adapters or brackets to buy separately.
- Reinforced eyelet bushings limit the play that shows up in cheap dampers after a single season.
- The black boot keeps grit and stones off the rod, which is the usual cause of a leaking damper.
- The manufacturer lists compatibility with Suzuki Samurai, SJ and Santana, all versions.
Technical data
| Vehicle | Suzuki Samurai (manufacturer also lists SJ and Santana, all models) |
| Type | heavy-duty steering damper |
| Piston diameter | 15 mm |
| Size | approx. twice the standard unit |
| Fitment | replaces the original with no modification and no brackets |
| Equipment | black rod boot, reinforced eyelet bushings |
| Body colour | silver |
| Weight | 2.07 kg (Raptor 4x4 manufacturer data) |
| Part number | RAP-06781 / manufacturer code 06781 |
Who it is for. Samurais on tyres wider than stock, cars driven on corrugations and gravel, and anyone simply replacing a worn factory damper. On a vehicle without a tall lift this is the simplest route to a settled steering wheel.
Fitting notes
The swap takes a quarter of an hour and comes down to two bolts in the factory locations. The distributor separately offers a bracket that lets you mount the damper below the drag link if you want to move it from the standard position. On a heavily lifted car, check that the damper does not foul or reach the end of its travel at full suspension extension.
Why buy it
- A genuine gain in comfort and steering confidence for very little money.
- No modifications at all: it uses the factory points.
- Built with larger tyres in mind, not just stock wheels.
If your Samurai runs more than three inches of lift, get in touch — the version with brackets and a return spring suits those cars better.
Frequently Asked Questions
Are extra brackets needed?
No. The manufacturer states it replaces the original unit without brackets or modification.
How does it differ from the factory damper?
It is around twice the size, runs a 15 mm piston and uses reinforced eyelet bushings.
Does it only fit the Samurai?
The manufacturer lists Suzuki Samurai, SJ and Santana, all versions.
Can it be mounted below the drag link?
Yes, the distributor offers a separate bracket for that position.
Is the shaft protected?
Yes, the damper comes with a black rod boot.
