Raptor 4x4 +3" Suspension Lift Kit for Suzuki Vitara (Complete)

A Vitara on standard suspension runs out of ideas exactly where the terrain gets serious: a wheel lifts off the ground and any larger tyre starts fouling the arch. Raising the car on springs alone usually just creates a new set of problems, from driveline angles to axle breathing.

This package is assembled as one job. Alongside springs and dampers you get front links, a front axle relocation kit and a rear axle breather hose — the parts people normally remember only after their first trip out.

Key benefits

• More suspension articulation — wheels stay in contact with the ground longer on twisted terrain, so you reach for the locker or a strap less often.
• Room for larger tyres — three inches of suspension lift is the starting point for a bigger tyre diameter.
• A kit, not a collection of parts — springs, dampers and geometry components come from one manufacturer as one package.
• Front axle relocation kit included — the part that keeps driveline angles sensible once the car sits higher.
• Rear axle breather hose — a small item that genuinely protects the axle during water crossings.

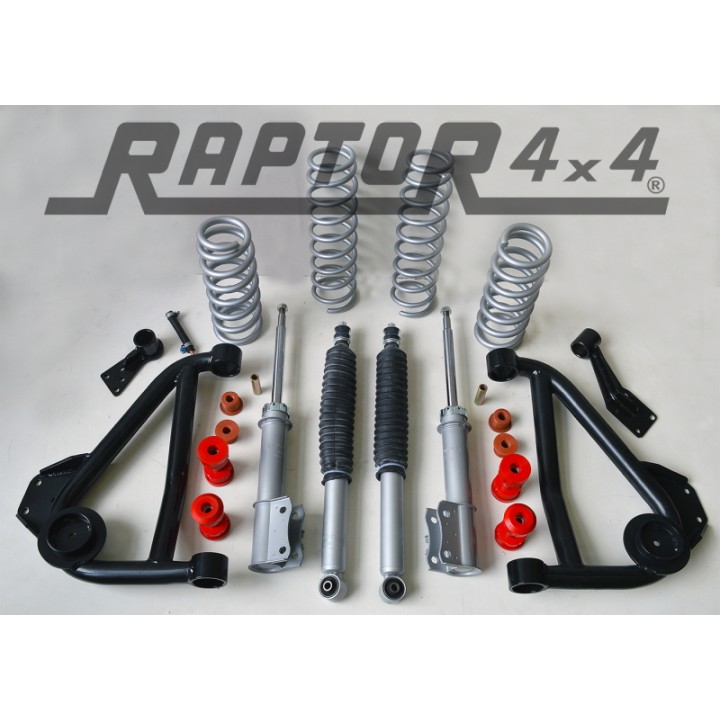

What is in the kit

• 4 Raptor 4x4 springs, silver finish
• 4 Raptor 4x4 shock absorbers, silver finish
• Front links from Raptor 4x4
• Front axle relocation kit
• Rear axle breather hose

Technical data

• Lift height: +3"
• Coverage: both axles (front and rear)
• Manufacturer: Raptor 4x4
• Application: Suzuki Vitara
• Spring and shock finish: silver

Extending the kit

The package can be complemented with parts ordered separately: an adjustable rear A-arm (RAP-09183), a set of adjustable rear links (RAP-09131) and heavy-duty rear springs (RAP-09143S). These suit cars carrying more weight at the back or builds aimed at harder terrain, where control over rear axle positioning matters.

Who it is for. Vitara owners who want a genuinely capable off-road vehicle rather than just extra clearance for bigger tyres. It earns its keep on harder trails and anywhere keeping the wheels on the ground decides whether you get through.

Fitting notes

• This changes suspension geometry and driveline angles, so installation is best left to a workshop that has lifted cars of this type before.
• Afterwards, have the geometry checked and inspect brake line routing and breathers.
• Three inches of lift shifts the centre of gravity and changes road behaviour — give yourself time to adjust.
• Szekla4x4.pl runs an off-road workshop, so fitting and later servicing can be handled by us.

Why buy it

• One kit instead of sourcing springs, dampers and small parts from different places.
• It includes what cheap lifts usually skip: front axle relocation and rear axle breathing.
• The upgrade path is already mapped out by the manufacturer — adjustable links and HD springs can follow later.

If your Vitara is meant to go further than a forest track, this is where the suspension rebuild starts.

Frequently Asked Questions

What exactly is included?

Four Raptor 4x4 springs in silver, four Raptor 4x4 shock absorbers in silver, Raptor 4x4 front links, a front axle relocation kit and a rear axle breather hose.

How much does it lift the car?

The kit is specified for a +3 inch lift and covers both axles.

Do I need to buy anything else?

The kit is complete within its scope. The manufacturer does offer optional additions ordered separately: an adjustable rear A-arm (RAP-09183), a set of adjustable rear links (RAP-09131) and heavy-duty rear springs (RAP-09143S).

Which vehicle does it fit?

The Suzuki Vitara. The distributor lists it against the 1989-1998 generation, so it is worth confirming your car's exact model year and body style before ordering.

Does installation need a workshop?

It is a substantial change to the suspension and geometry, so fitting is best done by a workshop experienced with lifting 4x4s. A geometry check afterwards is essential.
