Front Lift Springs +7 cm Suzuki Vitara 1989-1998 - Raptor 4x4

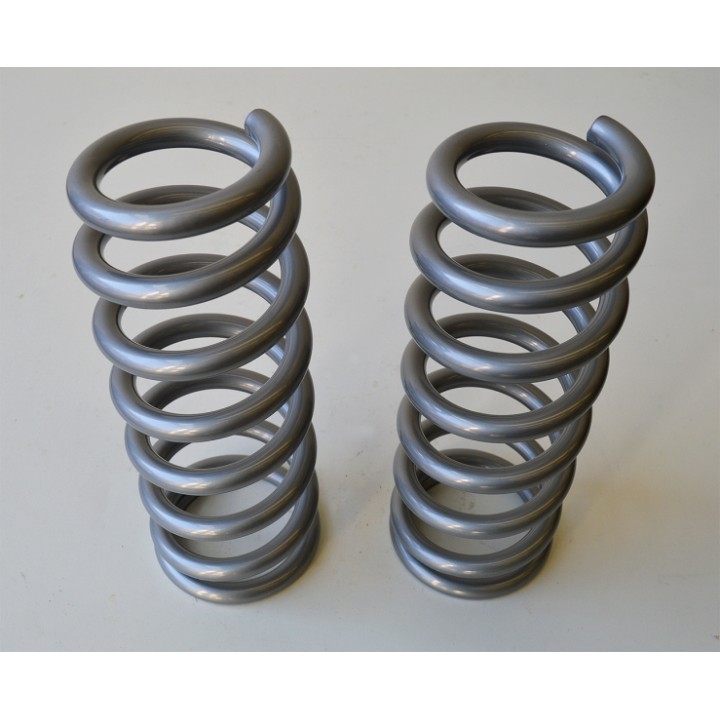

A pair of Raptor 4x4 front springs that raise a Suzuki Vitara by 7 cm. Silver finish, made for the 1989-1998 generation. One condition from the manufacturer: fit them together with the Raptor 4x4 RAP-09181 heavy duty control arms, otherwise the kingpin working angle ends up wrong.
Front Lift Springs +7 cm Suzuki Vitara - Raptor 4x4 (RAP-09141S)
Stock Vitara ground clearance runs out exactly where the interesting terrain begins. Seven centimetres more at the front changes your approach angle, frees up room for a taller tyre and pulls the front axle out of the range where every second rut ends with a hit on the underbody.
This is a pair of Raptor 4x4 front springs from the Italian manufacturer in Vado Ligure that has been building suspension for older Suzuki models for years. It is not a stand-alone part: the manufacturer states plainly that these springs go in together with the RAP-09181 heavy duty control arms.
Vehicle Suzuki Vitara 1989-1998 | Axle front, set of 2 | Lift +7 cm | Finish silver |
Key benefits
- 7 cm of front lift - more clearance under the front axle and a better approach angle on climbs.
- Sold as a pair for the whole front axle, so both sides sit evenly without hunting for a matching single spring.
- Purpose-built lift springs rather than a stock spring on a spacer - the height comes from the spring itself.
- Silver finish.
- A catalogue part (Raptor 4x4 code 09141S), so the matching arms and shocks come from the same family.
What is in the box
- 2 x front lift spring +7 cm
Technical data
- Brand: Raptor 4x4 (Saglietti S.r.l., Italy)
- Manufacturer part number: 09141S
- Application: Suzuki Vitara, 1989-1998
- Axle: front
- Quantity: 2 pcs (per axle set)
- Lift height: +7 cm
- Finish: silver
This is for first-generation Vitara owners building a truck for real terrain - bigger tyres, mountain trips, forest tracks - not for the look of a raised body. Seven centimetres is the point where front suspension geometry needs correcting, which is why the manufacturer treats the RAP-09181 arms as part of the same job rather than an optional extra.
Fitting notes
- The original front control arms must be replaced with the Raptor 4x4 RAP-09181 heavy duty arms - at this lift height the stock arms leave the kingpin at the wrong working angle.
- For this lift range Raptor 4x4 offers extended shock absorbers: RAP-09151 (front right), RAP-09152 (front left) and RAP-09153 (rear), all listed for vehicles with a 4-7 cm lift.
- Plan a front axle alignment check once the ride height has changed.
Why buy these
- A complete axle pair with a lift height the manufacturer actually states: +7 cm.
- Part of a catalogue that also covers arms and shocks matched to the same height, so the suspension stays consistent.
- Szekla4x4.pl is also an off-road workshop, so parts selection and fitting can happen in one place.
If you are serious about lifting the front of your Vitara, order these springs together with the RAP-09181 arms - that is the only configuration the manufacturer approves.
Frequently Asked Questions
How many springs are in this listing?
Two - a complete front axle set. The manufacturer sells them as a "coppia", i.e. a pair.
Can I fit the springs without changing the control arms?
No. Both the distributor and Raptor 4x4 state that the RAP-09181 heavy duty front arms must go in with these springs, because at this lift height the stock arms leave the kingpin at the wrong angle.
Which Vitara do they fit?
The Suzuki Vitara built between 1989 and 1998.
How much do they raise the front?
By 7 cm - the figure given both on the distributor page and in the manufacturer's catalogue name (09141S, +7 CM).
Which shock absorbers suit this lift?
Raptor 4x4 offers extended shocks listed for vehicles with a 4-7 cm lift: RAP-09151 front right, RAP-09152 front left and RAP-09153 rear.
