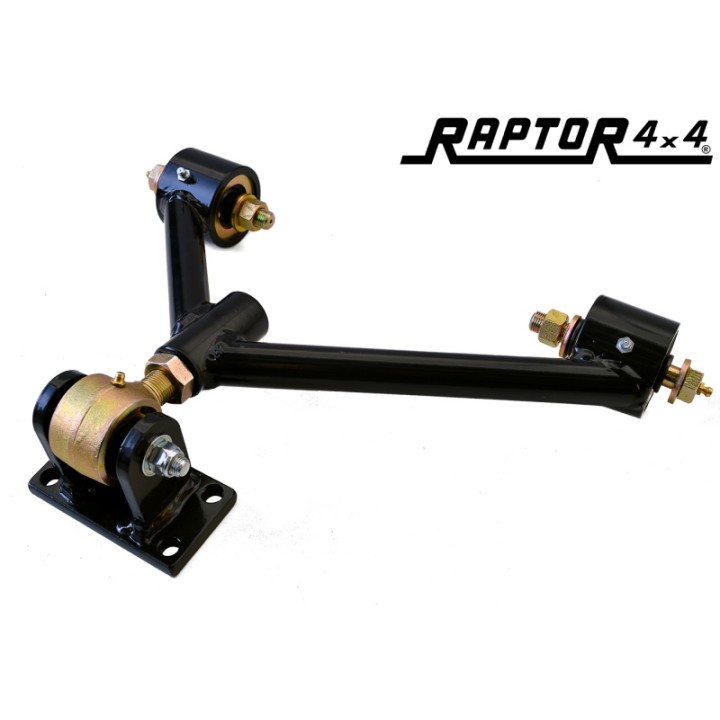

Rear A-Arm (Sergeant) HD Raptor 4x4 – Suzuki Vitara

Lift a Vitara by 5 cm or more and the rear axle starts wandering sideways, while the factory central A-arm ends up working at an angle it was never drawn for. That is the point where replacing it stops being a styling choice and becomes part of doing the lift properly.

Raptor 4x4 built this arm around its own 2.5-inch Raptor Joint on the axle side and polyurethane bushings on the chassis side. Add length adjustment and you can actually set the rear axle angle instead of accepting whatever the lift leaves you with.

Key benefits

• Adjustable length so you can set rear axle angle after the lift rather than leaving the driveshaft and joints running at a random angle.
• 2.5" Raptor Joint on the axle side allows a wide range of articulation, which keeps a wheel loaded for longer on cross-axle obstacles.
• Polyurethane chassis bushings are stiffer than rubber, so rear geometry stays repeatable under load.
• Grease nipple and rebuildable joint – a part you service rather than replace as a whole after one season.
• 4.5 kg of hardware tells you this is built for real off-road loads, not a lightweight substitute.

Technical data

• Manufacturer: Raptor 4x4 (catalogue code 09183)
• Type: rear triangulated control arm (sergeant), adjustable length
• Axle-side joint: 2.5" Raptor Joint, greasable, rebuildable
• Chassis-side bushings: polyurethane
• Recommended lift: from +5 cm upwards
• Weight: 4.5 kg
• Vehicle: Suzuki Vitara, 1989–1998

Who it is for: owners of lifted Vitaras that actually go off-road. If the rear end feels loose through corners after the lift and the suspension runs out of travel early on cross-axle terrain, this is where sorting out the rear axle starts.

Fitting notes

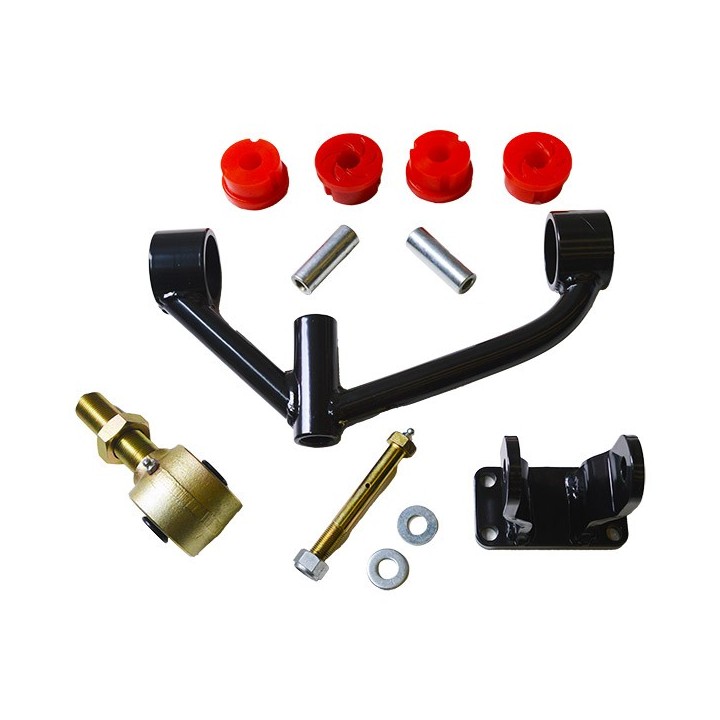

Two mounting options are available. You can run M14 bolts, which means enlarging the mounting holes in the chassis but gives the most solid location. Or you can reuse the original 12 mm bolts together with the reducing sleeves supplied in the kit, leaving the chassis untouched.

For lifts in the 5–10 cm range the manufacturer offers a separate axle-mounted spacer for this arm (catalogue code 09184), worth keeping in mind when you order. Set the arm length with the vehicle back on its wheels at the final ride height.

Why it is worth it

• It fixes the actual problem of a lifted Vitara – rear axle positioning – instead of hiding it.
• Joint and bushings can be greased and rebuilt, so running costs stay spread over years.
• Made by Raptor 4x4 in Italy specifically for this model, not adapted from a universal part.

If your Vitara lift goes past 5 cm, put this arm on the list straight away and stop chasing rear geometry after every trip.

Frequently Asked Questions

What lift height is this arm intended for?

Raptor 4x4 recommends it for vehicles lifted +5 cm and above. At that height the factory arm is already working outside its comfortable range, and the adjustable length lets you correct the rear axle angle.

Does fitting require drilling the chassis?

Not necessarily. There are two options: M14 bolts, which means enlarging the chassis mounting holes, or reusing the original 12 mm bolts with the reducing sleeves supplied in the kit.

Can the joint be serviced?

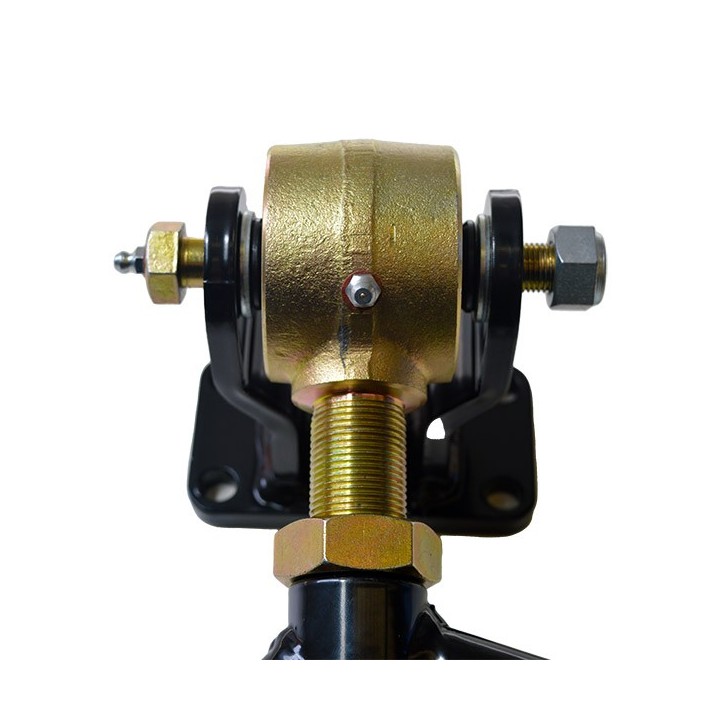

Yes. The 2.5" Raptor Joint on the axle side has a grease nipple and is designed to be rebuilt, so a worn joint does not mean replacing the whole arm.

How many pieces does this listing cover?

One rear triangulated control arm weighing 4.5 kg – the Vitara uses a single central rear arm.

Is anything else needed for a 5–10 cm lift?

For that range the manufacturer offers an additional axle-mounted spacer for this arm (catalogue code 09184), worth including when you build the kit.
