Raptor 4x4
Reference: RAP-11122Y603D
Lift Kits
Raptor 4x4 Complete Suspension Lift Kit +4" (10 cm) for Nissan Patrol Y60 3-Door
This complete Raptor 4x4 suspension kit lifts the 3-door Nissan Patrol Y60 by 10 cm (+4") and includes everything needed for the job: 4 springs, 4 HD shocks, front and rear adjustable control arms with Raptor bushings, plus adjustable front and rear panhard rods. Instead of sourcing springs, shocks and arms separately, you get one matched kit.
Raptor 4x4 Complete Suspension Lift Kit +4" (10 cm) for Nissan Patrol Y60 3-Door
Lifting a suspension isn't just about springs and shocks - for the truck to handle properly afterwards, axle geometry needs correcting with control arms and a panhard rod matched to the new ride height. Raptor 4x4 sells this as one boxed kit, dedicated to the 3-door Nissan Patrol Y60.
The kit delivers a 10 cm (+4") lift and covers both the spring components and front/rear geometry correction - no need to separately match control arms or a panhard rod to a specific lift height.
Lift height +10 cm (+4") | Springs / shocks 4x + 4x Raptor 4x4 HD | Vehicle version Nissan Patrol Y60, 3-door |
Key benefits
- One kit instead of separately sourcing springs, shocks, control arms and a panhard rod matched to the same lift height.
- Adjustable front and rear control arms and panhard rod - let you correct axle geometry after the lift.
- Can be ordered with monotube shocks featuring an external reservoir (RAP-11157/RAP-11158) for demanding off-road use.

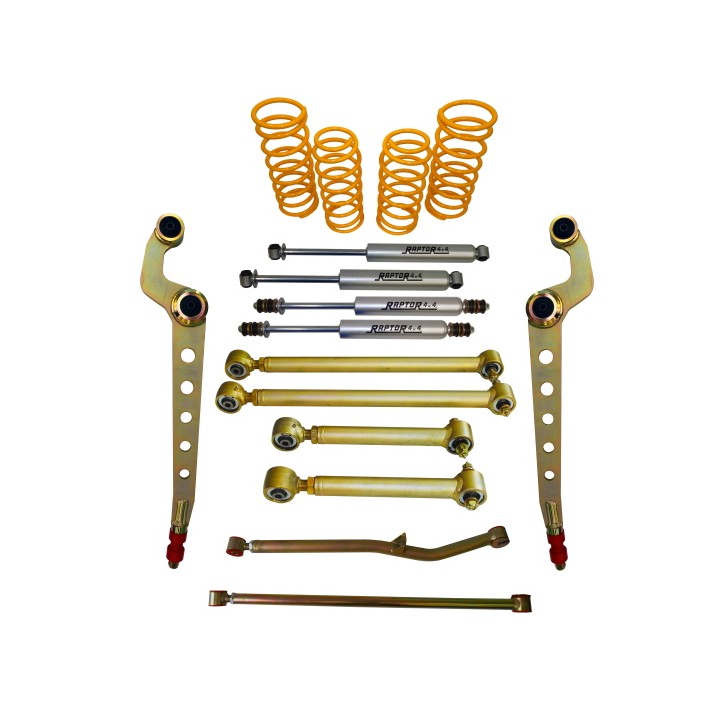

What's in the box
- 4x Raptor 4x4 springs
- 4x Raptor 4x4 HD shock absorbers
- Front and rear, upper and lower adjustable HD control arms with Raptor bushings
- Front and rear adjustable Raptor 4x4 panhard rod
Technical data
- Brand: Raptor 4x4
- Lift: +10 cm (+4")
- Fitment: Nissan Patrol Y60, 3-door (short wheelbase)
- Option: monotube shocks with external reservoir (RAP-11157 front / RAP-11158 rear) can be ordered instead of the standard shocks
Who it's for
This suits short-wheelbase Y60 Patrol owners who want to fit noticeably larger tyres and gain off-road clearance, while making sure axle geometry is properly corrected after the lift rather than just raised on taller springs.
Installation notes
Fitting involves replacing the springs, shocks, control arms and panhard rod - a suspension geometry check and adjustment is required once the kit is installed.
Why it's worth it
- A matched set of components for the same lift height - less risk of mismatched springs and control arms.
- Can be upgraded with monotube shocks for better heat resistance in tough terrain.
Not sure if +4" is the right height for your planned tyre size? Get in touch with Szekla4x4.pl and we'll help you match the kit to your setup.
Frequently Asked Questions
Does the kit include control arms and a panhard rod?
Yes, it includes front and rear adjustable control arms with Raptor bushings, plus a front and rear adjustable panhard rod.
Can I order the kit with different shocks?
Yes, you can order it with Raptor 4x4 monotube shocks featuring an external reservoir (RAP-11157 front, RAP-11158 rear) instead of the standard HD shocks.
Does this kit fit the 5-door Y60 Patrol?
No, this kit (RAP-11122Y603D) is dedicated to the 3-door version only. The 5-door version uses the separate RAP-11122Y605D kit.
Do I need a wheel alignment after fitting it?
Yes, a suspension geometry check and adjustment is required once the springs, shocks, control arms and panhard rod are installed.
