Raptor 4x4
Reference: RAP-11122Y613D
Lift Kits
Raptor 4x4 Complete Suspension Lift Kit +4" (10 cm) for Nissan Patrol Y61 3-Door
The newer, 3-door Y61 generation gains a 10 cm (+4") lift with full geometry correction thanks to this Raptor 4x4 kit. Inside the box: 4 springs, 4 HD shocks, adjustable front/rear control arms with Raptor bushings, and adjustable panhard rods - one matched kit instead of sourcing parts separately.
Raptor 4x4 Complete Suspension Lift Kit +4" (10 cm) for Nissan Patrol Y61 3-Door
The Y61's suspension geometry differs from the older Y60, so lift components aren't interchangeable between the two generations. Raptor 4x4 sells this kit dedicated exclusively to the 3-door Y61, covering springs and shocks as well as the control arms and panhard rod needed to correct geometry.
The kit lifts the truck by 10 cm (+4") and is complete - no need to separately source parts to correct toe or axle angle after the lift.
Lift height +10 cm (+4") | Springs / shocks 4x + 4x Raptor 4x4 HD | Vehicle version Nissan Patrol Y61, 3-door |
Key benefits
- A kit dedicated to Y61 geometry - no need to mix parts from kits built for the older Y60.
- Adjustable front and rear control arms and panhard rod let you correct axle geometry after the lift.
- Can be ordered with monotube shocks featuring an external reservoir (RAP-11157/RAP-11158) for harder terrain.

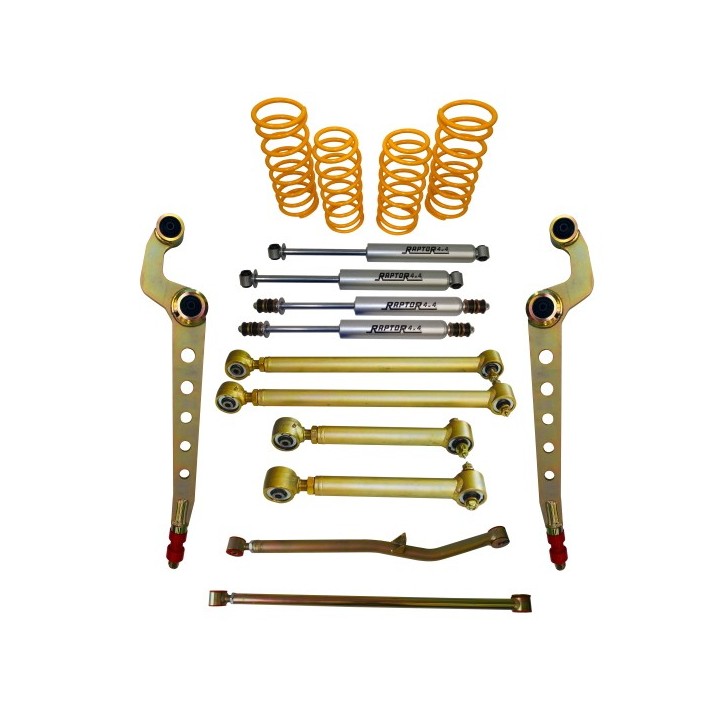

What's in the box
- 4x Raptor 4x4 springs
- 4x Raptor 4x4 HD shock absorbers
- Front and rear, upper and lower adjustable HD control arms with Raptor bushings
- Front and rear adjustable Raptor 4x4 panhard rod
Technical data
- Brand: Raptor 4x4
- Lift: +10 cm (+4")
- Fitment: Nissan Patrol Y61, 3-door
- Option: monotube shocks with external reservoir (RAP-11157 front / RAP-11158 rear) can be ordered instead of the standard shocks
Who it's for
This suits short-wheelbase Y61 Patrol owners who want to fit noticeably larger tyres and gain real off-road clearance, without leaving suspension geometry uncorrected after simply raising the ride height on taller springs.
Installation notes
Fitting involves replacing the springs, shocks, control arms and panhard rod - a suspension geometry check and adjustment is required once the kit is installed.
Why it's worth it
- A matched set of components for this lift height and for Y61 geometry specifically.
- Monotube shock option available for better heat resistance in tough terrain.
Already picked your tyres for the new Y61 Patrol and wondering if +4" is enough? Get in touch with Szekla4x4.pl and we'll help you choose the right kit.
Frequently Asked Questions
Does this kit fit the Y60 Patrol?
No, this kit is dedicated exclusively to the Nissan Patrol Y61 (3-door). Separate kits exist for the Y60 (e.g. RAP-11122Y603D).
Does the kit include control arms and a panhard rod?
Yes, it includes front and rear adjustable control arms with Raptor bushings, plus a front and rear adjustable panhard rod.
Can I order different shocks than the standard ones?
Yes, you can order it with Raptor 4x4 monotube shocks featuring an external reservoir (RAP-11157 front, RAP-11158 rear).
Do I need a wheel alignment after fitting it?
Yes, a suspension geometry check and adjustment is required once the kit is installed.
