Raptor 4x4
Reference: RAP-11131
Control Arms
Raptor 4x4 Rear Adjustable HD Trailing Arms Nissan Patrol Y60/Y61
Raptor 4x4 rear adjustable trailing arms let you dial in correct rear axle geometry on the Nissan Patrol Y60 or Y61, especially after fitting a taller lift. A reinforced 42mm tube and Johnny Joint bearings with needle rollers replace the fixed-length factory arms with a fully adjustable pair.
Raptor 4x4 Rear Adjustable HD Trailing Arms Nissan Patrol Y60/Y61
Lifting the suspension changes the working angles at the rear axle - fixed-length factory arms can't keep up with the new geometry, which shows up as worse handling and faster bushing wear. Raptor 4x4 rear adjustable trailing arms fix that directly, giving you a way to dial in correct axle alignment.
The reinforced 42mm tube with a 5mm wall and Johnny Joint bearings with needle rollers are built for real off-road use, not just looks underneath the truck.
Type Rear trailing arms, pair | Construction Ø42mm tube, 5mm wall | Joints Johnny Joint (uniball) with needle rollers |
Key benefits
- Full length adjustment - correct rear axle geometry after lifting the suspension.
- Reinforced 42mm tube with a 5mm wall - stands up to impacts and twisting off-road.
- Johnny Joint bearings with needle rollers instead of factory rubber bushings - more suspension travel without binding.
What's in the box

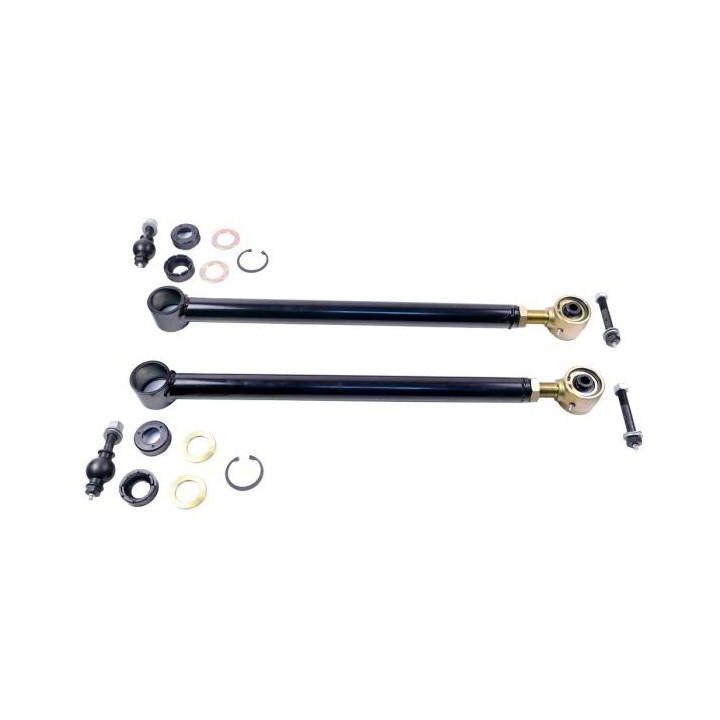

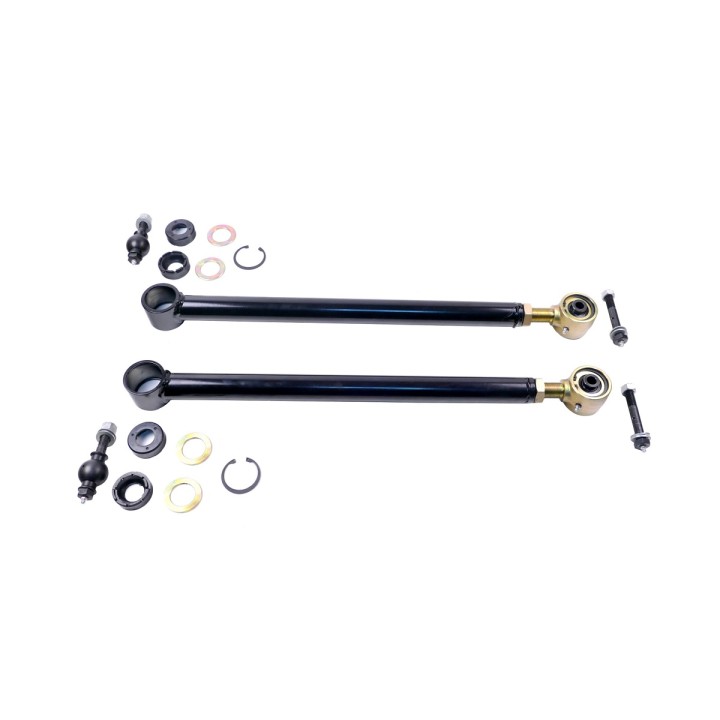

- Rear adjustable trailing arm pair from Raptor 4x4 (2 units).
Technical data
- Type: rear trailing (lower) arms, adjustable.
- Construction: 42mm tube, 5mm wall thickness.
- Joints: Johnny Joint (uniball) type, with needle roller bearings.
- Compatibility: Nissan Patrol Y60 (1987-1996) and Y61 (1997-2006).
Essential on bigger suspension lifts, where fixed-length factory arms can't correctly set rear axle geometry. Also a good call for trucks that see serious off-road use, where Johnny Joints handle large suspension angles far better than factory rubber bushings.
Why it's worth it
- Real geometry correction, not a cosmetic swap.
- Reinforced tubular construction versus the thinner factory profile.
- Johnny Joints instead of rubber bushings - more durable at large working angles.
If your Y60 or Y61 handles worse or chews through bushings faster after a lift, these adjustable arms give you the tool to set the rear axle geometry right.
Frequently Asked Questions
Why adjustable arms instead of factory ones?
Factory arms are a fixed length - once you lift the suspension, axle geometry changes. Raptor 4x4 adjustable arms let you correct for that.
How many arms come in the set?
A pair - 2 rear trailing arms.
What joint type is used?
Johnny Joint (uniball) bearings with needle rollers, in a 42mm tube with a 5mm wall thickness.
Do these fit both Y60 and Y61?
Yes, the manufacturer confirms compatibility with both generations.
