Raptor 4x4
Reference: RAP-11133
Control Arms

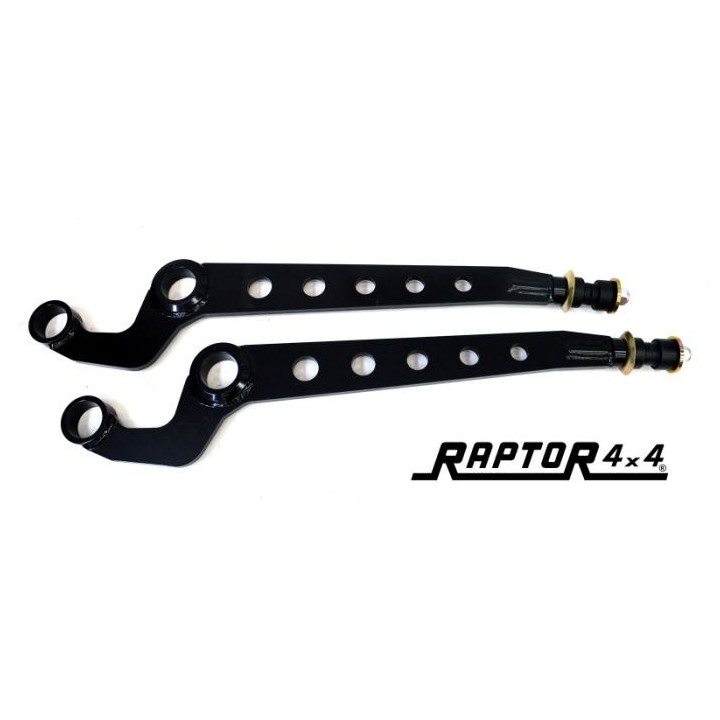

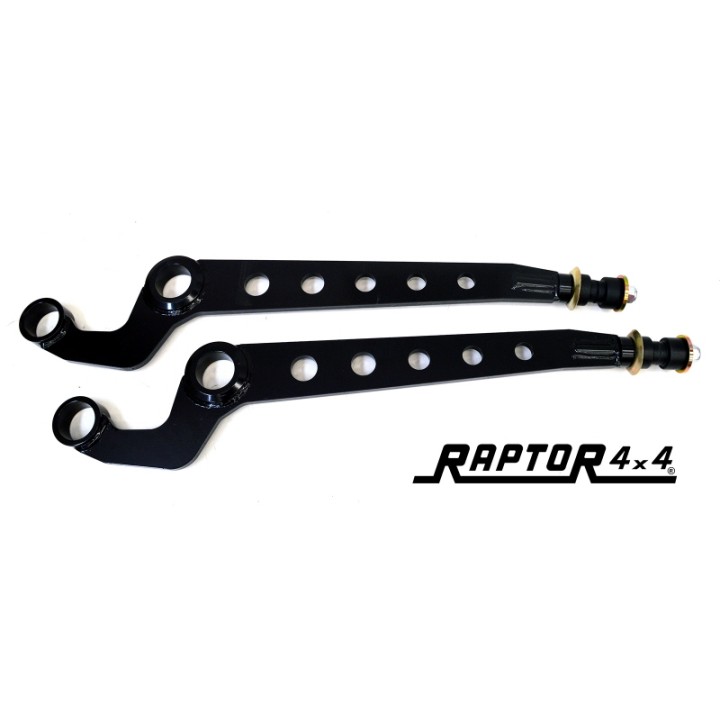

Raptor 4x4 Front Reinforced HD Radius Arms Nissan Patrol Y60/Y61
Raptor 4x4 front radius arms are a reinforced, powder-coated pair built for the Nissan Patrol Y60 and Y61 under a +2'' to +4'' lift - no eccentric bushings or angle correctors needed. The set includes a complete bushing kit, ready to install.
Raptor 4x4 Front Reinforced HD Radius Arms Nissan Patrol Y60/Y61
Lifting the front of a Patrol by more than 2 inches usually calls for correcting the radius arm working angle - otherwise suspension geometry suffers and joints wear out faster. Raptor 4x4 reinforced radius arms are designed for lifts from +2'' to +4'' without needing extra eccentric bushings or angle correctors.
The powder-coated pair comes complete with bushings, ready to install without hunting for extra parts.
Type Front radius arms, pair | Lift range +2'' to +4'' without correctors | Finish Powder-coated |
Key benefits
- Designed for a wide lift range (+2 to +4'') without additional angle correctors.
- Complete bushing kit included - fewer parts to source before installation.
- Reinforced build and powder coating for longer service life.
What's in the box
- Front radius arm pair from Raptor 4x4.
- Complete mounting bushing kit.
Technical data
- Type: front radius (trailing) arms, reinforced.
- Finish: powder-coated.
- Lift compatibility: +2'' to +4'' without eccentric bushings/angle correctors.
- Limitation: does not support sway bar (stabilizer) mounting.
- Compatibility: Nissan Patrol Y60 (1987-1996) and Y61.
A solid choice for Y60/Y61 owners planning a 2-4 inch front lift without complicating the build with extra angle correctors. Keep in mind these don't support a sway bar mount - if that matters to you, this variant won't provide it.
Why it's worth it
- One part covers a wide lift range (+2 to +4 inches).
- Bushing kit included - fewer follow-up purchases.
- The sway-bar limitation is stated clearly, so you know where you stand before buying.
If you're building a +2 to +4 inch front lift on your Y60 or Y61 and want arms that skip the angle correctors, this set fits that need directly.
Frequently Asked Questions
What lift range do these arms suit?
The manufacturer states a +2'' to +4'' range without needing extra eccentric bushings or angle correctors.
Are bushings included?
Yes, the set includes the complete bushing kit needed for installation.
Can I mount a sway bar to these?
No - the manufacturer explicitly states these arms do not support sway bar (stabilizer) mounting.
Do these fit both Y60 and Y61?
Yes, the source confirms compatibility with both generations.
