Raptor 4x4
Reference: RAP-111410
Coil springs

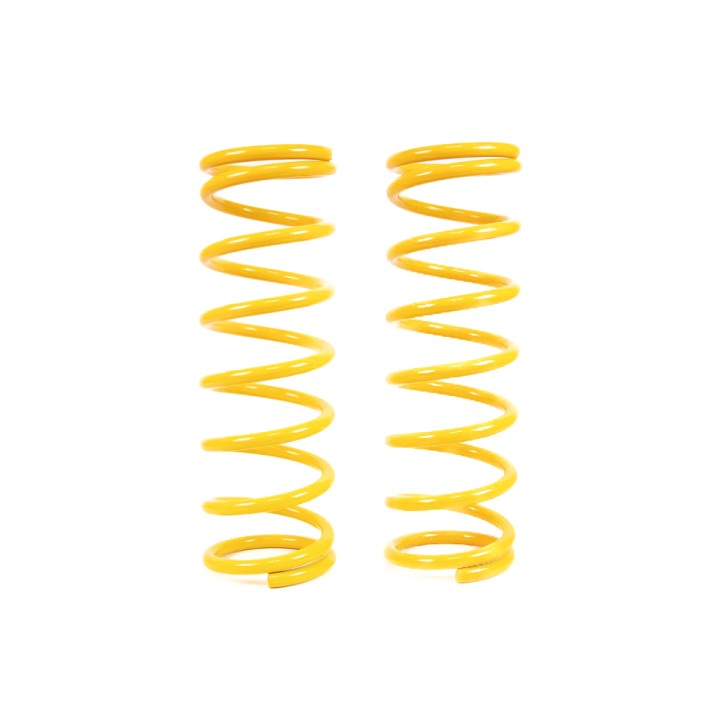

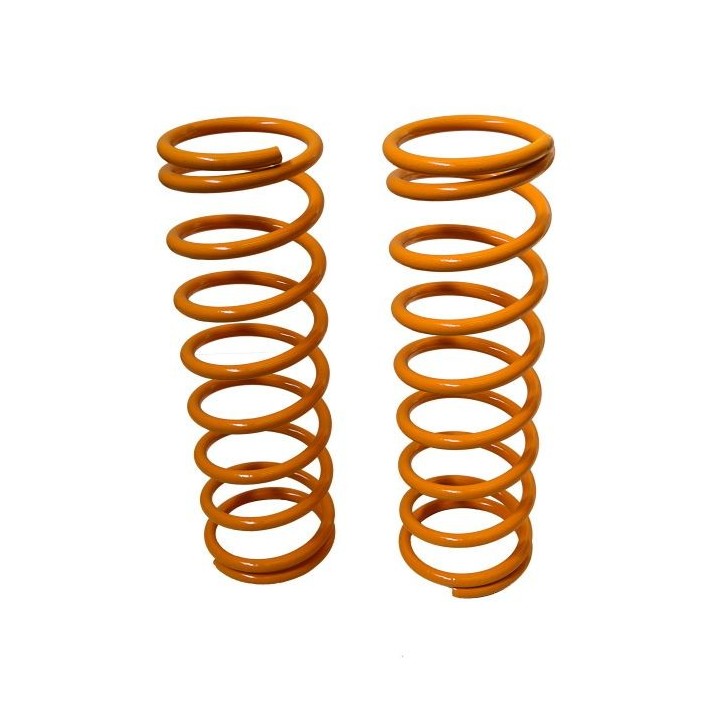

Raptor 4x4 Rear Lift Springs +4'' Nissan Patrol Y61 Long
Raptor 4x4 rear springs lift the back of the long-wheelbase Nissan Patrol Y61 by a full 4 inches - a serious step up from the more common +2'' lift. A 19mm wire diameter and 550mm free length are concrete, heavy-duty numbers, and the manufacturer backs the springs with a lifetime dimension warranty.
Raptor 4x4 Rear Lift Springs +4'' Nissan Patrol Y61 Long
When a standard +2'' lift isn't enough, Raptor 4x4's +4'' rear springs give the long-wheelbase Y61 a serious jump in rear clearance - suited to bigger tires and more serious off-road use. This isn't a scaled-up version of the milder spring, it's a separate design with a 19mm wire diameter.
A stated free length of 550mm is a concrete, measurable spec - you know exactly what spring you're installing instead of relying on a vague 'heavy-duty' label.
Position Rear | Lift +4'' | Wire diameter 19 mm | Free length 550 mm |
Key benefits
- A serious 4-inch rear lift - a real geometry change for bigger tires.
- Thicker wire (19mm) than the +2'' variants - a sturdier build for heavier off-road loads.
- A stated free length (550mm) - a concrete spec to compare against other offers.
- Lifetime manufacturer warranty on dimension retention.
What's in the box
- Rear spring set from Raptor 4x4 (+4'').
Technical data
- Lift: +4'', rear axle.
- Spring free length: 550 mm.
- Wire diameter: 19 mm.
- Color: yellow.
- Compatibility: Nissan Patrol Y61 long (LWB), recommended 5-door version, 1997-2006.
- Warranty: lifetime, on dimension retention.
For long-Y61 owners planning a more serious suspension build than the standard +2'' - aimed at much bigger tires or heavier rear expedition loads. At this lift height it's worth planning shock selection with matching travel from the start.
Why it's worth it
- Concrete spring specs (19mm wire, 550mm length) instead of vague claims.
- A real, substantial +4'' lift rather than the typical +2''.
- Lifetime warranty on dimension retention.
If the standard +2'' lift isn't enough for your long-wheelbase Y61, these +4'' rear springs give you a solid foundation for a more serious build.
Frequently Asked Questions
How is this different from the +2'' springs (e.g. RAP-11146)?
This is a much taller lift - +4'' instead of +2'' - achieved with a different, thicker spring (19mm wire).
Which Y61 version does this fit?
The long-wheelbase (LWB) version, recommended as the 5-door, 1997-2006.
What warranty applies?
The manufacturer provides a lifetime warranty on spring dimension retention.
Do I need to change anything else at this lift height?
The source doesn't specify additional required parts - but at +4'' it's worth reviewing shock selection and possibly geometry-correcting arms sized to the new ride height.
