Raptor 4x4
Reference: RAP-15141
Coil springs

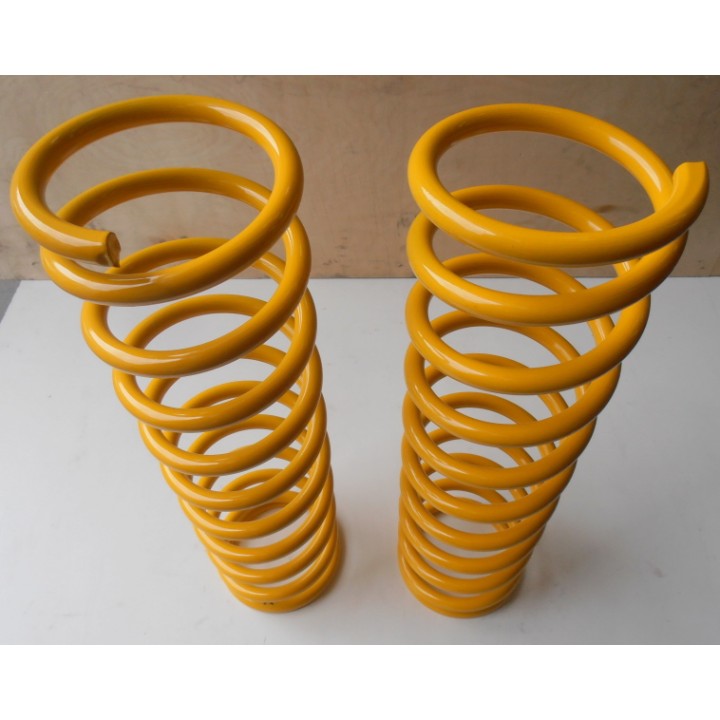

Raptor 4x4 +2" Front Springs Toyota LC 70 KZJ/LJ 3.0 2.4 Square Lamp
A set of two Raptor 4x4 front springs raising the front of a square-lamp Toyota Land Cruiser KZJ/LJ 70 in 3.0 and 2.4 versions by 2 inches (6 cm). Supplied as a full-axle pair in your choice of yellow or black. A neat fix when the nose has sagged but the rear still sits right.
Raptor 4x4 +2" Front Springs – Toyota Land Cruiser 70 KZJ/LJ 3.0 / 2.4, Square Lamp
The front of a Land Cruiser sags first. The engine, the bumper, a winch and years of service take the height out of the factory front springs long before the rears give up – the truck sits nose down and the reserve of upward travel is effectively gone.
This pair of springs raises the front axle by two inches and gives it a sensible working height again. Sold separately, so you can deal with the front alone, top up a set you already own, or build your own configuration and pick dampers independently.
Lift +2" (+6 cm) | Contents set of 2 springs for the front axle | Colour yellow or black – your choice |
Fits Land Cruiser KZJ/LJ 70 3.0 and 2.4, square lamp | Weight per pair 9 kg | Made by Raptor 4x4 (Saglietti S.r.l., Italy) |
Key benefits
- 6 cm of front lift – clearance recovered under the front axle and room for larger tyres.
- Supplied as a full-axle set, so both sides run identical new components with no left-to-right height difference.
- A sensible service item: if the rear still holds its height and only the front has sagged, you replace what has actually worn out.
- Colour choice – yellow or black, depending on whether you want the suspension to show.
- A catalogue part from a manufacturer specialising in the 70 series, assigned to a specific engine and body version.
What is in the box
- 2 x front spring +2" (a set for the front axle)
Technical data
- Lift height: +2" (+6 cm)
- Quantity: set of 2 for the front axle
- Colour: yellow or black, selected at order
- Weight per pair: 9 kg
- Application: Toyota Land Cruiser KZJ 70 / LJ 70 3.0 and 2.4 with square headlights
- Manufacturer catalogue code: 15141
- Manufacturer: Raptor 4x4 – Saglietti S.r.l., Italy
Who it is for. Square-lamp KZJ/LJ 70 owners who want to lift the front alone, or to swap tired front springs for new ones with lift built in. They also work well as part of a staged build – springs first, dampers chosen later to suit the final ride height.
Fitting notes
Remember this is a pair of springs only – no shock absorbers are included. With 6 cm of lift the factory front dampers will run closer to the end of their stroke, so plan on replacing them with lift-rated units eventually. The set is assigned to the square-lamp body in 3.0 and 2.4 versions – confirm your vehicle matches before ordering. Align the front axle once the front has been raised.
Why buy these springs
- An affordable way to recover front clearance without paying for a complete suspension kit.
- An axle set rather than a single spring – symmetrical ride height from day one.
- Colour choice if you care about a consistent look under the truck.
Unsure whether springs alone are enough at this lift height or whether you also need new dampers? Get in touch and we will work through it with you.
Frequently Asked Questions
How many springs do I get for this price?
Two – a set for the front axle. The manufacturer sells code 15141 as a pair of front springs.
How much do they raise the front?
By 6 cm, i.e. +2" – per the manufacturer catalogue for code 15141.
Are shock absorbers included?
No. This is a pair of front springs only. Dampers are selected separately.
Which versions do they fit?
Land Cruiser KZJ/LJ 70 in 3.0 and 2.4 versions with square headlights – as stated by both the distributor and the manufacturer.
What colours are available?
The springs are available in yellow or black.
