Raptor 4x4
Reference: RAP-15142
Coil springs
Rear Lift Springs +2" Toyota Land Cruiser KZJ/LJ 70 Square Lamp

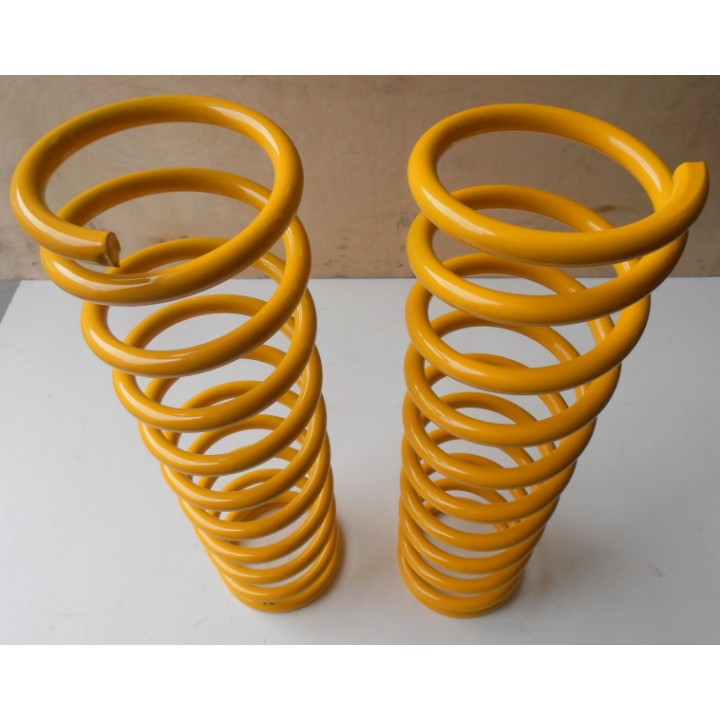

A pair of Raptor 4x4 rear coil springs that lift a square lamp Toyota Land Cruiser KZJ/LJ 70 by roughly 6 cm. Yellow finish and a lifetime warranty against sagging, so the height stays where you set it even after a season of loaded driving. Square lamp body only.
Rear Lift Springs +2" Toyota Land Cruiser KZJ/LJ 70 3.0 / 2.4 — Square Lamp (Raptor 4x4, code 15142)
A loaded 70-series settles at the rear faster than most owners expect, and once the original springs give up you lose both ground clearance and usable suspension travel. This pair of Raptor 4x4 rear springs brings the back end back up and adds roughly 6 cm of ride height on top of stock.
It is the square lamp version of the KZJ 70 / LJ 70 body — an important distinction, because the round lamp cars take a different spring and the two are not interchangeable.
Fitment Land Cruiser KZJ 70 / LJ 70, square lamp | Lift +6 cm (approx. +2") | Supplied as Pair of rear springs |
Key benefits
- +6 cm at the rear — room for a taller tyre and a higher breakover point before the rear hangs up on a ledge.
- Sold as a pair — both sides of the axle are replaced together, so the car stays level.
- Lifetime warranty against sagging — the manufacturer guarantees the springs hold their free length, which is exactly where budget replacements fail after a season.
- Yellow powder finish — easy to identify under the car during a suspension check.
What you get
- 2 x Raptor 4x4 rear coil spring (one full axle set)
Technical data
- Manufacturer part number: 15142
- Manufacturer: Raptor 4x4 (Saglietti S.r.l., Italy)
- Axle: rear
- Lift height: +6 cm
- Colour: yellow
- Body version: square lamp (faro quadro)
- Weight of the pair: 12 kg
Who it is for. Owners who actually use a 70-series off road, or travel with it fully loaded — luggage, spare fuel, water, camping gear. A lifted rear also helps if you tow and the back of the car used to squat noticeably under the drawbar load.
Fitting notes
The springs are designed around a 6 cm lift, so plan for longer shock absorbers and check that brake lines and linkages still have enough slack at full droop. Szekla4x4 runs an off-road and overlanding workshop, so we can match the rest of the suspension to this lift and fit the set for you.
Why buy this set
- A measurable result: +6 cm at the rear, no spacers or improvisation.
- Manufacturer warranty against loss of height — you buy once.
- Explicitly listed for the square lamp body, so fitment is not guesswork.
Building a 70-series lift from scratch? Get in touch and we will pair these springs with shocks of the right stroke.
Frequently Asked Questions
How many springs are in the set?
Two — a complete rear axle set. The manufacturer lists this part number as a pair.
Will they fit a round lamp Land Cruiser 70?
No. This part number is listed for the square lamp (faro quadro) body. Raptor 4x4 offers a separate rear spring for the round lamp cars.
How much lift do they give?
Around 6 cm, which is roughly 2 inches over standard ride height.
What does the warranty cover?
The manufacturer gives a lifetime warranty against sagging — the spring is guaranteed to keep its height.
Do I need new shock absorbers as well?
With a 6 cm lift the original shocks run out of travel, so longer shocks are normally fitted with springs like these. We can help you match a set.
