Raptor 4x4
Reference: RAP-15144
Coil springs
Rear Lift Springs +2" Toyota Land Cruiser LJ70 Round Lamp

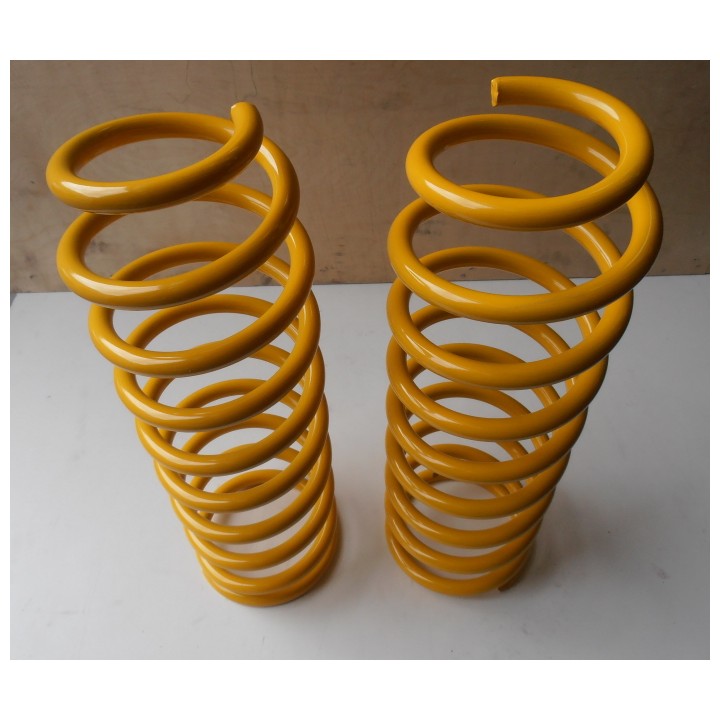

A pair of Raptor 4x4 rear coil springs lifting a round lamp Toyota Land Cruiser KZJ/LJ 70 by around 6 cm. Yellow, 11 kg per pair, covered by a lifetime warranty against sagging so they hold height under permanent load. Round lamp body only.
Rear Lift Springs +2" Toyota Land Cruiser LJ70 Round Lamp (Raptor 4x4, part 15144)
The rear axle of a 70-series carries everything: luggage, an auxiliary tank, a towbar, sometimes a trailer. The result is always the same — a car that sits nose-up and bottoms out on the rear bump stops over anything serious. This pair of Raptor 4x4 rear springs fixes that and lifts the back end by around 6 cm.
It is the round lamp (faro tondo) version for KZJ 70 and LJ 70 bodies. The manufacturer runs separate part numbers for square lamp cars, so the distinction matters in practice.
Fitment Land Cruiser KZJ 70 / LJ 70, round lamp | Lift +6 cm (approx. +2") | Supplied as Pair of rear springs |
Key benefits
- +6 cm at the rear — a recovered departure angle and far less chance of dragging the back end down a step.
- Lifetime warranty against sagging — the spring is guaranteed to hold its height, so the ride height you set stays there even after a hard loaded season.
- A full axle set — both sides are replaced at once, with no risk of the body sitting lopsided.
- Yellow finish — easy to identify under the car during a suspension check.
What you get
- 2 x Raptor 4x4 rear coil spring (one full axle set)
Technical data
- Manufacturer part number: 15144
- Manufacturer: Raptor 4x4 (Saglietti S.r.l., Italy)
- Axle: rear
- Lift height: +6 cm
- Colour: yellow
- Body version: round lamp (faro tondo), KZJ 70 / LJ 70
- Weight of the pair: 11 kg
Who it is for. A 70-series that genuinely carries weight — an expedition build, a working truck, or one that tows regularly. Lifting the rear also evens out the stance once the front has been raised, and buys clearance for a taller tyre at full compression.
Fitting notes
At 6 cm of lift the original rear dampers run out of stroke, so longer shocks are fitted with the springs. Check brake line slack and Panhard rod travel at full droop as well. Our workshop specialises in off-road and overlanding builds and can supply and fit the complete package.
Why buy this set
- A manufacturer warranty against loss of height — buy once, forget about it.
- A catalogued +6 cm rather than improvising with spring spacers.
- Listed specifically for the round lamp body, so fitment is not a matter of faith.
Lifting the whole truck evenly? Get in touch and we will match front, rear and dampers into one coherent setup.
Frequently Asked Questions
How many springs do I get?
Two — a full rear axle set. The manufacturer lists this part number as a pair.
Do they fit a square lamp 70-series?
No. This part number is listed for the round lamp (faro tondo) body; square lamp cars take a different rear spring.
How much lift do they give?
Around 6 cm, roughly 2 inches over standard ride height.
What does the warranty cover?
A lifetime warranty against sagging — the manufacturer guarantees the spring will not lose its height.
How much does the pair weigh?
11 kg, as stated by the manufacturer.
