Raptor 4x4
Reference: RAP-15151
Shocks

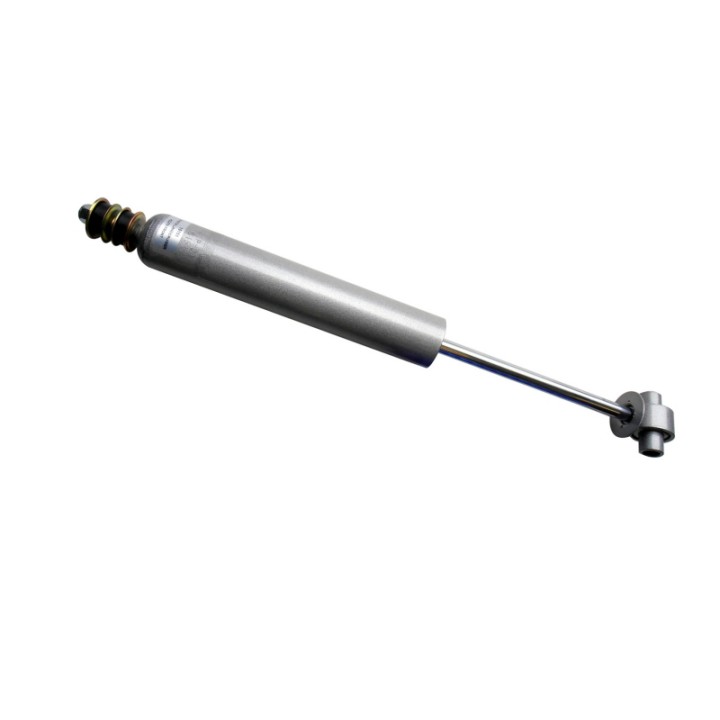

Front Shock Absorber Lift +2" Toyota Land Cruiser 70 KZJ/LJ Square Lamp
A Raptor 4x4 front shock absorber dimensioned for a +6 cm lift on a square lamp Toyota Land Cruiser KZJ/LJ 70. After a lift the original damper limits wheel travel — this one gives it back. Weighs 3 kg; square lamp body only.
Front Shock Absorber, +2" Lift, Toyota Land Cruiser 70 KZJ/LJ — Square Lamp (Raptor 4x4, part 15151)
Once lift springs go in, the original damper stops damping and starts limiting: it runs out of extension before the wheel has finished dropping. This Raptor 4x4 front shock is dimensioned around a 6 cm lift, so it gives the suspension back the travel the lift just created.
It covers the front axle of a KZJ 70 / LJ 70 in square lamp form — the round lamp body has its own part numbers in the manufacturer catalogue.
Fitment Land Cruiser KZJ 70 / LJ 70, square lamp | Designed for +6 cm lift (approx. +2") | Axle Front |
Key benefits
- Stroke matched to a +6 cm lift — the wheel works through its full range instead of hanging on a fully extended damper.
- Built for off-road duty — the manufacturer positions this damper as an all-round unit, not a road-biased replacement.
- Light at 3 kg — no unnecessary unsprung mass on the front axle.
- Catalogued for the square lamp body — the single most common source of ordering mistakes on a 70-series is settled here.
Technical data
- Manufacturer part number: 15151
- Manufacturer: Raptor 4x4 (Saglietti S.r.l., Italy)
- Axle: front
- Intended lift: +6 cm
- Body version: square lamp (faro quadro), KZJ 70 / LJ 70
- Weight: 3 kg
Who it is for. Owners of a lifted square lamp 70-series who noticed the truck became jumpy over corrugations after the lift, or that the front end crashes through potholes. It is also the natural partner to the Raptor 4x4 lift springs for the same axle.
Fitting notes
Shocks are replaced in pairs — one new and one tired unit on the same axle gives uneven damping and pulls the car under braking on broken surfaces. Check bushes and mounts while you are there. If you want the lift to work as one system, our off-road and overlanding workshop can specify and fit the complete set.
Why buy this shock
- Designed around a specific lift height, not a generic "longer" damper.
- Same manufacturer as the 70-series lift springs — one coherent suspension catalogue.
- Unambiguous fitment to the square lamp body.
Need a full set for both axles? Message us and we will put front and rear together for one lift height.
Frequently Asked Questions
Is the price for a single unit?
Yes, the manufacturer lists this part number as one shock absorber. Two are needed per axle.
Does it fit a round lamp 70-series?
No. The manufacturer assigns this part number to the square lamp (faro quadro) body; round lamp cars have separate dampers.
What lift height is it for?
A lift of around 6 cm, roughly 2 inches.
How much does it weigh?
3 kg, as stated by the manufacturer.
