Rear HD Shock Absorber +6 cm Toyota Land Cruiser KZJ70/LJ70 Square Lamp (Raptor 4x4, 15154)

The rear of a 70-series takes the most abuse: that is where the gear, jerry cans, fridge and tow hitch end up. Once a worn damper stops controlling the leaf spring, the truck wallows over every bump and braking with a load stops being pleasant.

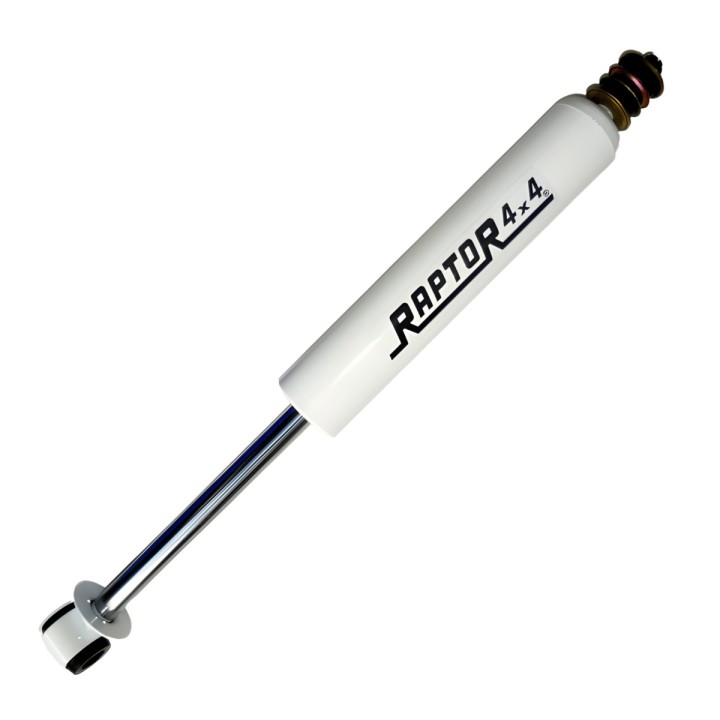

Item 15154 in the Raptor 4x4 catalogue is a rear HD damper for the square-lamp Land Cruiser KZJ70/LJ70, matched to suspension raised by 6 cm.

Key benefits

• HD valving described by the manufacturer as suitable for all uses, including load and towing — exactly what the rear of a working 4x4 normally does.
• Length matched to a +6 cm lift, so after raising the truck the damper does not run out of extension or limit rear-axle articulation.
• Assigned to the square-lamp version, which gives you a clear reference point when ordering 70-series parts.
• Weight of 3 kg — a build in proportion to the load-carrying job.

Technical data

• Manufacturer code: 15154 (Raptor 4x4, Saglietti S.r.l., Italy)
• Mounting position: rear
• Valving: HD / High Load
• Application: Toyota Land Cruiser KZJ70 / LJ70, square-lamp body
• Lift height: +6 cm
• Weight: 3 kg

Who it is for

Pick this version if the rear axle of your Land Cruiser is rarely empty: fully kitted trips, work with a trailer, hauling equipment. The manufacturer does not limit it to one scenario but explicitly names load and towing as where HD earns its place.

It pairs naturally with the front counterpart, code 15153, if you want the whole truck on one damping character.

Fitment and notes

Confirm the body version first: code 15154 covers the square-lamp KZJ70/LJ70. Round-lamp trucks have separate, side-specific numbers in the Raptor 4x4 catalogue (15158A and 15158B).

This is a single unit — you need two for the rear axle. Always change dampers in pairs on one axle.

Why it is worth it

• One of the few items in this group that the manufacturer explicitly describes as suited to load and towing.
• Matched to a specific lift height, so there is no improvising with extensions or shortened travel.
• You are buying from a shop that builds and services off-road suspension itself, so you can ask about matching the whole set.

Need a full set for both axles? Get in touch and we will match front and rear to the same ride height.

Frequently Asked Questions

Is this one damper or a pair?

The distributor listing and the manufacturer catalogue both describe it in the singular — it is one damper, so you need two for the rear axle.

Does the square-lamp KZJ70/LJ70 need different left and right rear dampers?

The Raptor 4x4 catalogue lists a single rear number (15154) for the square-lamp version, with no left/right split. The side-specific split in this catalogue applies to round-lamp trucks.

What lift is it designed for?

Both the manufacturer and the distributor state +6 cm.

What is the matching front damper?

In the Raptor 4x4 catalogue it is item 15153 — the front HD +6 cm damper for the same body version.
