Raptor 4x4
Reference: RAP-15157
Shocks

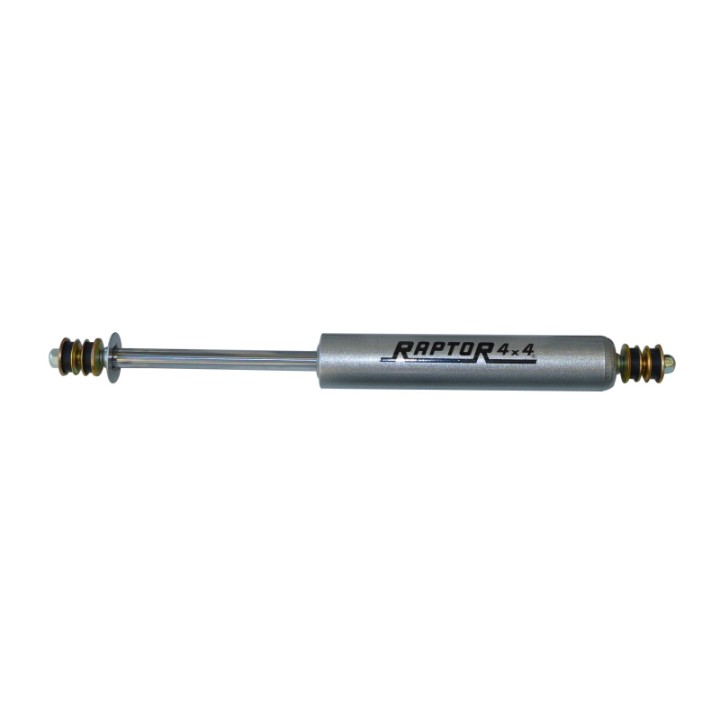

Front HD Shock Absorber +6 cm Toyota Land Cruiser KZJ70/LJ70 Round Lamp Raptor 4x4
Raptor 4x4 front damper in HD spec for a round-lamp Land Cruiser with a +6 cm lift. The firmer alternative to the Trial line when the front end regularly carries extra mass — a steel bumper, a winch or a rack. Manufacturer code 15157, weight 3 kg.
Front HD Shock Absorber +6 cm Toyota Land Cruiser LJ70 Round Lamp (Raptor 4x4, 15157)
The front of a round-lamp 70-series rarely stays stock: a steel bumper, a winch, sometimes extra lights. Every one of those adds mass exactly where the damper has to control it.
Code 15157 is the front HD item in the Raptor 4x4 catalogue, matched to the round-lamp version and a +6 cm lift.
Position Front axle, 1 pc | Body version Round lamp | Valving HD | Lift height +6 cm |
Key benefits
- HD valving — firmer than the Trial line in the same family, intended for trucks working harder than average.
- Matched to a +6 cm lift, so you are not eyeballing length after fitting taller springs.
- Clearly assigned to the round-lamp version, which is the primary selection criterion for 70-series suspension parts.
- A 3 kg weight points to a more substantial build than the Trial variant (2.5 kg).
Technical data
- Manufacturer code: 15157 (Raptor 4x4, Saglietti S.r.l., Italy)
- Mounting position: front
- Valving: HD
- Application: round-lamp Toyota Land Cruiser (Raptor 4x4 states LJ70; nt4x4.pl states KZJ70/LJ70)
- Lift height: +6 cm
- Weight: 3 kg
Who it is for
Choose HD if your front end carries more than the factory bumper, or if the truck runs gravel fast enough that the Trial line stops being enough. The firmer tune holds the front better once the front axle is weighed down.
For the rear axle of the same body version the manufacturer lists separate right (15158A) and left (15158B) numbers.
Fitment and notes
Confirm you have the round-lamp version before ordering. The square-lamp truck has its own front HD number (15153).
The item covers one damper — the front axle needs two, replaced as a pair.
Why it is worth it
- A step up from standard without moving into adjustable or monotube pricing.
- The manufacturer code keeps servicing and buying a second unit straightforward.
- We can help match springs and the remaining parts to the same ride height.
Not sure whether you need HD or Trial is enough? Tell us how you use the truck and we will point you the right way.
Frequently Asked Questions
How does HD differ from the Trial version (15155)?
HD has firmer valving and a heavier build (3 kg against 2.5 kg for Trial). In this catalogue Trial is described as a medium tune for all-round use.
Does it fit a square-lamp truck?
No. The manufacturer assigns 15157 to the round-lamp version; the square-lamp truck uses code 15153.
How many units should I buy?
It is a single damper, so the front axle needs two.
What lift is it matched to?
A +6 cm lift, as stated by both the manufacturer and the distributor.
