Raptor 4x4
Reference: RAP-15158B
Shocks

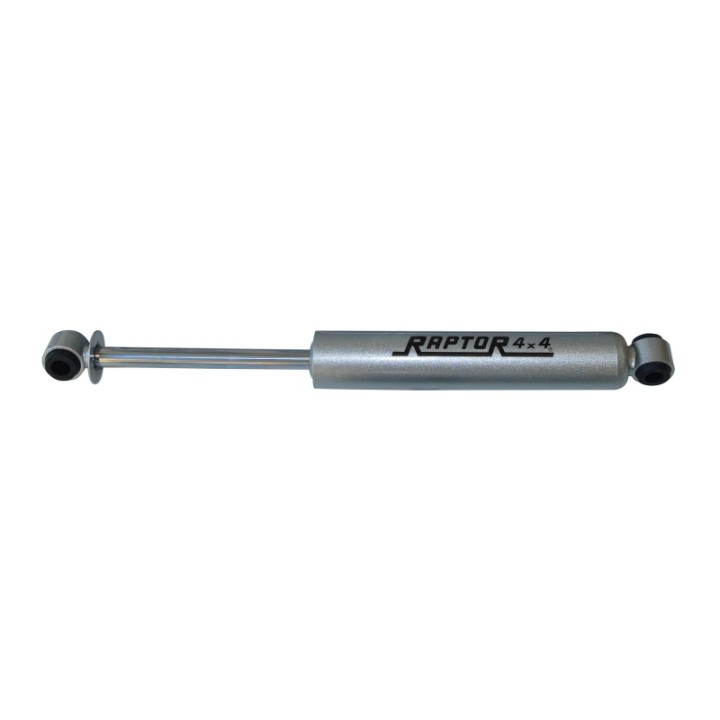

Rear Left HD Shock Absorber +6 cm Toyota Land Cruiser KZJ70/LJ70 Round Lamp Raptor 4x4
Raptor 4x4 rear left HD damper for a round-lamp Land Cruiser, matched to a +6 cm lift. The stronger variant for trucks whose rear axle runs loaded. Manufacturer code 15158B, weight 3 kg.
Rear Left HD Shock Absorber +6 cm Toyota Land Cruiser LJ70 Round Lamp (Raptor 4x4, 15158B)
Replacing one side and leaving the other on a worn damper? The rear axle answers with body twist over bumps. On a round-lamp 70-series the sides carry separate codes, so a matched pair has to be put together deliberately.
15158B is the left-hand unit in HD valving, for suspension raised by 6 cm.
Side Left (SX) | Body version Round lamp | Valving HD | Lift height +6 cm |
Key benefits
- HD valving for a rear axle that is rarely empty — less wallow when fully loaded.
- A code assigned to the left side, following the manufacturer split.
- Length and stroke matched to a +6 cm lift.
- A 3 kg build, heavier than the Trial equivalent.
Technical data
- Manufacturer code: 15158B (Raptor 4x4, Saglietti S.r.l., Italy)
- Mounting position: rear, left side (SX)
- Valving: HD
- Application: round-lamp Toyota Land Cruiser (Raptor 4x4 states LJ70; nt4x4.pl states KZJ70/LJ70)
- Lift height: +6 cm
- Weight: 3 kg
Who it is for
It suits an expedition truck, a working truck, or simply one that hauls a lot of kit. If the back of your Land Cruiser is full more often than empty, the firmer tune gives noticeably better control than the medium variant.
The matching right-hand unit is code 15158A.
Fitment and notes
This code covers the left side only, and the round-lamp version only. For square-lamp trucks the Raptor 4x4 catalogue lists a single rear item with no side split (15154 in HD spec).
Sold as a single unit — the rear axle needs both sides.
Why it is worth it
- A firmer tune without stepping up to adjustable-damper money.
- The manufacturer separates the sides clearly, so you know exactly what you are ordering.
- We can advise whether HD or Trial is the better fit in your case.
Order it together with the right-hand unit (15158A) if you are refreshing the whole rear axle.
Frequently Asked Questions
Will this damper fit the right side?
No. 15158B is catalogued as the left (SX) unit; the right one is 15158A.
Does it fit the square-lamp version?
No. The manufacturer assigns it to round-lamp trucks.
What is the difference from the Trial version?
HD has firmer valving and weighs 3 kg; the Trial unit for the same side weighs 2.5 kg with a medium tune.
What lift is it matched to?
A +6 cm lift, per the manufacturer and distributor data.
