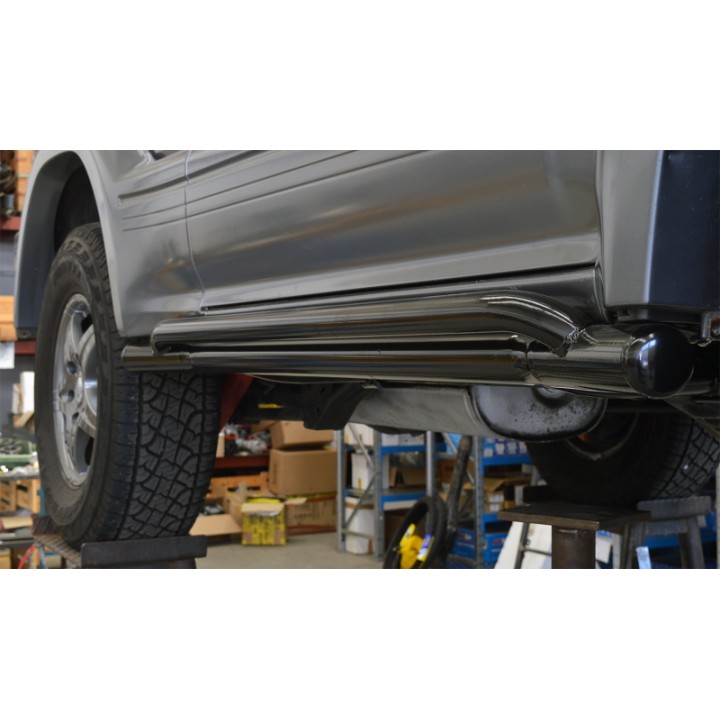

HD Tubular Rock Sliders Toyota Land Cruiser Prado KZJ 90 Raptor 4x4
Heavy duty tubular rock sliders for the Toyota Land Cruiser Prado KZJ 90, built from 60x3 mm tube with an additional outer tree slider bar. Bolted to the chassis at four points and finished in black powder coat. They shield the rocker panels and lower doors, make getting in easier and take a Hi-Lift. 27 kg per set, all mounting hardware included.
HD Tubular Rock Sliders Toyota Land Cruiser Prado KZJ 90 – Raptor 4x4
The Prado 90 leaves its rocker panels completely exposed, sitting low and made of thin steel. One rock on a side slope or one stump climbing out of a rut, and you are booking bodywork. A rock slider takes that hit instead and feeds it into the part of the truck that can actually handle it — the chassis.
This is the HD version of the Raptor 4x4 tubular sliders: 60x3 mm tube with an additional outer tree slider bar, bolted to the frame at four points.
TUBE Ø 60 x 3 mm | MOUNTING 4 chassis points | FINISH Black powder coat |
Key benefits
- Four chassis mounting points — loads go into the frame rather than into the body sills. That is the line between real protection and a decorative bar.
- 60x3 mm tube — a 3 mm wall on a 60 mm tube gives a section that will genuinely carry the truck leaning on an obstacle.
- Outer tree slider bar — keeps trunks, rock edges and rut walls away from your doors and arches.
- Hi-Lift jacking point — the design allows for lifting the vehicle by the slider, which is worth a lot where there is no way to get a jack under an axle.
- Easier entry — with a lift and bigger tyres that stops being a detail, especially for rear passengers.
- Powder coated finish — more abrasion resistant than ordinary paint.
What is included
A pair of sliders together with all the hardware needed for installation.
Technical data
- Type: HD tubular rock sliders
- Material and section: 60 x 3 mm steel tube
- Additional outer reinforcing tube (tree slider)
- Mounting: 4 points on the vehicle chassis
- Finish: black powder coat
- Weight: 27 kg
- Application: Toyota Land Cruiser Prado KZJ 90
- Manufacturer: Raptor 4x4 (Saglietti S.r.l.), part number 16042
Who it is for. Anyone taking a Prado 90 where there are rocks, roots and tight forest tracks — places where the sides of the truck are as exposed as the bumpers. It suits expedition builds and working vehicles where Hi-Lift recovery matters too.
Fitting notes
Installation uses four chassis points and the supplied hardware. Plan for a ramp or a pit and a second pair of hands — the set weighs 27 kg. Our 4x4 workshop can fit them for you if you would rather not do it yourself.
Why choose it
- HD version with the extra outer bar, not a cosmetic step.
- Built to take a Hi-Lift under load.
- Concrete numbers: 60x3 mm, four mounting points, 27 kg.
Building a Prado 90 for expedition use? Order the sliders alongside the rest of your underbody protection and we will help you sequence the work.
Frequently Asked Questions
Do they bolt to the chassis or to the body?
To the chassis, at four points, so loads never go through the rocker panel sheet metal.
Can I lift the vehicle with a Hi-Lift on these sliders?
Yes, the design allows for it.
Is mounting hardware included?
Yes, the distributor states that all necessary mounting components are supplied.
What tube are they made from?
60 mm diameter tube with a 3 mm wall, plus an additional outer tree slider bar. The whole assembly is black powder coated.
How heavy is the set?
27 kg — plan on a lift and a second person for installation.
