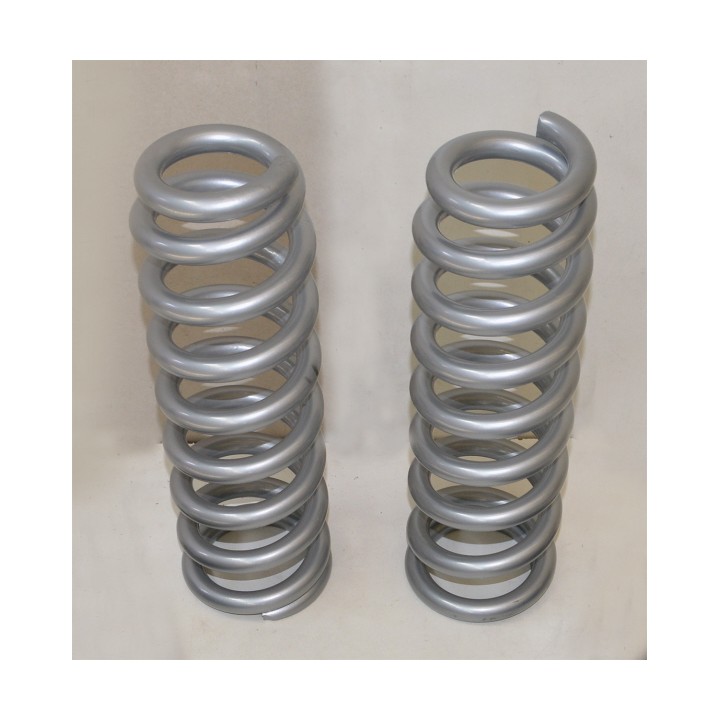

Front Lift Springs +40 mm Toyota Land Cruiser KZJ90/95 – Raptor 4x4 (RAP-16141)

On a Prado 90/95 the front end is usually the first to give up. Add a steel bumper, a winch and a skid plate, and after a few seasons the original coils simply stop holding ride height — the truck sits nose-down and the tyre starts hunting for the inner arch at full lock and full compression.

This Raptor 4x4 set is aimed squarely at that. It lifts the front axle by 40 mm on a medium-rate spring, so you get the clearance and the arch space back without turning the Prado into a light truck.

Key benefits

• 40 mm of lift on the front axle — more clearance under the front diff and more room in the wheel arch, which in practice means less rubbing at full articulation.
• Medium rate (taratura media) — tuned for a truck that still does tarmac miles but carries off-road hardware; it is not the stiffest coil in the Raptor range.
• Lifetime manufacturer guarantee against sagging — if the coil settles over time, that is the maker’s problem, not yours.
• Silver finish — the only version offered, so both sides of the truck match.

Technical data

• Manufacturer part number: 16141
• Manufacturer: Raptor 4x4 (Saglietti S.r.l., Italy)
• Application: Toyota Land Cruiser KZJ 90/95
• Axle: front, supplied as an axle set
• Lift: +40 mm (+4 cm)
• Rate: medium
• Colour: silver

This is for the KZJ90/95 owner who actually uses the truck: green-laning, long trips loaded up, winter runs with a roof rack and a full tool kit. If your Prado already wears a heavier front bumper or a winch and the nose sits lower than the tail, this set restores the stance and leaves headroom for more kit.

Fitting notes

Springs are only half the story — for a 40 mm lift to work properly, pair them with dampers built for the same ride height. Raptor 4x4 covers the KZJ90/95 with both oil/gas units (16151 front, 16152 rear) and monotube units (16153 adjustable front, 16154 rear). Our workshop builds off-road suspension every week and can help you spec the full set.

Why buy this

• A specific, manufacturer-confirmed 40 mm lift instead of a vague "lift kit" claim.
• Lifetime guarantee against sagging — unusual at this price point.
• Part of the catalogued Raptor 4x4 KZJ90/95 family, so the rest of the suspension is easy to match.

If you are building the lift from scratch, start with the coils — and talk to us about the dampers.

Frequently Asked Questions

How much lift does this set give at the front?

40 mm (4 cm) — that is how the springs are catalogued by the manufacturer under part number 16141.

Is this the front or the rear set?

Front. The matching rear springs are a separate Raptor 4x4 part number, 16142.

Do I need new shock absorbers as well?

Raptor 4x4 lists dampers for the KZJ90/95 built for the same lift: oil/gas 16151 (front) and 16152 (rear), plus monotube 16153 (adjustable front) and 16154 (rear). Matching dampers to the new ride height is standard practice on any lift.

What warranty does the manufacturer give?

A lifetime guarantee that the spring will hold its dimension, i.e. against sagging.

What colour are the springs?

Silver only — it is the sole finish offered for this model.
