Raptor 4x4
Reference: RAP-16142
Coil springs

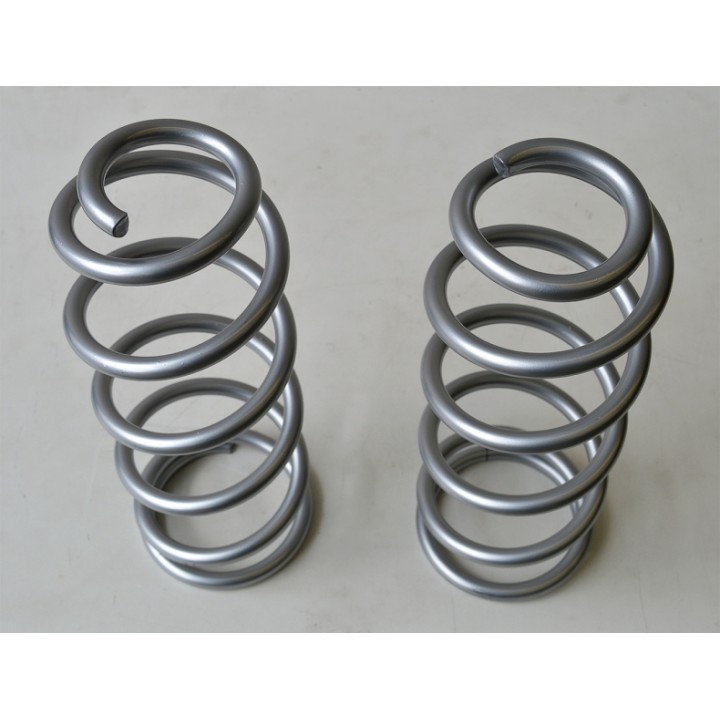

Rear Lift Springs +40 mm Toyota Land Cruiser KZJ90/95 Raptor 4x4
Raptor 4x4 rear coil spring set that lifts the back of a KZJ90/95 Land Cruiser by 40 mm. The medium rate copes with luggage, a towbar and a spare on the tailgate, and the springs carry a lifetime manufacturer guarantee against sagging. Silver finish.
Rear Lift Springs +40 mm Toyota Land Cruiser KZJ90/95 – Raptor 4x4 (RAP-16142)
A loaded Prado 90/95 gives itself away on the first speed bump. Two weeks of luggage, a jerry can, a fridge, maybe a towbar and a trailer, and the rear drops so far that the suspension is working on whatever travel is left while the headlights point at the treetops.
This Raptor 4x4 rear spring set lifts the back axle by 40 mm and gives you back the travel that tired original coils no longer have. The medium rate keeps the truck usable day to day, but stops it squatting under load.
Lift +40 mm | Axle rear | Rate medium |
Key benefits
- 40 mm of lift at the rear — clearance under the rear axle and a better departure angle, which in practice means less chance of grounding the rear bumper coming off an obstacle.
- Medium rate (taratura media) — chosen for a truck that carries weight rather than air; the rear holds its height with the load area full.
- Lifetime manufacturer guarantee against sagging — cover against the classic rear-spring failure mode after a season of hauling.
- Silver finish — the only version offered, matching the front set 16141 from the same maker.
Technical data
- Manufacturer part number: 16142
- Manufacturer: Raptor 4x4 (Saglietti S.r.l., Italy)
- Application: Toyota Land Cruiser KZJ 90/95
- Axle: rear, supplied as an axle set
- Lift: +40 mm (+4 cm)
- Rate: medium
- Colour: silver
A good fit for a Prado that travels fully loaded, tows, or carries a heavy spare and a rear bumper. If the tail visibly drops once the truck is packed and the suspension keeps hitting the bump stops, this is the part to change.
Fitting notes
For an even lift, the rear coils are normally combined with the front set 16141 and with dampers built for the same ride height — Raptor 4x4 offers oil/gas (16151/16152) and monotube (16153/16154) options for the KZJ90/95. We are happy to help you spec the whole package; our workshop assembles this kind of suspension routinely.
Why buy this
- A catalogued 40 mm figure, not a vague "about two inches".
- Lifetime manufacturer guarantee against sagging.
- Direct match with the Raptor 4x4 front springs and dampers for the same vehicle.
If your Prado squats under load, the rear coils are the simplest place to start — get in touch if you want to do the whole axle at once.
Frequently Asked Questions
Are these front or rear springs?
Rear. The manufacturer catalogues them as “MOLLE POSTERIORI +4 CM TOYOTA KZJ90/95” under part number 16142; the fronts are a separate number, 16141.
How much do they lift the rear?
40 mm (4 cm) according to the manufacturer’s catalogue.
Will they cope with a permanently loaded truck?
They are a medium rate (taratura media) — the mid option in the Raptor 4x4 range, intended for a vehicle that carries weight rather than one that runs empty.
What warranty does the manufacturer give?
A lifetime guarantee that the spring holds its dimension, i.e. against sagging.
Do they match the Raptor 4x4 dampers for this vehicle?
Yes — the maker lists KZJ90/95 dampers for the same ride height: oil/gas 16151/16152 and monotube 16153/16154.
