Raptor 4x4
Reference: RAP-16152
Shocks

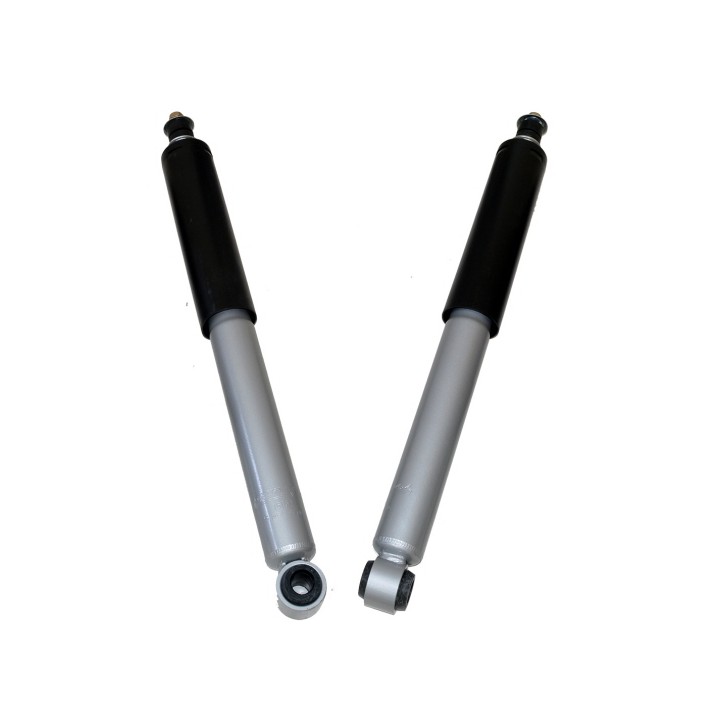

Rear Shock Absorber +40 mm Toyota Land Cruiser KZJ90/95 Raptor
Raptor 4x4 rear damper catalogued for a 40 mm lift on the KZJ90/95 Land Cruiser. Double-acting mixed oil/gas construction, medium valving, silver finish. Sold individually, so a full axle takes two units.
Rear Shock Absorber +40 mm Toyota Land Cruiser KZJ90/95 – Raptor 4x4 (RAP-16152)
The rear of a Prado works hardest: luggage, a towbar, a spare on the tailgate and more travel than the front. Leave tired factory dampers back there after a lift and the truck starts floating over motorway undulations, while on gravel the rear axle skips instead of staying in contact with the surface.
Raptor 4x4 catalogues this damper specifically for a 40 mm lift on the KZJ90/95 rear axle — its length and working range are matched to the new ride height, not the factory one.
Axle rear | For lift +40 mm | Type oil/gas | Supplied 1 unit |
Key benefits
- Made for a 40 mm lift — full suspension travel is preserved after the lift and the damper does not become the droop limiter.
- Double-acting mixed oil/gas construction — less oil aeration during sustained work, so damping stays predictable on corrugations and gravel.
- Medium valving — matched to a truck used on road and off it, without stiffening the rear more than necessary.
- 2 kg unit weight — figure stated by the manufacturer.
Technical data
- Manufacturer part number: 16152
- Manufacturer: Raptor 4x4 (Saglietti S.r.l., Italy)
- Application: Toyota Land Cruiser KZJ 90/95
- Axle: rear
- Designed for: +40 mm (+4 cm) lift
- Type: double-acting damper, mixed oil/gas
- Valving: medium
- Supplied: individually, 1 unit
- Weight: 2 kg
- Colour: silver
The obvious choice if you are fitting Raptor 4x4 rear springs 16142, or already run a 40 mm lift and want the rear damping sorted. It also makes sense on a truck that regularly carries weight, where the difference between a worn and a fresh damper shows up first.
Fitting notes
The listed price covers one unit, so order two for the rear axle. Replacing in pairs per axle is the rule — otherwise one side damps differently from the other, which a loaded truck reveals on the first bend. If you are unsure whether your springs suit this range, ask us before you buy.
Why buy this
- A clearly defined job: KZJ90/95 rear axle with a 40 mm lift.
- Double-acting oil/gas construction instead of the simplest plain oil unit.
- A direct complement to the front 16151 and the 16141/16142 springs from the same catalogue.
Finishing the lift? Take two for the rear and pair them with the front 16151.
Frequently Asked Questions
Is one unit or a pair included in the price?
One unit — the manufacturer states the damper is sold individually. A rear axle needs two.
What lift is it intended for?
A +40 mm (+4 cm) lift on the rear axle of the Land Cruiser KZJ 90/95, as catalogued by the manufacturer under 16152.
How does it differ from the monotube version in the same range?
This one is a double-acting mixed oil/gas damper with medium valving. The rear monotube unit is a separate Raptor 4x4 part number, 16154.
How much does one unit weigh?
2 kg according to the manufacturer.
Does it suit the Raptor 4x4 rear lift springs?
Yes — the +40 mm rear coils for the KZJ90/95 are part number 16142 from the same catalogue.
