Raptor 4x4
Reference: RAP-60571
Strefa Suzuki Jimny JB74

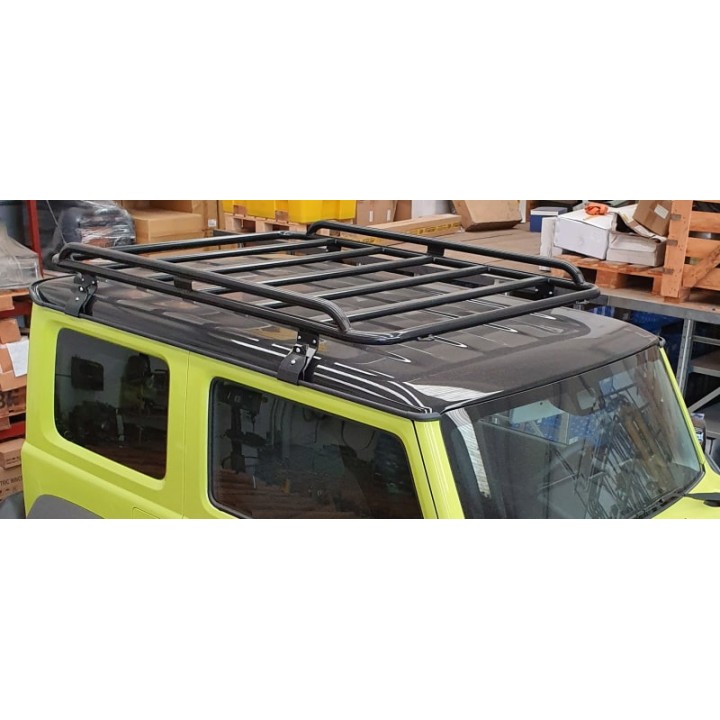

RAPTOR 4x4 Roof Rack for Suzuki Jimny JB74 (2018+)
Heavy-duty, expedition-grade RAPTOR 4x4 roof rack made specifically for the Suzuki Jimny JB74 (2018+). Welded 35x2 mm steel tube frame, sandblasted and finished in black powder coat. Mounts to the original factory roof points - no drilling required. A full-length loading platform for gear, jerry cans or a rooftop tent.
Once the Jimny's boot runs out of space, the roof is the only sensible place left for the rest of your gear. The RAPTOR 4x4 roof rack for the Suzuki Jimny JB74 is a welded steel platform built for real off-road loads, not just for looking good in a car park.
| Manufacturer RAPTOR 4x4 (Italy) |
Fitment Suzuki Jimny JB74 (2018+) |
| Material Steel, 35×2 mm tube profile |
Finish Sandblasted + black powder coat |
| Weight approx. 20 kg |
Mounting 4-point, factory roof mounts, no drilling |
Closely spaced cross bars form a full loading platform along almost the entire roof, so cargo - jerry cans, a tool box, or traction boards - sits supported across its whole footprint instead of balancing on two thin bars. Thick-walled 35×2 mm tubing and welded corner brackets give the frame the rigidity needed for rough tracks and heavier side loads off-road. The surface is sandblasted before powder coating, which improves paint adhesion and corrosion resistance compared with coating straight onto raw steel.
Who it's for
Built for drivers who pack their Jimny for longer off-road trips and expeditions, once boot space runs out. It works well as a base for a rooftop tent, a fuel or water jerry can, a cargo box, or traction boards (e.g. MaxTrax) carried on the roof instead of inside the cabin.
Fitting and notes
The rack bolts to the Suzuki Jimny JB74's original factory roof mounting points - no extra holes need to be drilled into the bodywork. All the hardware needed for installation is included. Given the weight of the rack itself (approx. 20 kg) and the need to torque the mounting points correctly, we recommend having it fitted at a workshop - at Szekla4x4 we can install the rack and re-check the mounting torque after the first few kilometres.
Why it's worth it
- Solid, welded 35×2 mm steel tube frame instead of thin-wall profiles
- Sandblasted before powder coating - better paint adhesion and corrosion resistance
- Mounts to the factory roof points - no drilling
- Full, dense loading platform along almost the whole roof, not just two bars
- Purpose-fit for the Jimny JB74 (2018+) - not a generic universal rack
We can fit this rack for you at the Szekla4x4 workshop - just book the installation together with your order.
FAQ
Do you need to drill the Jimny's roof to fit this rack?
No. It mounts to the original factory roof mounting points on the JB74.
Does this rack fit the older Jimny (JB23/JB43)?
No. This model (RAPTOR 4x4, manufacturer code 60571) is made specifically for the new Jimny JB74 (2018+). The manufacturer offers a separate, different tubular roof rack for the older generation.
How much does the rack itself weigh?
Approximately 20 kg - worth factoring into your total roof load together with your cargo.
Can a rooftop tent be mounted on it?
The dense, full-length platform makes it a suitable base for a rooftop tent. Before buying a specific tent, it's worth checking its weight against your vehicle's permitted roof load.
Does the kit include all the mounting hardware?
Yes, the kit includes everything needed to install the rack.
