Raptor 4x4
Reference: RAP-RP4221080010
Bump Stops
Front Bump Stops Suzuki Samurai, Axle Set, Raptor 4x4

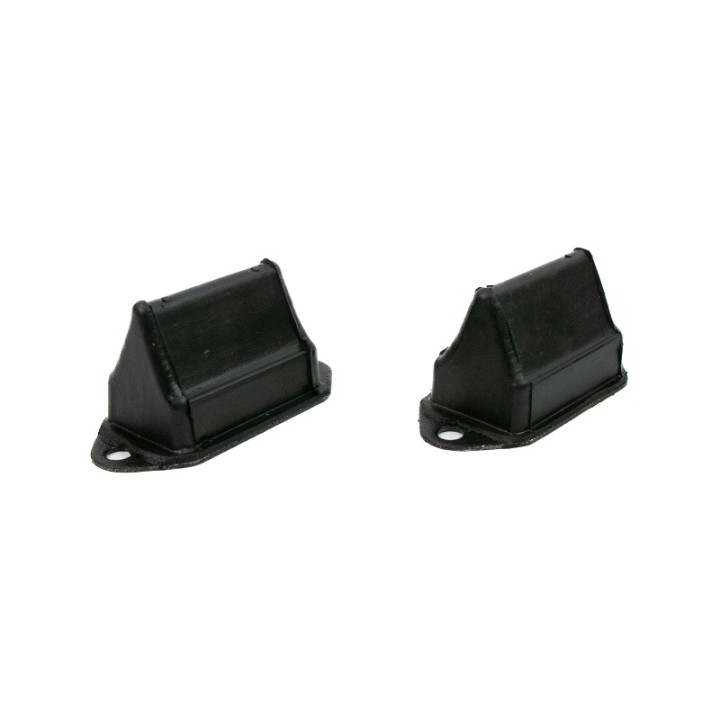

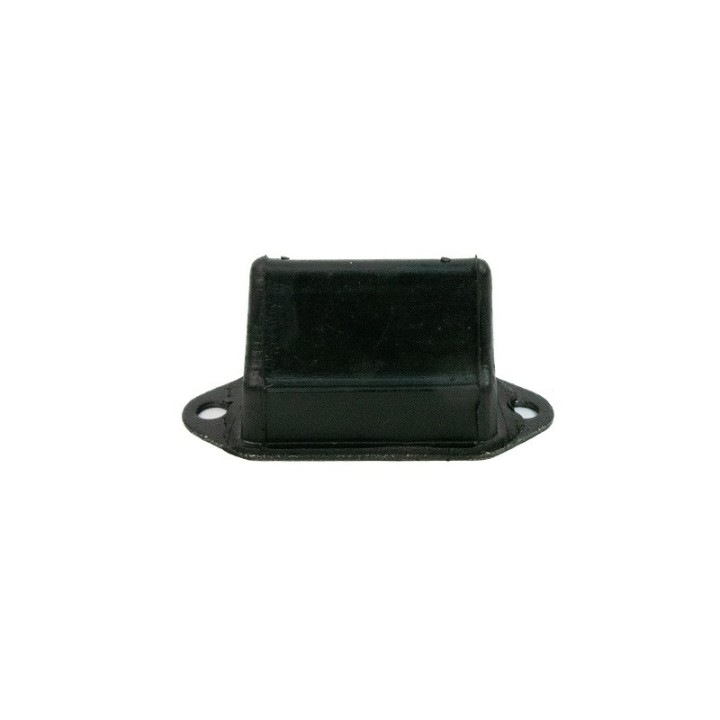

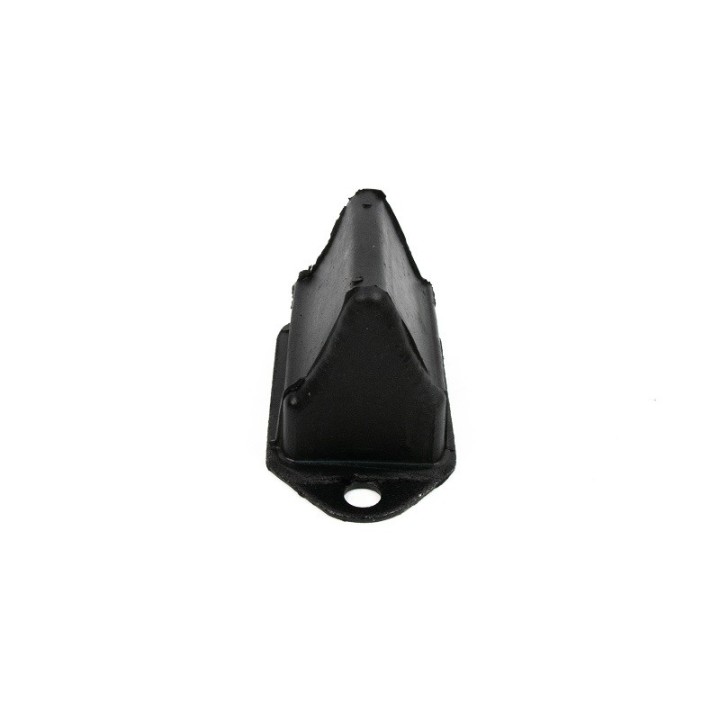

A pair of Raptor 4x4 front bump stops for the Suzuki Samurai — one axle set. A replacement for the original part, fitting the factory locations. Working stops limit suspension travel and shield the springs and mounts from bottoming impacts.
Front Bump Stops, Suzuki Samurai — Axle Set (Raptor 4x4)
Front bump stops on a Samurai work harder than most people realise: every pothole, every drop off a high edge and every landing after a rut ends on them. Once the rubber crumbles the travel limiter effectively stops existing, and at full compression the spring meets the chassis metal to metal — you hear it, you feel it through the wheel, and you see it later in tired mounts.
This is a pair of Raptor 4x4 front bump stops, which is what one axle takes. The manufacturer supplies them as a replacement for the original part, so they go into the factory locations with nothing to modify.
Fits Suzuki Samurai, front | Coverage axle set (2 pcs) | Type OE replacement | Weight 0.371 kg |
Key benefits
- Supplied as a pair — both sides of the front axle in one go.
- Replacement for the original part — no drilling, welding or trimming.
- A travel limiter that actually works — protects springs, dampers and mounts from bottoming impacts.
- Easy to overlook — and its absence ruins much more expensive parts.
What is in the set
- 2 x front bump stop (one axle)
Technical data
- Part number: RAP-RP4221080010 (manufacturer code RP4221080010)
- Manufacturer: Raptor 4x4 (Saglietti S.r.l.)
- Application: Suzuki Samurai, front axle
- Coverage: pair, one axle
- Type: replacement for the original part
- Set weight: 0.371 kg
Who it is for
For Samurai owners after years of broken tarmac, for anyone rebuilding the front suspension, and for those who want the whole axle sorted while the springs are out. Look underneath: if the bracket carries bare metal or a stub of perished rubber, this set is overdue.
Fitment notes
Front and rear bump stops differ and carry separate part numbers, so match the set to the axle. Clean the bracket before fitting — a new stop will not sit square on rust and the remains of old rubber.
Why it is worth it
- A small outlay that protects the front springs and mounts.
- An axle set, so there is no second side left to buy.
- Simple fitting in the factory locations, with no modification.
If the front suspension is already apart, this is one of the easiest jobs to tick off.
Frequently Asked Questions
How many are in the set?
Two pieces — an axle set, as described by the manufacturer.
Will they fit the rear axle?
No. Rear bump stops are a separate part number from the same manufacturer.
Is any modification needed to fit them?
No. The manufacturer supplies them as a replacement for the original part, using the factory mounting points.
What does the set weigh?
The manufacturer states 0.371 kg for the pair.
