Raptor 4x4
Reference: RAP-RPRJ9113B
Control Arms

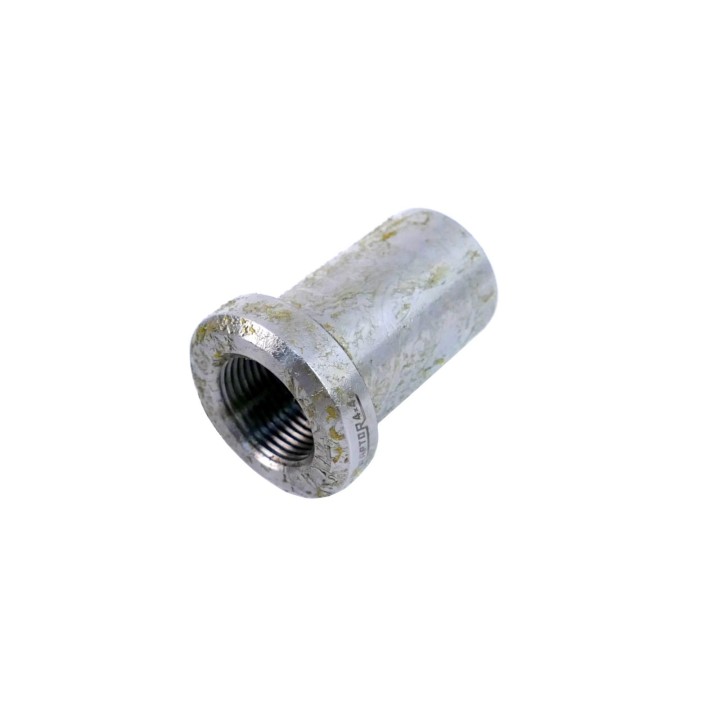

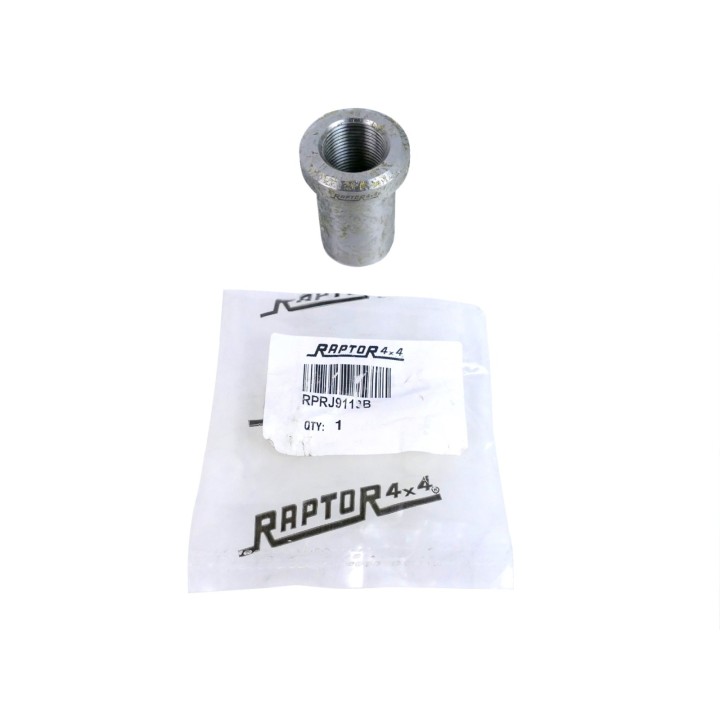

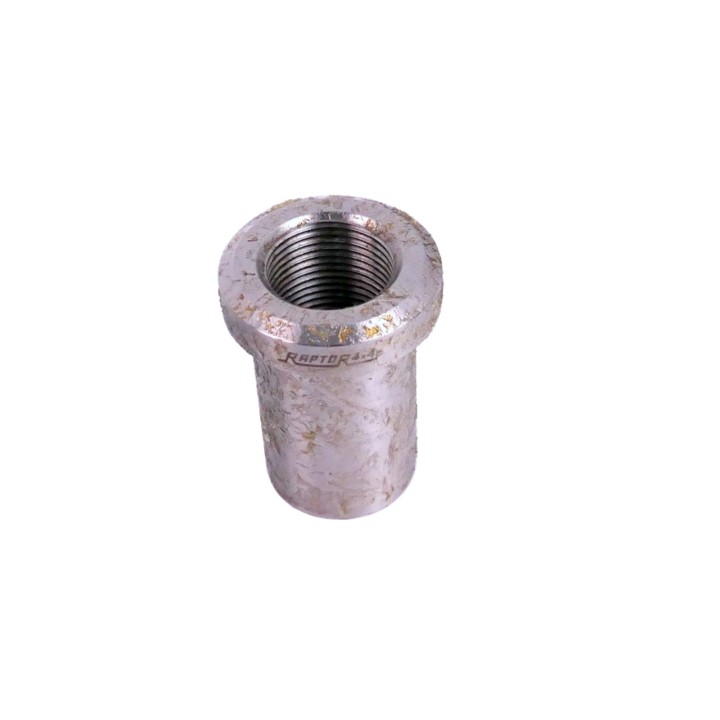

Weld-In Steel Bushing for Raptor Joint 2.5'' Uniball – 1'' Thread
A threaded steel bushing to be welded into the arm tube, made for the Raptor Joint 2.5'' uniball end (RAP-RPRJ9113). It stands 57 mm tall, has a stepped 31.7 / 41.7 mm outside diameter and a 1'' right-hand thread. This is the part that turns a plain tube into an arm with an adjustable end.
Weld-In Steel Bushing for Raptor Joint 2.5'' Uniball – 1'' Thread
A uniball end has nothing to hold on to unless the arm has a threaded socket. This bushing is that socket – you weld it into the tube, and only then can the joint be screwed in and the arm length adjusted.
It is made for one specific size: the Raptor Joint 2.5'' end, part RAP-RPRJ9113, with its 1'' right-hand thread. The stepped outside diameter makes it easier to seat and align the bushing in the tube before welding.
Thread 1'' right hand | Height 57 mm | Outside dia. 31.7 / 41.7 mm |
Key benefits
- A ready-made threaded socket – no need to turn your own insert or improvise with nuts; you weld in a part with known dimensions.
- Stepped diameter – 31.7 mm and 41.7 mm give the bushing a natural seat in the tube and help with alignment before welding.
- Matched to one specific end – the 1'' right-hand thread matches the shank of the Raptor Joint 2.5'' uniball, so there is no room for a mismatch.
- Steel construction – designed to be welded, that is, to become a permanent part of the arm.
Technical data
- Height: 57 mm
- Outside diameter: 31.7 mm / 41.7 mm (stepped)
- Thread: 1'' right hand
- Material: steel
- Intended for: Raptor Joint 2.5'' uniball end (RAP-RPRJ9113)
- Catalogue weight: 0.79 kg
- Manufacturer part number: RPRJ9113B
- Manufacturer: Raptor 4x4 (Saglietti S.r.l.)
Who it is for: workshops and builders making adjustable control arms from scratch, and anyone converting an existing arm to 2.5'' uniball ends. It also works as a replacement when the old insert had to be cut out along with a damaged section of tube.
Installation notes
The bushing is welded into the arm tube – a job for someone with a welder who can keep everything concentric, because the whole arm depends on it. Mind the thread direction: 1'' right hand. If you are building an arm adjustable at both ends, the opposite end is usually left-hand threaded so you can change the length without disconnecting the joints.
Why it is worth it
- A straightforward way to turn plain tube into an arm with an adjustable end.
- Dimensions stated outright, so no guesswork when ordering.
- A genuine Raptor 4x4 part matched to the 2.5'' uniball.
If you are buying a Raptor Joint 2.5'' end, this is the piece to order alongside it.
Frequently Asked Questions
Which end does this bushing fit?
The Raptor Joint 2.5'' uniball end, part RAP-RPRJ9113. The bushing has a 1'' right-hand thread, matching that end's shank.
Does it fit the 2'' version?
No. The 2'' end (RAP-RPRJ9112SP) uses a 3/4'' thread and, according to the manufacturer's catalogue, ships with its own weld-in bushing.
How is it fitted?
It is welded into the control arm tube. The stepped 31.7 / 41.7 mm outside diameter helps seat and align it before welding.
What are the dimensions?
57 mm tall, 31.7 mm and 41.7 mm outside diameters, 1'' right-hand thread. Catalogue weight is 0.79 kg.
